3M Scotchlok Ring Nylon Insulated, MNG10-38R/SX

by 3M
No reviews
Original price $50.99 - Original price $50.99
Original price
$50.99
$50.99 - $50.99
Current price $50.99
Free shipping
3M Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).... Read more
Please allow 2 days for production.

Overview

3M

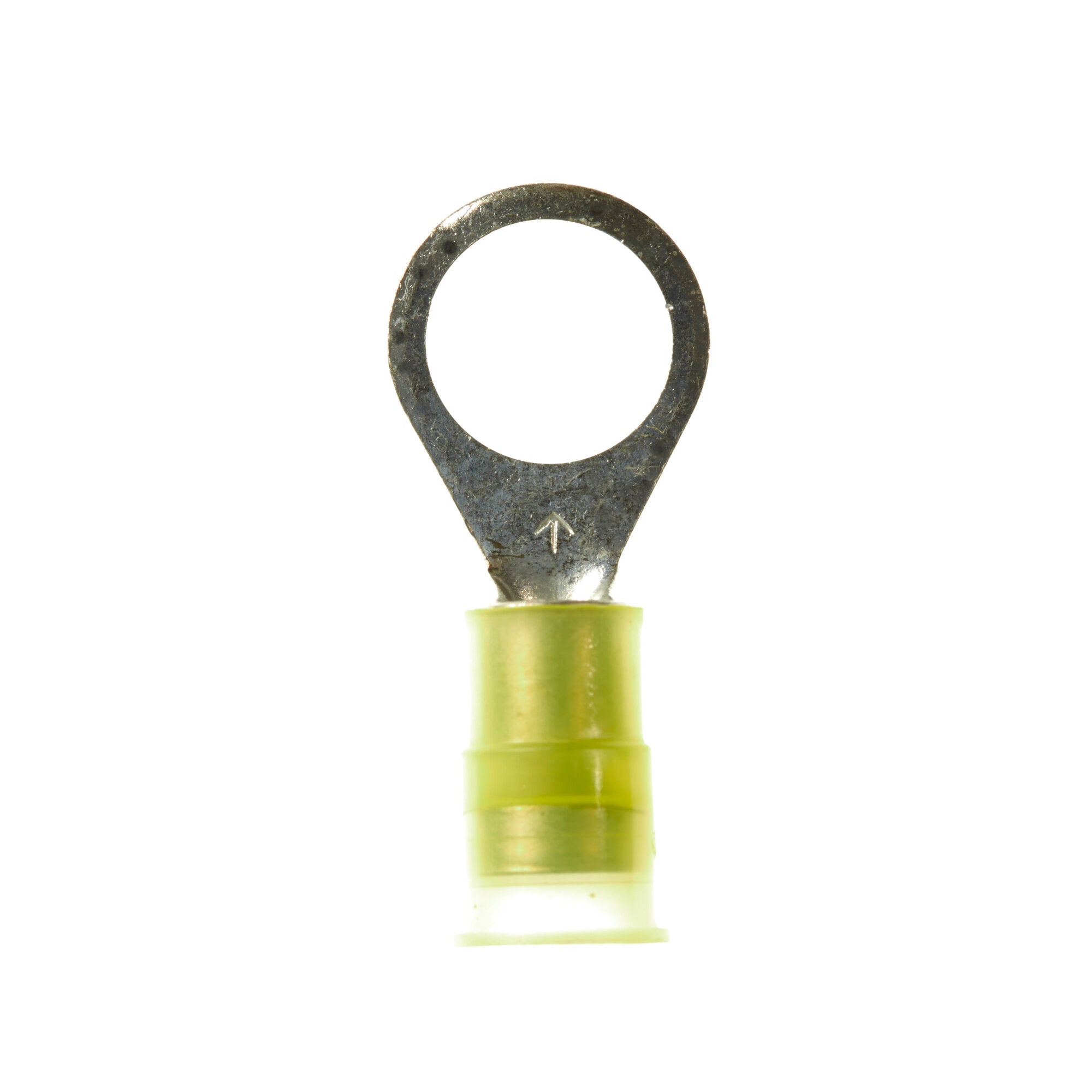

3M Scotchlok Ring Nylon Insulated, MNG10-38R/SX

3M Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Terminal Type
Ring
Disconnect Type
Non Pertinent
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Connection Width (Imperial)
0.375 in
Connection Width (Metric)
9.525 mm
Maximum Conductor Size (Imperial)
10 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
1.26 in
Overall Length (Metric)
32 mm
Overall Width (Imperial)
0.54 in
Overall Width (Metric)
13.71 mm
Maximum Conductor Size Imperial
10 AWG
Maximum Conductor Size Metric
5.26
Minimum Conductor Size Imperial
12 AWG
Minimum Conductor Size Metric
3.31 mm²
Overall Length Imperial
1.26
Material and Composition
Insulation Material
Nylon
Color and Appearance
Product Color
Yellow
