Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Stud size #10
Accommodates wire sizes 16 to 14 AWG
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires

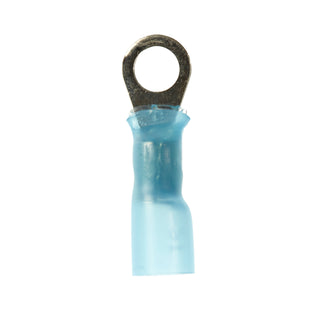

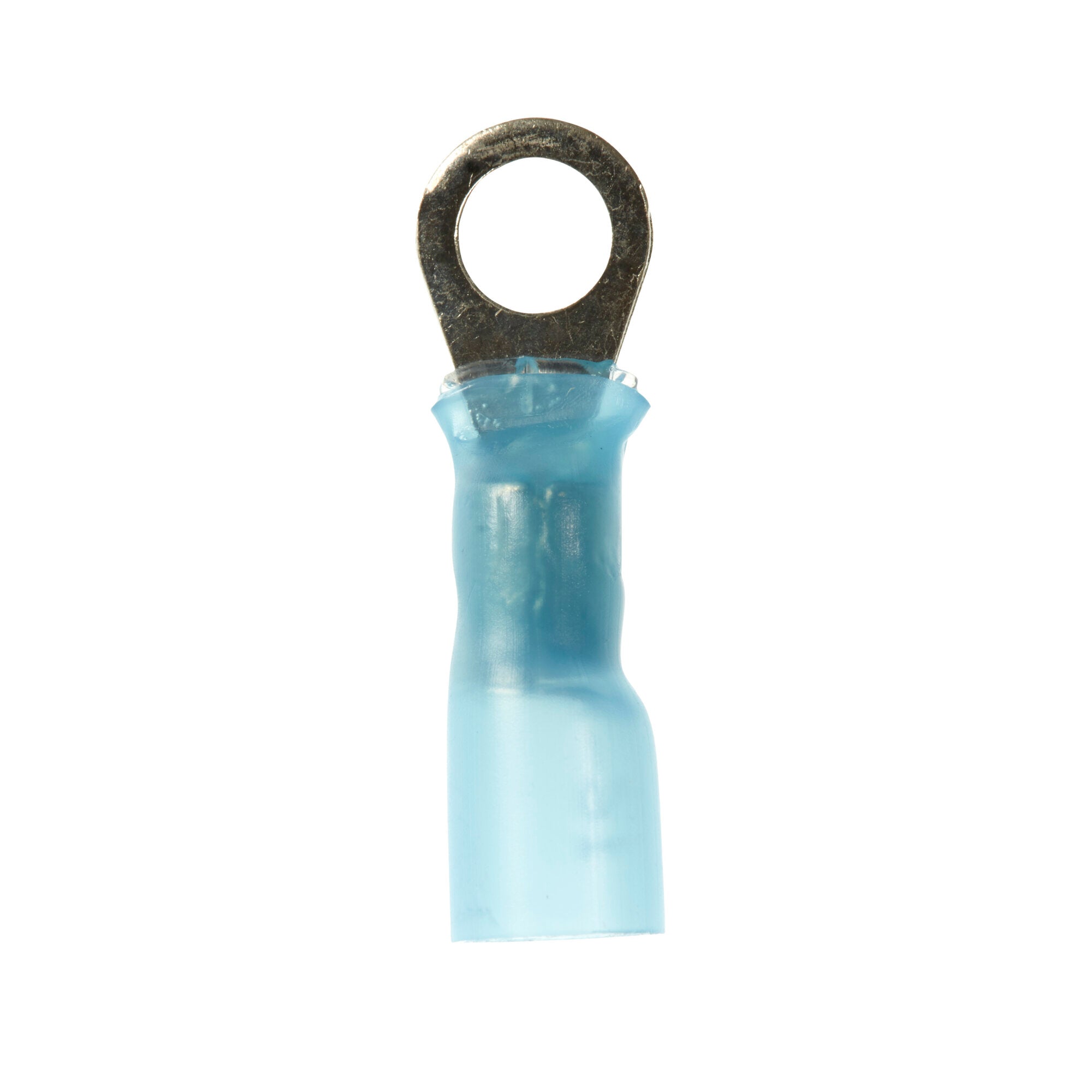

3M™ Scotchlok™ Color-Coded Heat Shrink Large Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Standard Heat Shrink Large Ring Tongue Terminal is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The Heat Shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.
