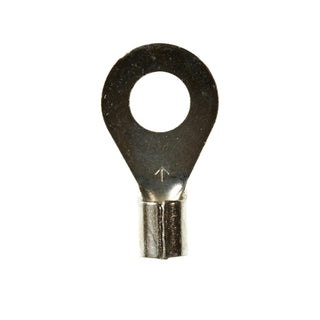

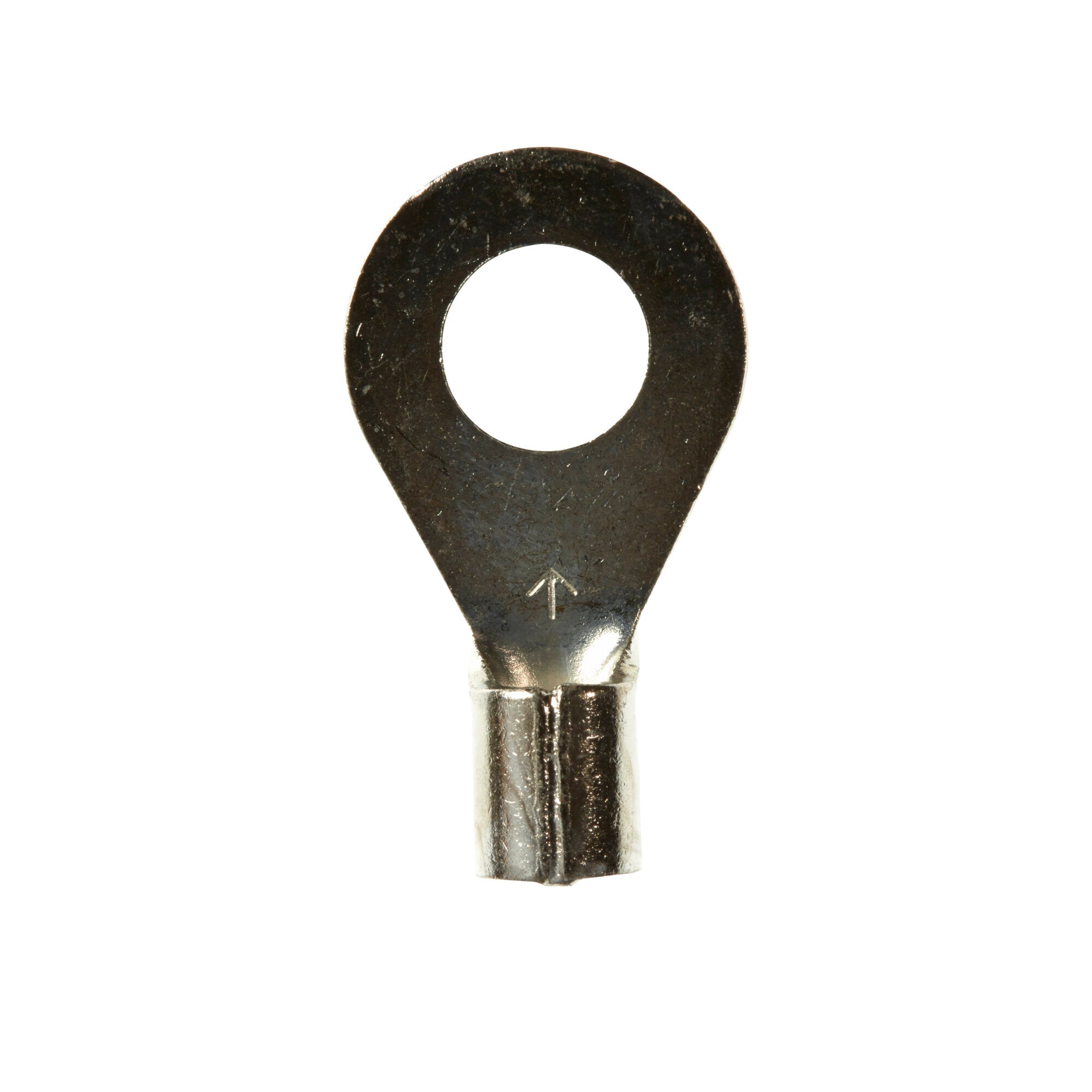

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M10-14R/SK, Stud Size 1/4

Features

500 per order, made to order

Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Beveled mouth offers easy insertion of wires

Standard-style ring tongue fits around the stud

Stud size 1/4 in

Accommodates wire sizes 12 to 10 AWG

Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

600V-rated for building wire and 1000V for signs, fixtures or luminaires

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
