3M Trizact Hookit Film Disc 568XA, 3MIL, 5 in x NH, Die 500X

by 3M
No reviews
Original price $585.99 - Original price $585.99
Original price
$585.99
$585.99 - $585.99
Current price $585.99
Free shipping
3M Trizact Hookit Film Disc 568XA uses microreplication technology by 3M along with cerium oxide particles formed into tiny pyramids of abrasive mineral and then coated on a film backing. As these pyramids wear, fresh,... Read more

Overview

3M

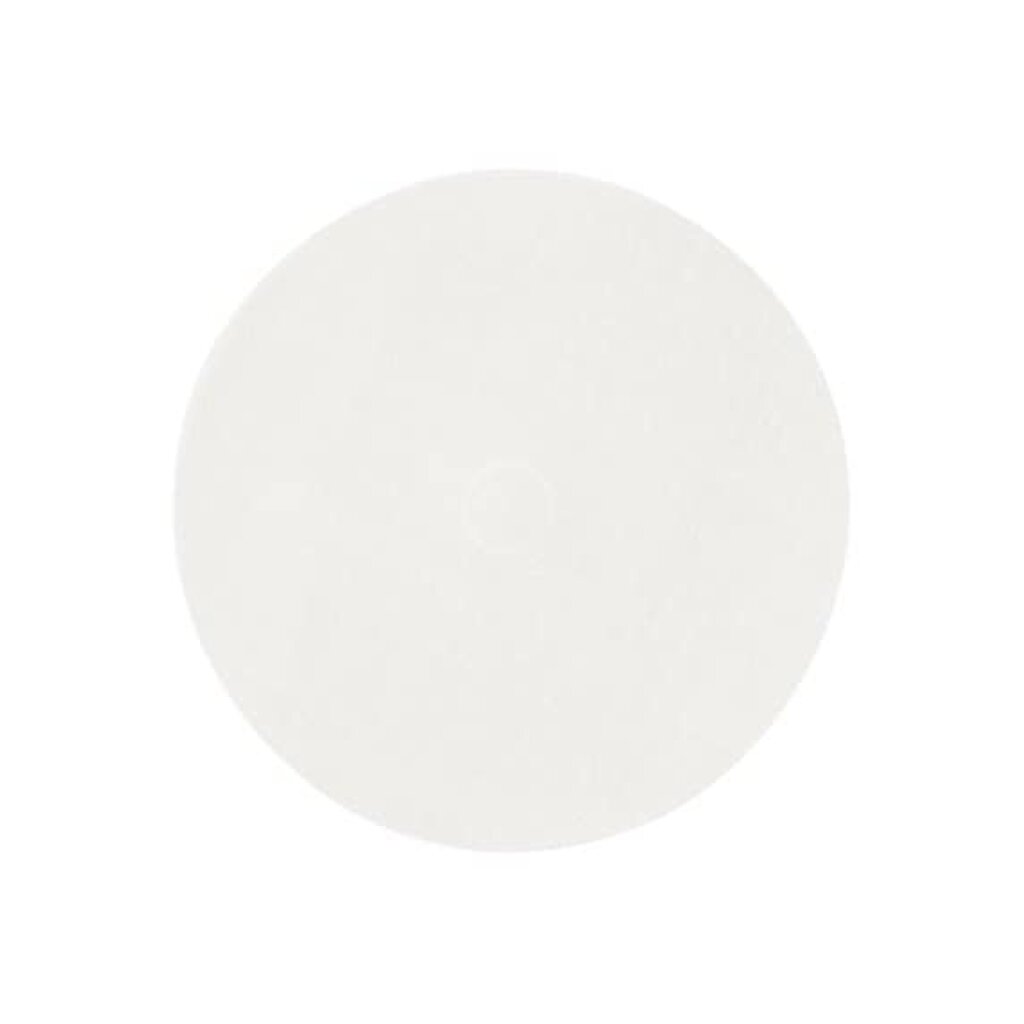

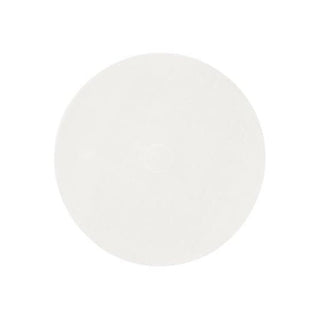

3M Trizact Hookit Film Disc 568XA, 3MIL, 5 in x NH, Die 500X

3M Trizact Hookit Film Disc 568XA uses microreplication technology by 3M along with cerium oxide particles formed into tiny pyramids of abrasive mineral and then coated on a film backing. As these pyramids wear, fresh, sharp mineral is continually exposed to produce a consistent cut and a predictable, fine finish when used either wet or dry.

Our 3M™ Trizact™ Hookit™ film discs are suitable for use on a variety of solid surfaces, topcoats, and to accommodate most finish and process requirements. This disc is manufactured with the 3M™ Hookit™ attachment system for quick mounting and removal and to hold the disc securely in place during use. Hookit™ discs conveniently and firmly attach to a hook-and-loop backup disc pad (sold separately) on rotary or random orbital tools, can be removed cleanly and easily, and can be re-used again and again for the life of the disc.

Unlike conventional abrasives, 3M™ Trizact™ discs start sharp and stay sharp, resulting in more predictable finishes and improved, consistent quality. 3M™ Trizact™ discs last longer than conventional discs and provided precise finish control such that operators can reduce grade sequences, requiring fewer process steps and fewer abrasive products. Three-dimensional structures uniformly distributed over the entire surface ensure consistent performance and eliminate disc-to-disc variation.

Our 3M™ Trizact™ Hookit™ Film Disc 568XA uses cerium oxide abrasive mineral. Cerium oxide is an oxide of the rare earth metal, cerium. The average grain size of the particle is measured in nanometers in raw form, thus making it one of the most effective abrasives for final polishing steps on solid surfaces. It is heat resistant and effective as a polishing agent for glass mirrors, plate glass, crystal, television tubes, ophthalmic lenses, precision optics, precious, and semiprecious stone.

  • Proprietary 3M™ Trizact™ abrasives start sharp and stay sharp, resulting in more predictable finishes and improved, consistent results
  • Use wet or dry to create high gloss level for glass defect repair and solid surface finishing
  • Micron sized abrasive pyramids produce a high-gloss
  • Well suited for use on mini random orbital sanders to produce a polish-ready finish
  • Produces finer finishes than paper and film-backed abrasives

Product Details

General Information
Brand
Trizact™
Attachment Type
Hook & Loop
Country Of Origin
United States
California Residents
Dimensions and Specifications
Backing Thickness (Imperial)
3 mil
Maximum Speed
12000 rpm
Overall Diameter (Imperial)
5 in
Overall Diameter (Metric)
127 mm
Micron Grade
Non Pertinent
Other Details
Industries
Woodworking
Product Category
Coated Abrasives
Usage Information
Application
Sanding
Equipment - Machines
Random Orbital Sanders
Sub Applications
Finishing
Equipment Machines
Random Orbital Sanders
Material and Composition
Abrasive Material
Cerium Oxide
Backing Material
Film
Product Form
Disc
Color and Appearance
Product Color
White
