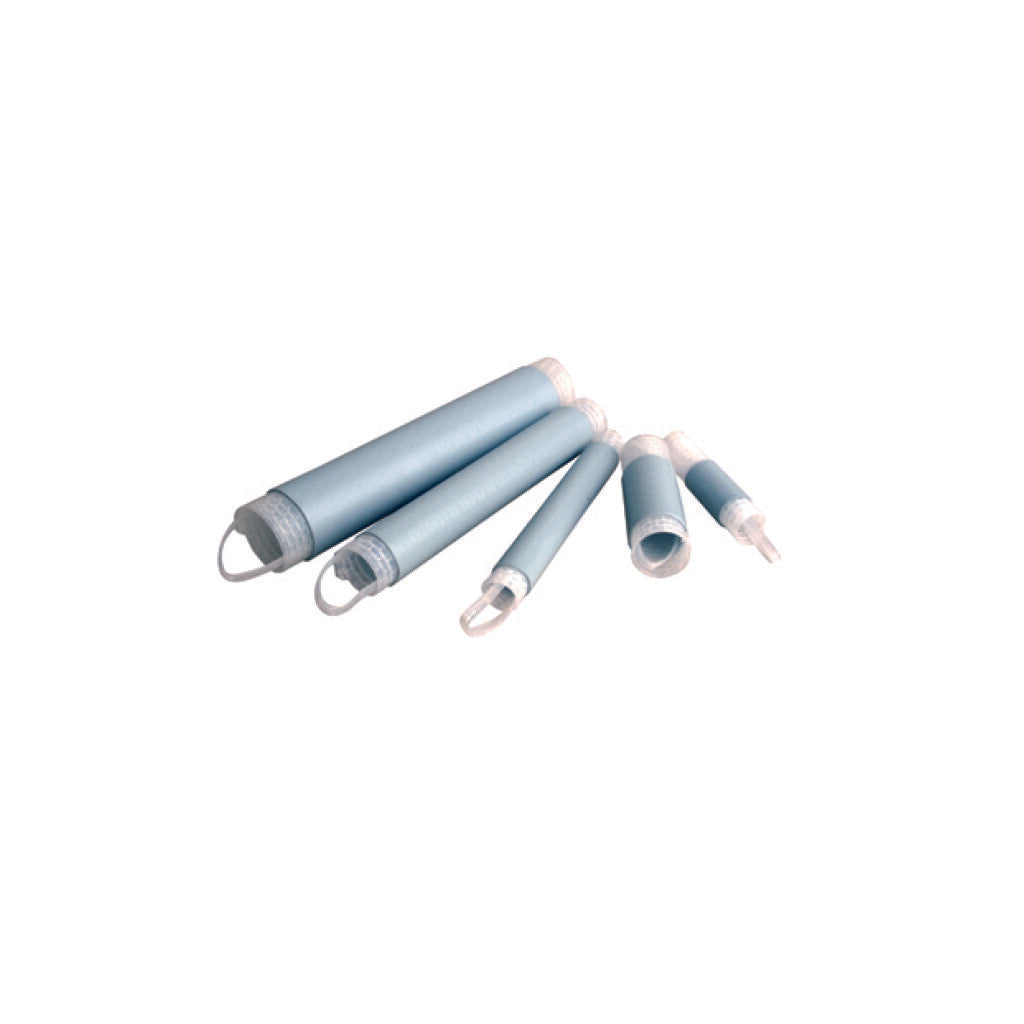

3M Cold Shrink Silicone Insulator 8445-7.5, 2-1/0 AWG (35-50 mm²)

by 3M
No reviews
Original price $219.99 - Original price $219.99
Original price
$219.99
$219.99 - $219.99
Current price $219.99
Free shipping
3M™ 8440 Series Cold Shrink Silicone Insulator is an insulating sleeve that is specially formulated from high temperature silicone rubber for moisture protection. It maintains resiliency and pressure, even after years of aging and exposure.... Read more
Please allow 2 days for production.

Overview

3M

3M Cold Shrink Silicone Insulator 8445-7.5, 2-1/0 AWG (35-50 mm²)

3M™ 8440 Series Cold Shrink Silicone Insulator is an insulating sleeve that is specially formulated from high temperature silicone rubber for moisture protection. It maintains resiliency and pressure, even after years of aging and exposure. This insulator ensures top moisture sealing for medium voltage, air insulated connectors and lugs. It offers resistance against acids, alkalis, fluid splashes, ozone, ultraviolet light and fire. This insulator is ideal for use in sheath repairs and electrical aircraft cables and it provides insulation for inline conductor transition connectors. RoHS 2011/65/EU Compliant.

Product Details

General Information
Brand
3M™
Cable Type
Solid Dielectric Cables
Model
Cold-shrink
Product Type
Splice
Splice Type
Cold Shrink
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
1 AWG
Conductor Sizes (Metric)
35 mm²
Inner Diameter After Shrink (Imperial)
0.37 in
Inner Diameter After Shrink (Metric)
9.4 mm
Inner Diameter Before Shrink (Imperial)
0.72 in
Inner Diameter Before Shrink (Metric)
18.3 mm
Maximum Conductor Size (Imperial)
1000 kcmil
Maximum Conductor Size (Metric)
50 mm²
Maximum Operating Temperature (Celsius)
260 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
500 Degree Fahrenheit
Minimum Conductor Size (Imperial)
2 AWG
Minimum Conductor Size (Metric)
35 mm²
Minimum Operating Temperature (Celsius)
-55 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-67 Degree Fahrenheit
Operating Temperature (Celsius)
-55 up to +260°C
Overall Diameter (Metric)
18.3 mm
Overall Length (Metric)
190 mm
Relaxed Tube Length
7.5 in
Relaxed Tube Length (Metric)
0.19 m
Voltage
1 kV
Voltage Application
Low Voltage
Wall Thickness After Shrinking
2.8 mm
Maximum Conductor Size Imperial
1000 kcmil
Maximum Conductor Size Metric
50 mm²
Minimum Conductor Size Imperial
2 AWG
Minimum Conductor Size Metric
35 mm²
Operating Temperature Celsius
-55 up to +260°C
Overall Length Imperial
0.0
Other Details
Cable Shielding
UniShield®
Halogen Free
No
Number Of Conductors
1
Shrink Ratio
2:1
With Inner Glue
No
Material and Composition
Conductor Material
Copper
Material
Silicone
Shelf Life
1080
Color and Appearance
Product Color
Gray
Certifications and Standards
UL Approval
No
