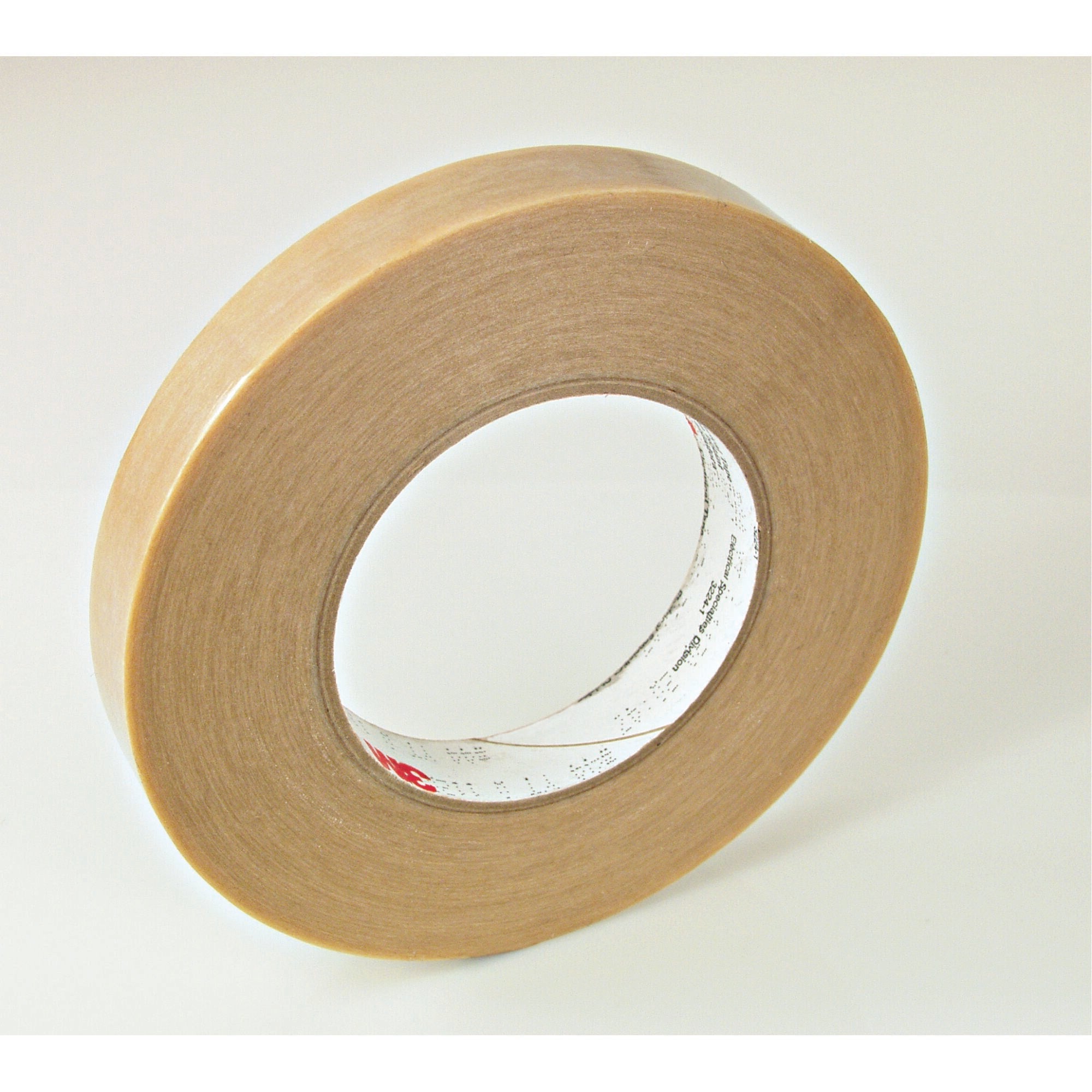

3M Composite Film Electrical Tape 44, 5/16 in x 90 yd, 3 in Paper Core

by 3M
No reviews
Original price $875.99 - Original price $875.99
Original price
$875.99
$875.99 - $875.99
Current price $875.99
Free shipping
3M Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands... Read more
This product is made to order. Please allow 22 days for production.

Overview

3M

3M Composite Film Electrical Tape 44, 5/16 in x 90 yd, 3 in Paper Core

3M Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 F (0 to 130 C).3M™ Composite Film Electrical Tape 44 features a combination of polyester web and polyester film coated with pressure sensitive rubber thermosetting adhesive. This tape is highly resistant to heat, oxidation, solvents and oils. This excellent dielectric strength tape is tough, puncture resistant and offers outstanding electrical properties. It's ideal for stick wound coils/transformers, as well as protecting start wires, leads, terminal strips, insulation paper and end turns. UL Listed and RoHS 2011/65/EU Compliant‎.
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Offers great electrical properties and is puncture-resistant
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • For protecting start wires, leads, terminal strips and insulation paper
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Adhesive Type
Thermosetting Rubber
Country Of Origin
United States
Lead Time
22 days
California Residents
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
130 Degree Celsius
Minimum Operating Temperature (Celsius)
0 Degree Celsius
Overall Width (Imperial)
0.31 in
Overall Width (Metric)
7.9 mm
Total Tape Thickness Without Liner (Imperial)
5.25 mil
Total Tape Thickness Without Liner (Metric)
0.13 mm
Material and Composition
Shelf Life
1825
