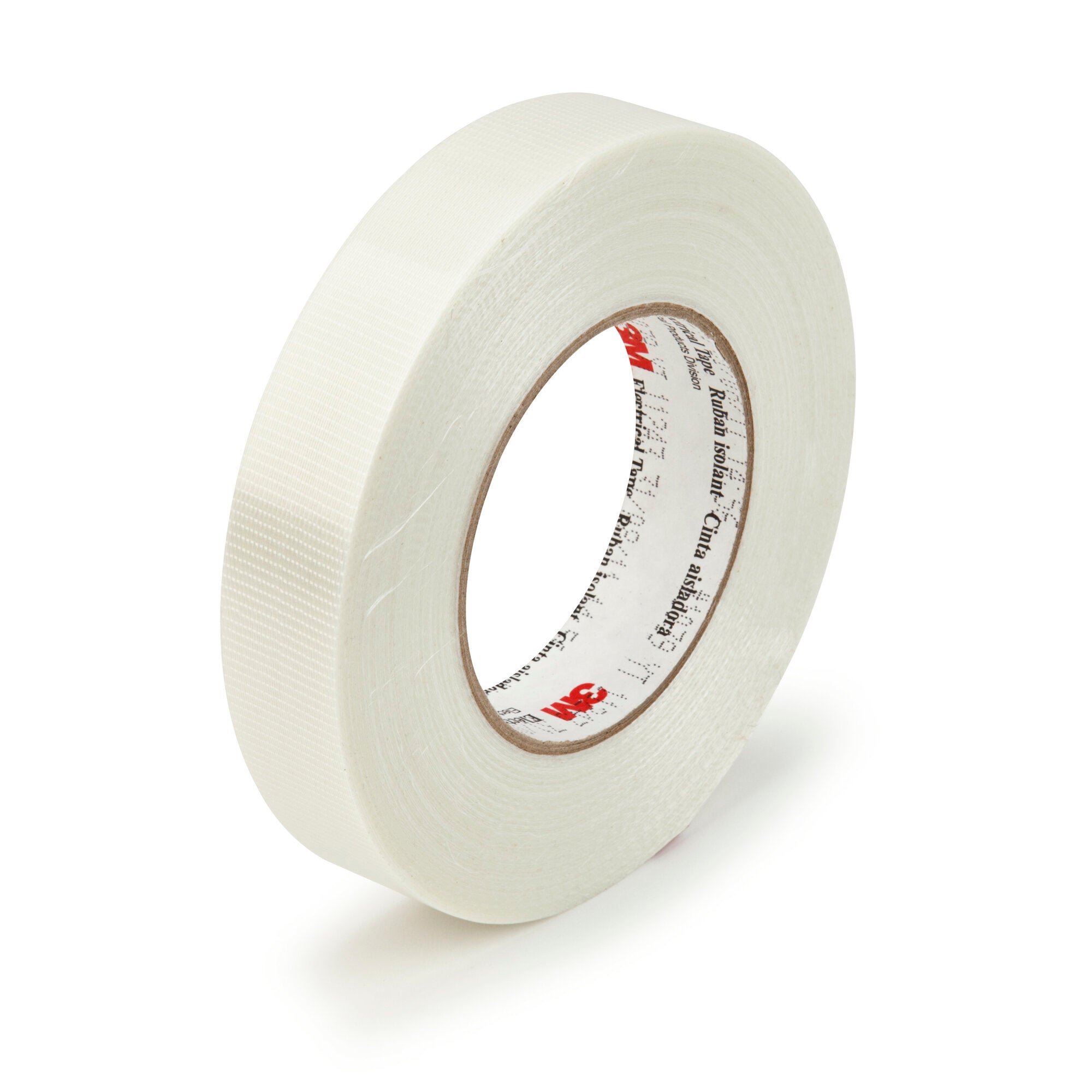

3M Filament-Reinforced Electrical Tape 1039, 5/8 X 60 yds, Bulk, 3-in paper core

by 3M
No reviews
Original price $1,175.99 - Original price $1,175.99
Original price
$1,175.99
$1,175.99 - $1,175.99
Current price $1,175.99
Free shipping
60 Rolls per Order, Made to OrderAcrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristicsWoven, glass mat provides additional reinforcementSuitable for anchoring end-turn tapping and lead wires to banding... Read more

Overview

3M

3M Filament-Reinforced Electrical Tape 1039, 5/8 X 60 yds, Bulk, 3-in paper core

  • 3M
  • 7010350384

60 Rolls per Order, Made to Order

Acrylic adhesive for excellent adherence and polyester film/glass filament scrim backing for outstanding electrical characteristics

Woven, glass mat provides additional reinforcement

Suitable for anchoring end-turn tapping and lead wires to banding coils

Offers good initial adhesion to magnet wire, strip copper and insulation materials

Withstands a temperature range of -40 to 266 °F (-40 to 130 °C)

Provides stiffness for excellent handling during coil-winding operations

UL Listed and RoHS 2011/65/EU Compliant

3M™ Filament Reinforced Electrical Tape 1039 is a 7 mil thick, solvent resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical resistant, acrylic adhesive. The tape is 600V rated and withstands a temperature range of 40 to 266 °F ( 40 to 130 °C).

3M™ Tape 1039 is designed for dry type transformers, motor winding and low voltage applications that require dielectric and mechanical strength. This conformable tape offers excellent dielectric strength, low stretch and high tensile strength. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. The tape is ideal for anchoring end turn tapping and lead wires to banding coils and it provides stiffness for excellent handling during coil winding operations. UL Listed and RoHS 2011/65/EU Compliant.


Product Details

General Information
Manufacturer
3M
Part Number
7010350384
Product Type
Tape Adhesive & Fasteners`
