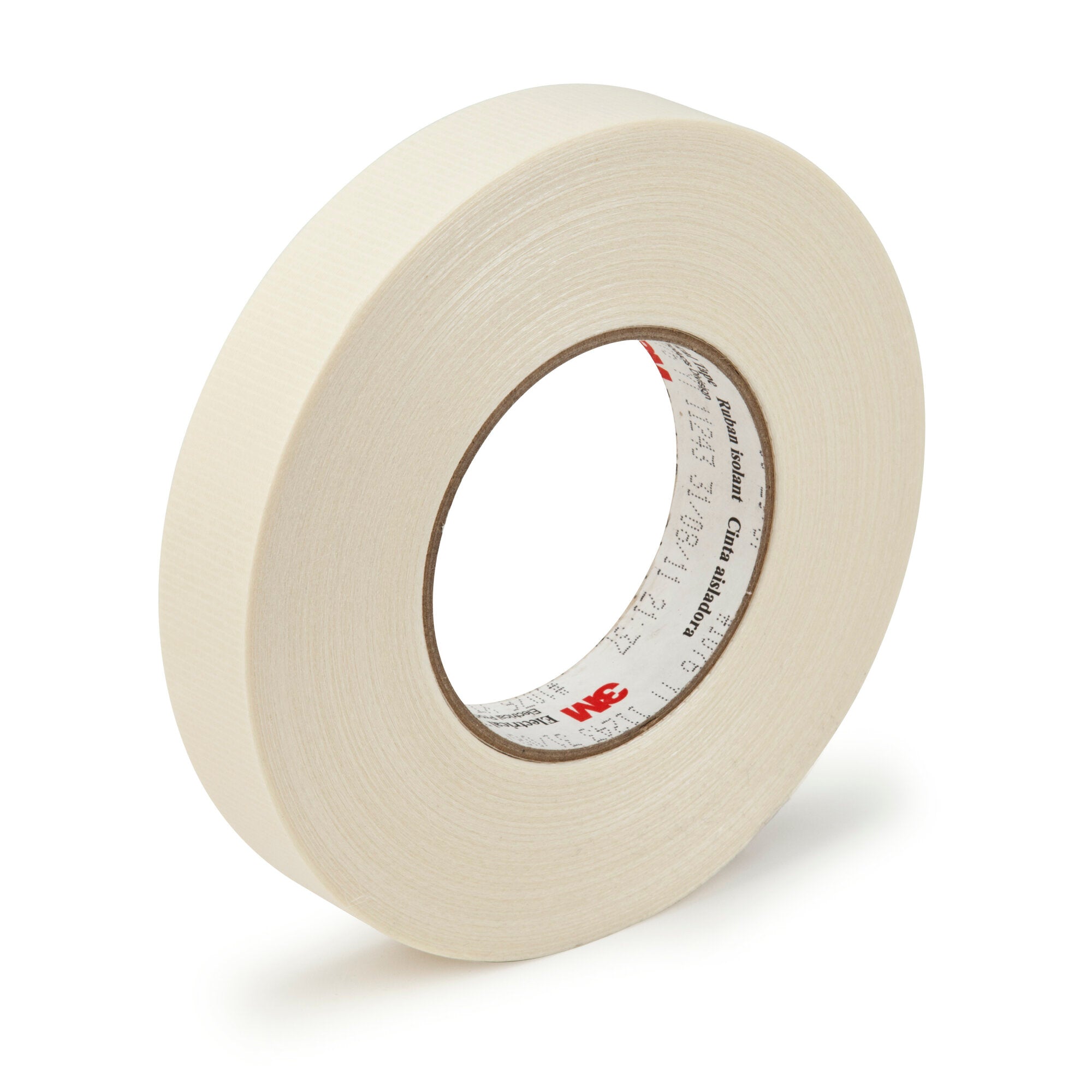

3M Filament-Reinforced Electrical Tape 1076, 1 in X 60 yds

by 3M
$610.99
36 Rolls per Order, Made to OrderElectrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesiveWoven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluidsSaturable backing provides air entrapment resistance that... Read more

Overview

Brand img

3M Filament-Reinforced Electrical Tape 1076, 1 in X 60 yds

  • 3M
  • 7010350273

36 Rolls per Order, Made to Order

Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive

Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids

Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape

Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)

RoHS 2011/65/EU Compliant‎

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

3M™ Tape 1076 has paper backing that offers complete saturation to reduce the potential of voids. The unique coating on this tape supports excellent bonding with diamond paper, insulation epoxy during the transformer baking process. It withstands a temperature range of 40 to 221 °F ( 40 to 105 °C) and it provides stiffness for excellent handling during coil winding operations. RoHS 2011/65/EU Compliant‎.


Product Details

General Information
Manufacturer
3M
Part Number
7010350273
Product Type
Tape Adhesive & Fasteners`
