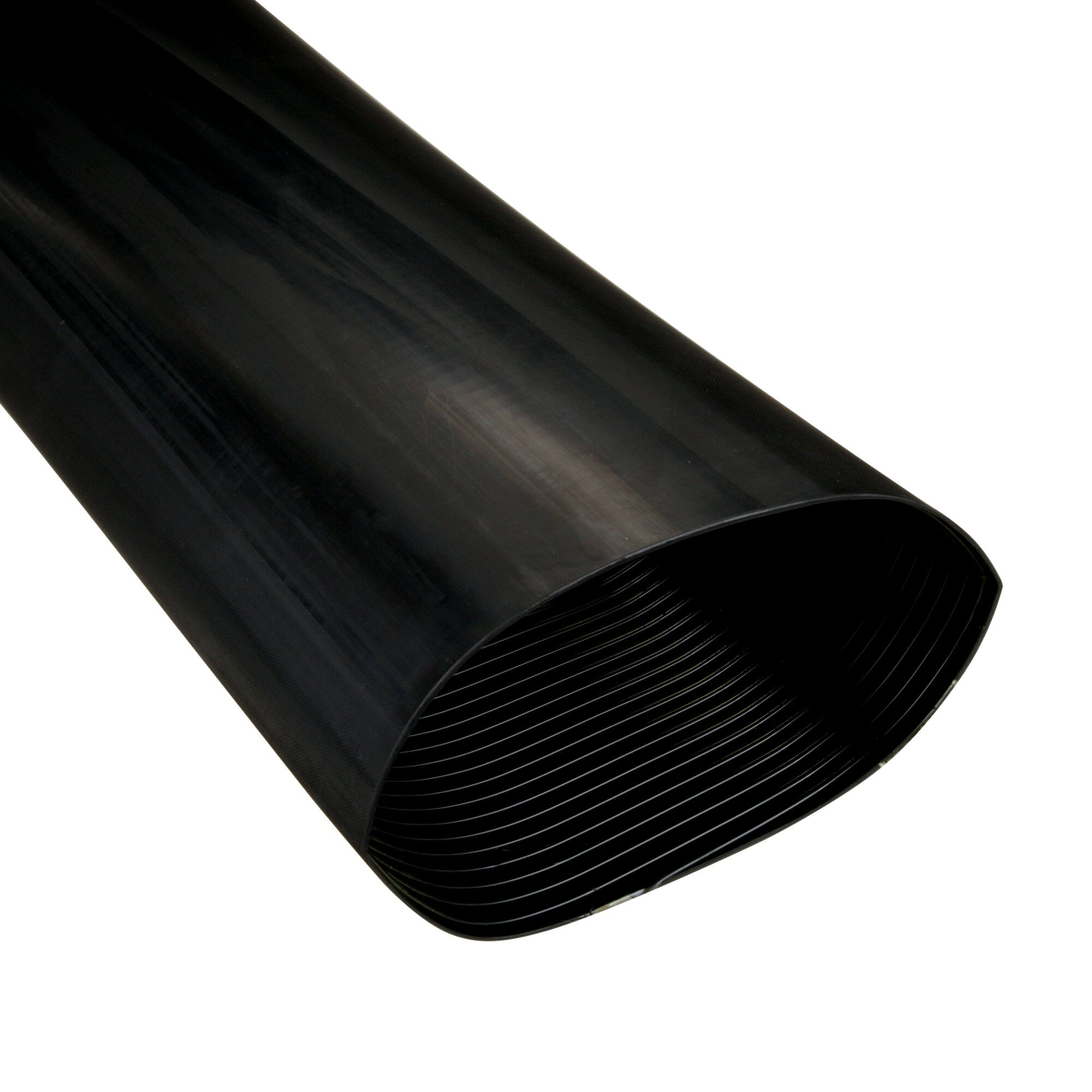

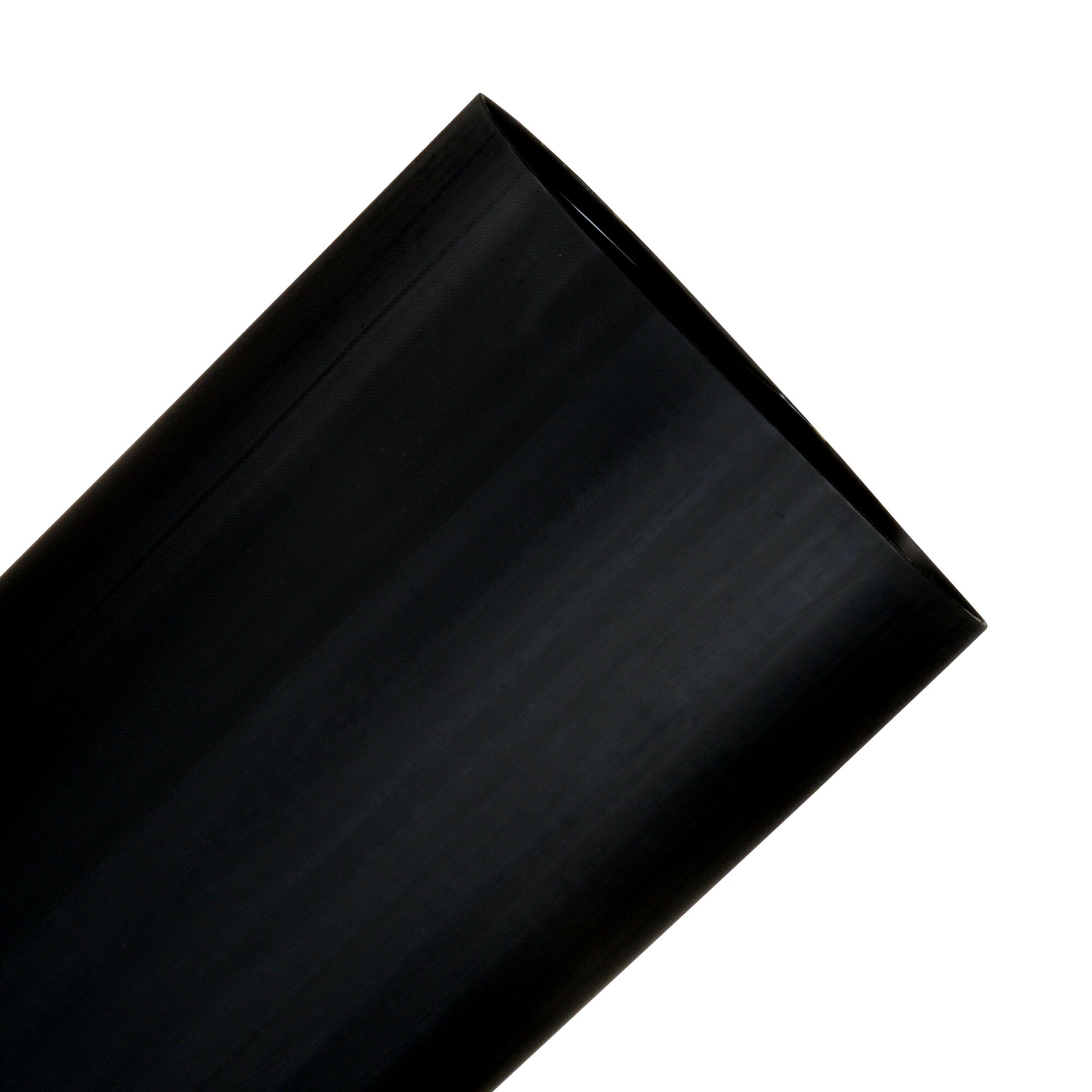

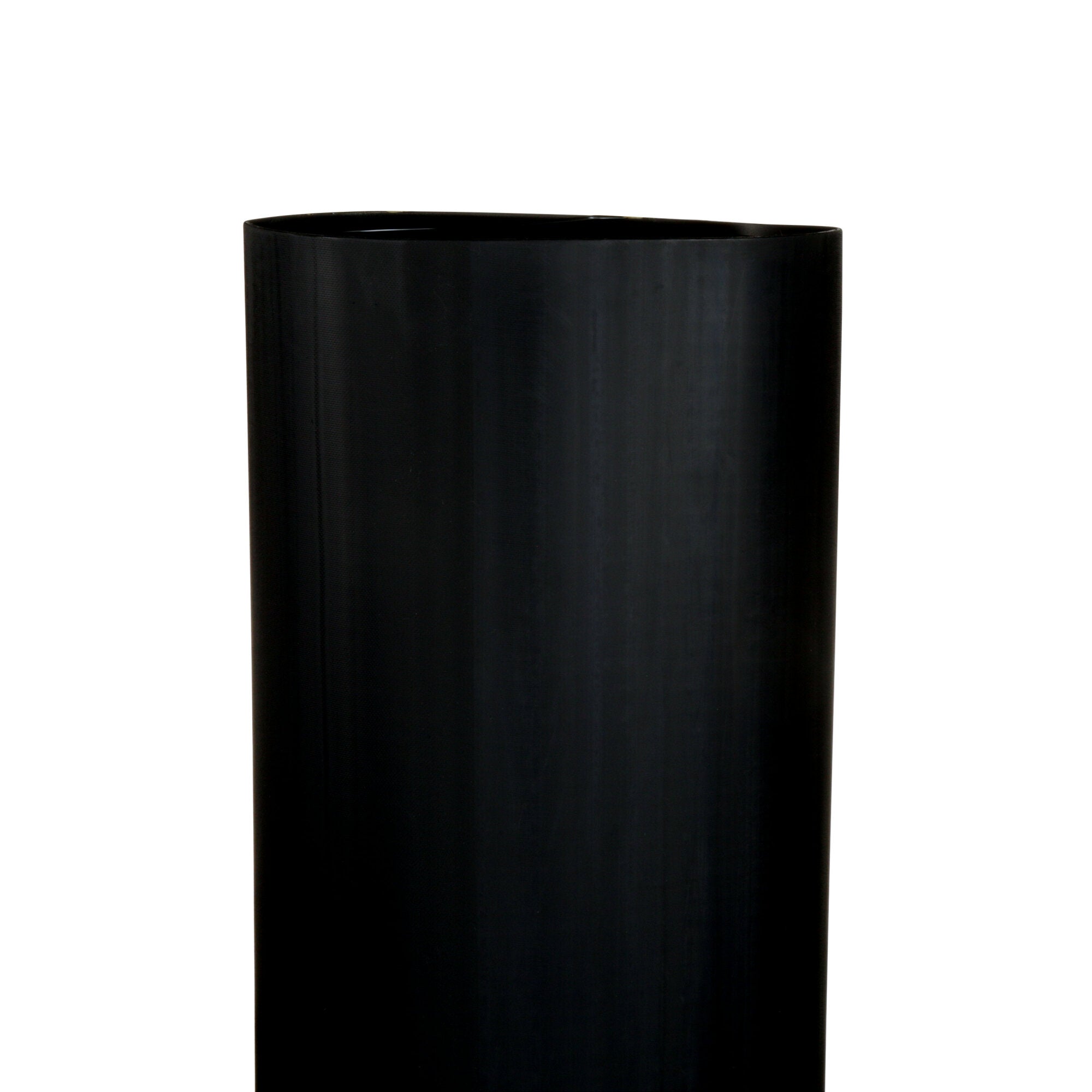

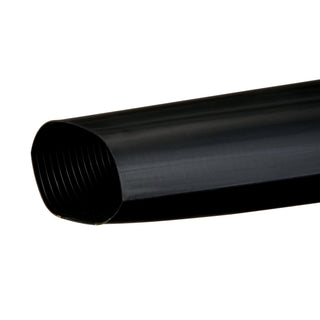

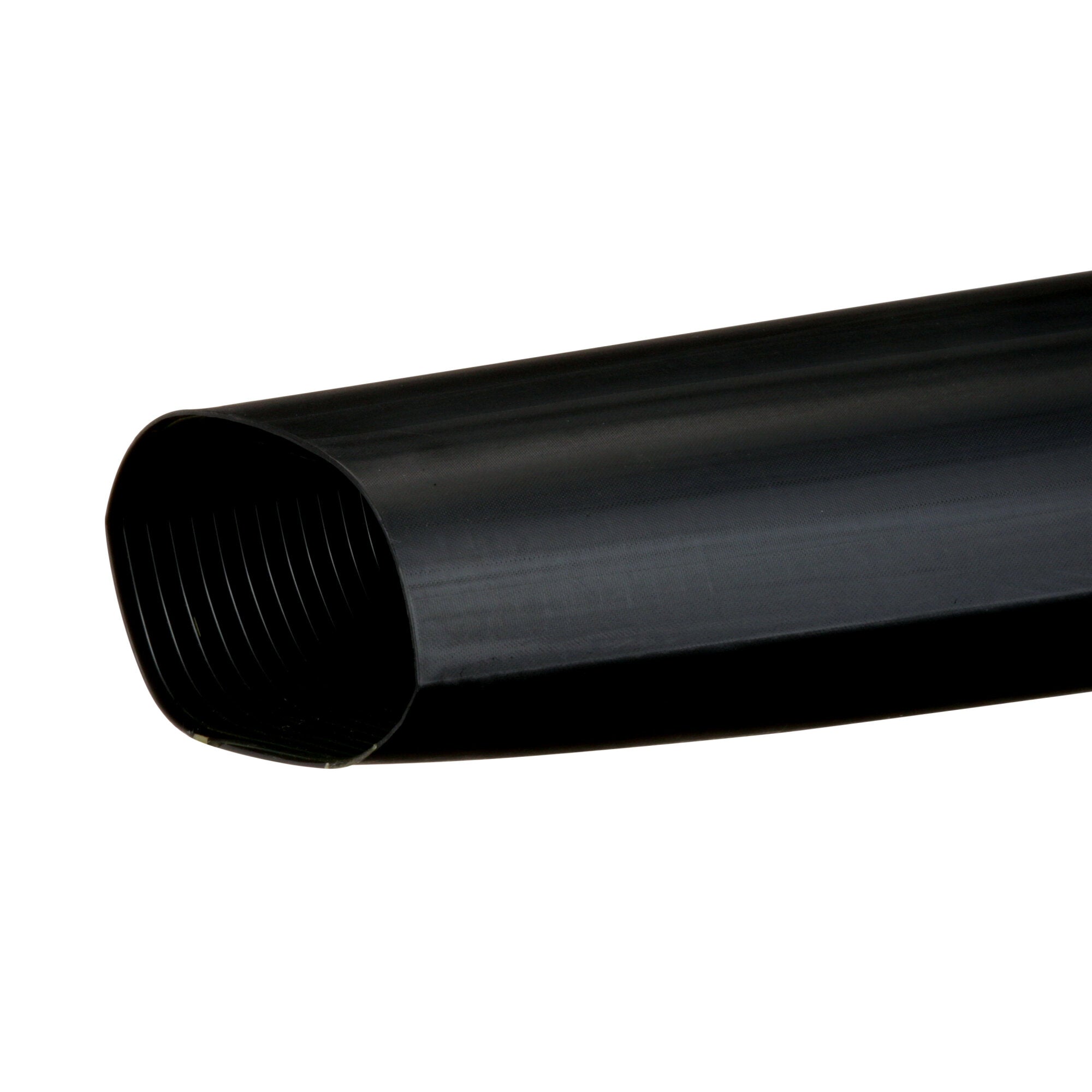

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-6000, 2.1-4.8 in

by 3M
No reviews
Original price $975.99 - Original price $975.99
Original price
$975.99
$975.99 - $975.99
Current price $975.99
Free shipping
Protect your hard work from abrasion, corrosion, moisture and chemicals with 3M ITCSN Heat Shrink Cable Sleeves. Their cross-linked polyolefin composition insulates many jobs including connections, terminations and secondary splices. The 3:1 shrink ratio on... Read more
Please allow 2 days for production.

Overview

3M

3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-6000, 2.1-4.8 in

Protect your hard work from abrasion, corrosion, moisture and chemicals with 3M ITCSN Heat Shrink Cable Sleeves. Their cross-linked polyolefin composition insulates many jobs including connections, terminations and secondary splices. The 3:1 shrink ratio on these heavy-wall sleeves binds wiring for applications rated 1 kV or less.3M™ Heat Shrink Cable Sleeve ITCSN is a split resistant sleeve with a factory applied adhesive/sealant that offers reliable performance for electrical splices, connections and terminations. It is perfect for insulating secondary splices, direct buried, submersible or dig in repairs, as well as physical protection of high voltage, air insulated connectors or lugs. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
3M™
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Product Type
Sleeve
Splice Type
Heat Shrink
Tubing Type
Heavy Wall
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Cable Size Range
2.1-4.8 in
Expanded Inner Diameter
6 in
Expanded Inner Diameter (Metric)
152.4 mm
Maximum Operating Temperature (Celsius)
100 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to -100 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Overall Length (Metric)
1219 mm
Recovered Inner Diameter
1.8 in
Recovered Inner Diameter (Metric)
45.7 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Minimum Shrink Temperature Fahrenheit
250 °F
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
48.0
Other Details
Adhesive Lined
No
Dielectric Strength (V/mil)
500 V/mil
Direct Bury
No
Elongation
4.75 %
Flame Retardant
No
Mil Spec
AMS-DTL-23053/15,Class 1
Minimum Expanded Tubing I. D.
6 in
Non-Corrosive
Yes
Shrink Ratio
3:1
Solution For
Access Network: xDSL
Splice Configuration
Heat Shrink Heavy-Wall Cable Sleeve (ITCSN)
UL File Number
E-102356
Units Per Case
5.0
Tensile Strength Imperial
2400 Pound-Force Per Square Inch
Usage Information
Application Specifications
UL Listed 486 D for 600V, File Number E102356; CSA Certified File LR86335
Material and Composition
Adhesive Material
Hot melt adhesive layer
Material
Polyolefin
Product Form
Sleeve-roll
Shelf Life
3600
Color and Appearance
Product Color
Black
Certifications and Standards
Flammability Rating
Non-Flame Retardant
Specifications Met
UL 486D*
Packaging and Shipping
Case Quantity
5
