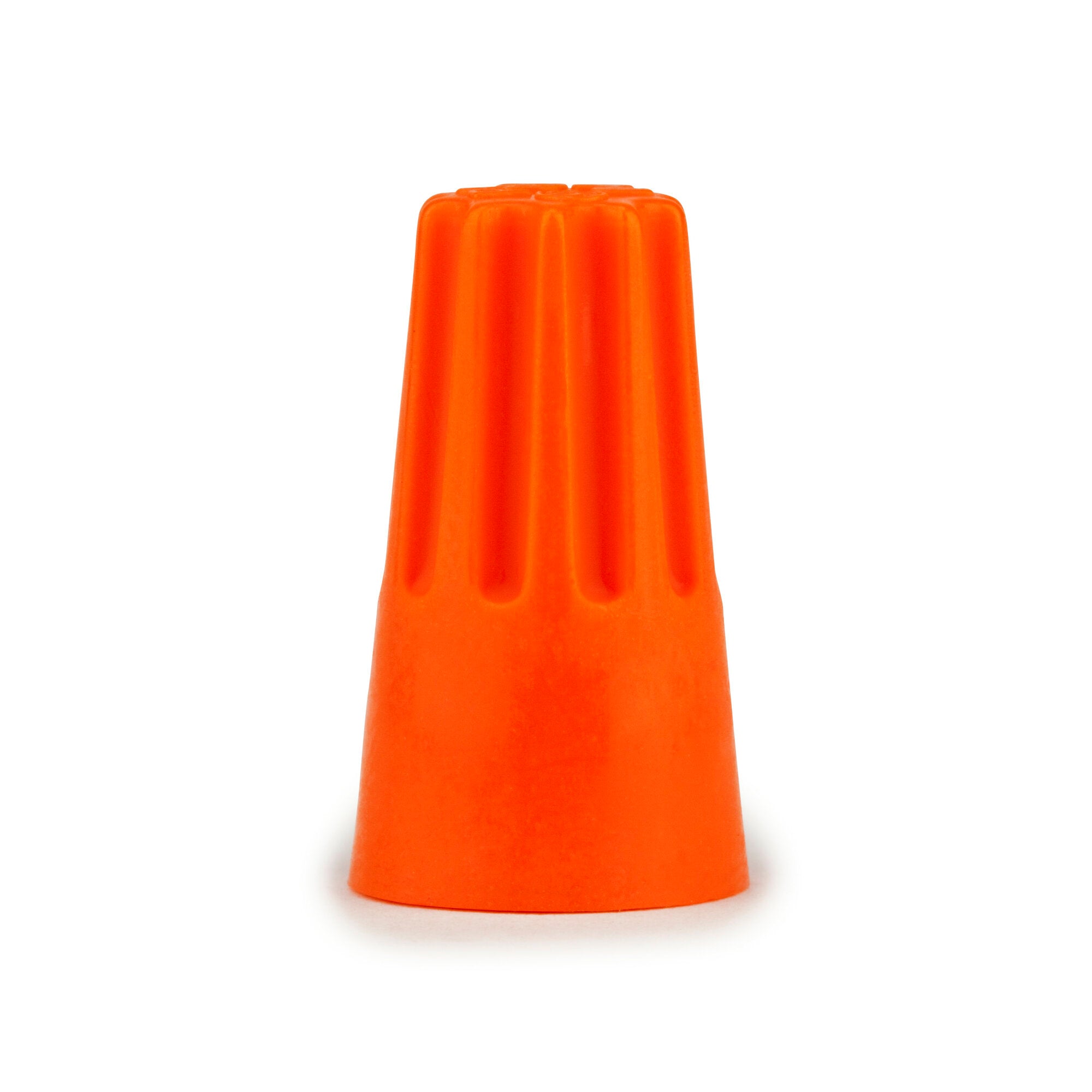

3M Highland Wire Connector H-31-BAG, 18-14 AWG, Orange, 500 per Bag

by 3M
No reviews
Original price $850.99 - Original price $850.99
Original price
$850.99
$850.99 - $850.99
Current price $850.99
Free shipping
3M Highland Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221F (105C). Highland wire connectors are... Read more
Please allow 2 days for production.

Overview

3M

3M Highland Wire Connector H-31-BAG, 18-14 AWG, Orange, 500 per Bag

3M Highland Wire Connectors make it quick and easy to match the right connector to the size of the wire. The shells are designed to withstand temperatures up to 221F (105C). Highland wire connectors are UL Listed and work equally well with either solid or stranded copper wire.3M™ Highland™ Wire Connectors are available in five color/wire range options. H-29 and H-30 Highland wire connectors are rated to 300V. H-31, H-33 and H-35 Highland wire connectors are rated to 600V maximum in building wire; 1000V maximum in signs or lighting fixtures (luminaires).
  • Used for connecting and insulating wire connections in a pigtail application
  • Suitable for select 3M™ Peformance Plus™ Wire Connectors and 3M™ Secure Grip Wire Connectors
  • Available in hand driver or power driver options

Product Details

General Information
Brand
Highland™
Connection Type
Wire
Connector Style
Twist On
Product Type
Connector
Wire Connector Type
Twist-on Wire Connectors
Country Of Origin
China
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
18 -14 AWG
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Metric)
1 mm²
Voltage Rating
600 V
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.5
Minimum Conductor Size Imperial
18 AWG
Minimum Conductor Size Metric
1 mm²
Other Details
Flame Retardant
No
Family
3M™ Highland™ Wire Connector
Color and Appearance
Product Color
Orange
Packaging and Shipping
Case Quantity
10,000
Packaging
Bag
