3M Motor Lead Pigtail or V-Stub Splice 5381, 5-8 kV, 8-4 AWG, 10-4 AWG

by 3M
Original price $415.99 - Original price $415.99
Original price
$415.99
$415.99 - $415.99
Current price $415.99
Free shipping
One Kit per OrderDesigned for use with 30000 Series copper compression lugs or other UL Listed copper lugsPerfect for use with shielded and non-shielded cablesRated for 5/8 kV applicationsThe lug or splice cover is made... Read more

Overview

Brand img

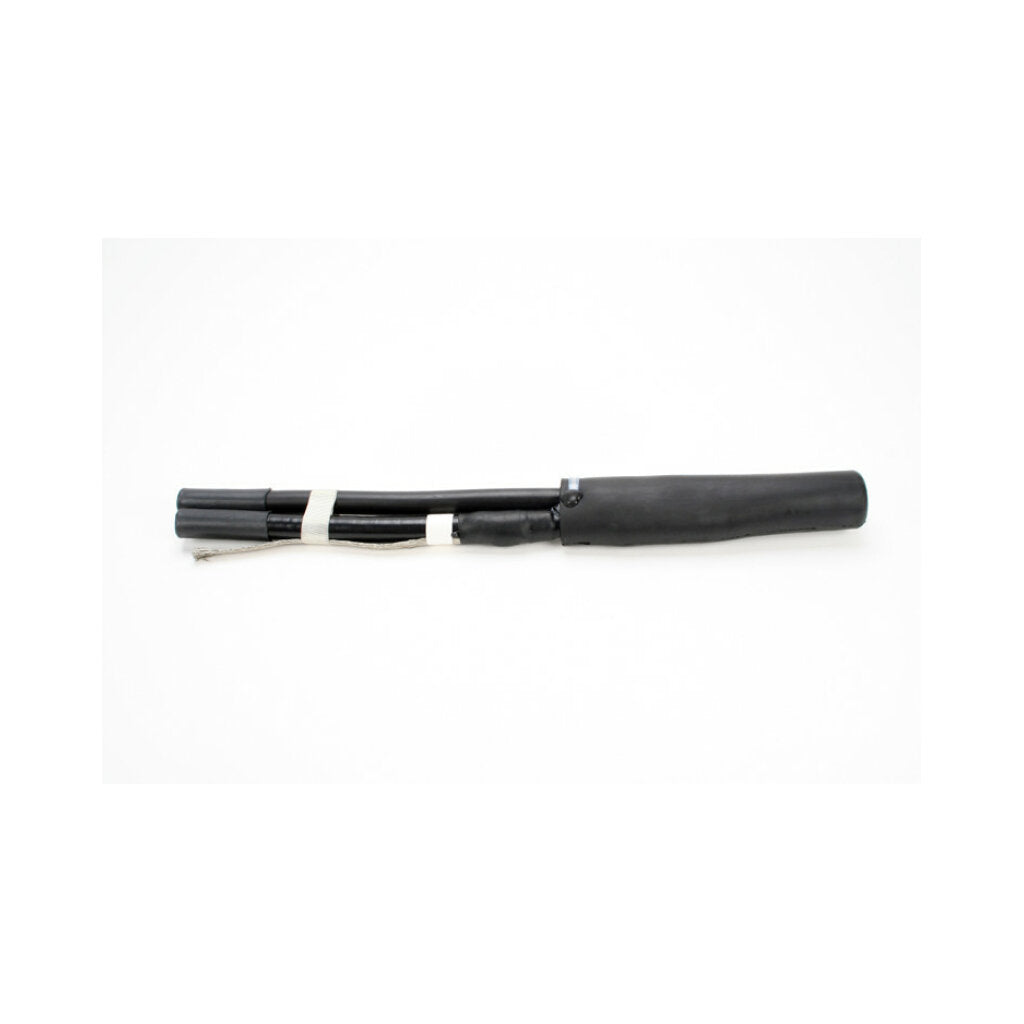

3M Motor Lead Pigtail or V-Stub Splice 5381, 5-8 kV, 8-4 AWG, 10-4 AWG

One Kit per Order

Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs

Perfect for use with shielded and non-shielded cables

Rated for 5/8 kV applications

The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage

Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet

Withstands a temperature range of 194 to 266 degrees F (90 to 130 degrees C)

3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cable’s electrical stress control. These kits are designed to be used with copper compression lugs. After being crimped onto the cables, the lugs are bolted together, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlock™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Lug covers • (3) Cold Shrink terminations • (12) Mastic sealing strips • (3) Copper tape strips • (3) Cleaning kits • (6) Tubes of silicone grease • (3) Cold Shrink jacket tubes • (3) Constant force springs • (3) Cable ties • (3) Ground straps • (1) Instruction sheet


Product Details

General Information
Manufacturer
3M
Part Number
3M-7000133143
Product Type
Industrial
