3M Motor Lead Pigtail or V-Stub Splice 5382, 5-8 kV, Feeder: 2-1/0 AWG

by 3M
No reviews
Original price $552.70 - Original price $552.70
Original price
$552.70
$552.70 - $552.70
Current price $552.70
Free shipping
3M Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded... Read more
Please allow 2 days for production.

Overview

3M

3M Motor Lead Pigtail or V-Stub Splice 5382, 5-8 kV, Feeder: 2-1/0 AWG

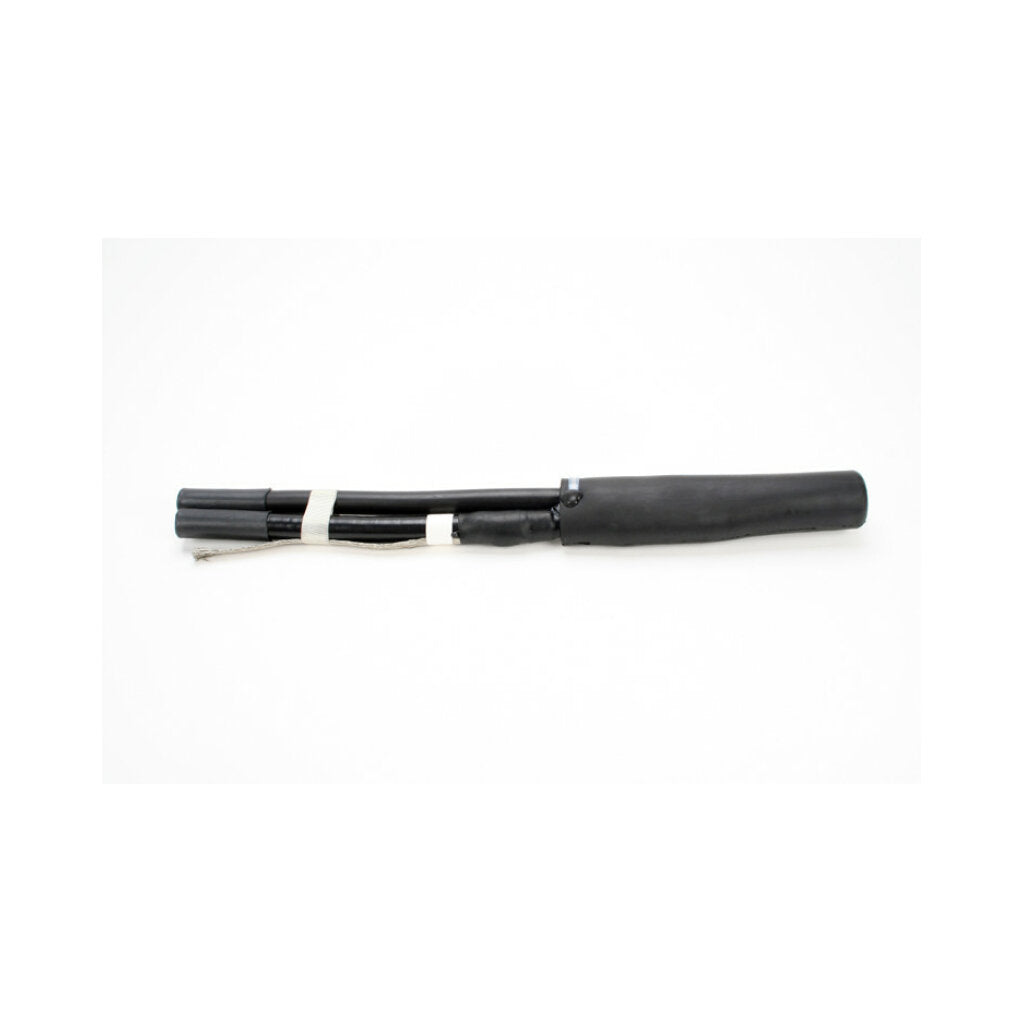

3M Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The splices main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cables electrical stress control. These kits are designed to be used with copper compression lugs. After being crimped onto the cables, the lugs are bolted together, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M Scotchlock Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: (3) Lug covers (3) Cold Shrink terminations (12) Mastic sealing strips (3) Copper tape strips (3) Cleaning kits (6) Tubes of silicone grease (3) Cold Shrink jacket tubes (3) Constant force springs (3) Cable ties (3) Ground straps (1) Instruction sheet
  • Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • Perfect for use with shielded and non-shielded cables
  • Rated for 5/8 kV applications
  • The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage
  • Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
  • Withstands a temperature range of 194 to 266 degrees F (90 to 130 degrees C)

Product Details

General Information
Brand
3M™
Cable Type
Jacketed Concentric Neutral (JCN)
Connection Type
Pigtail (Shielded)
Product Type
Splice
Splice Type
Pigtail or V-stub
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Conductor Sizes (Imperial)
250 kcmil
Inner Diameter Of Boot To Size Of Cables
1.16 in
Inner Diameter Of Boot To Size Of Cables (Metric)
29.5 mm
Insulation Outside Diameter
0.43-0.65 Inch
Insulation Outside Diameter Range
0.43-0.65 in
Insulation Outside Diameter Range (Metric)
10.9 - 16.5 mm
Maximum Bolt Length
3/4 in
Maximum Bolt Length (Metric)
19.1 mm
Maximum Conductor Size (Imperial)
500 kcmil
Maximum Conductor Size (Metric)
240 mm²
Maximum Feeder Lead Size
1/0 AWG
Maximum Lug Length
2-3/4 in
Maximum Lug Length (Metric)
69.9 mm
Maximum Motor Lead Size
1/0 AWG
Maximum Operating Voltage
8 kV
Minimum Conductor Size (Imperial)
250 kcmil
Minimum Conductor Size (Metric)
120 mm²
Typical Splice Length
33 in
Typical Splice Length (Metric)
838 mm
Voltage
5 kV - 8 kV
Voltage Application
Medium Voltage
Maximum Conductor Size Imperial
500 kcmil
Maximum Conductor Size Metric
240 mm²
Minimum Conductor Size Imperial
250 kcmil
Minimum Conductor Size Metric
120 mm²
Other Details
Cable Shielding
Ribbon Shield
Connector Included
None
Number Of Conductors
1
Range Feeder Cable (AWG & Kcmil)
2-0
Units Per Case
3.0
Usage Information
Application
Cable Connection
Material and Composition
Conductor Material
Copper
