About this item

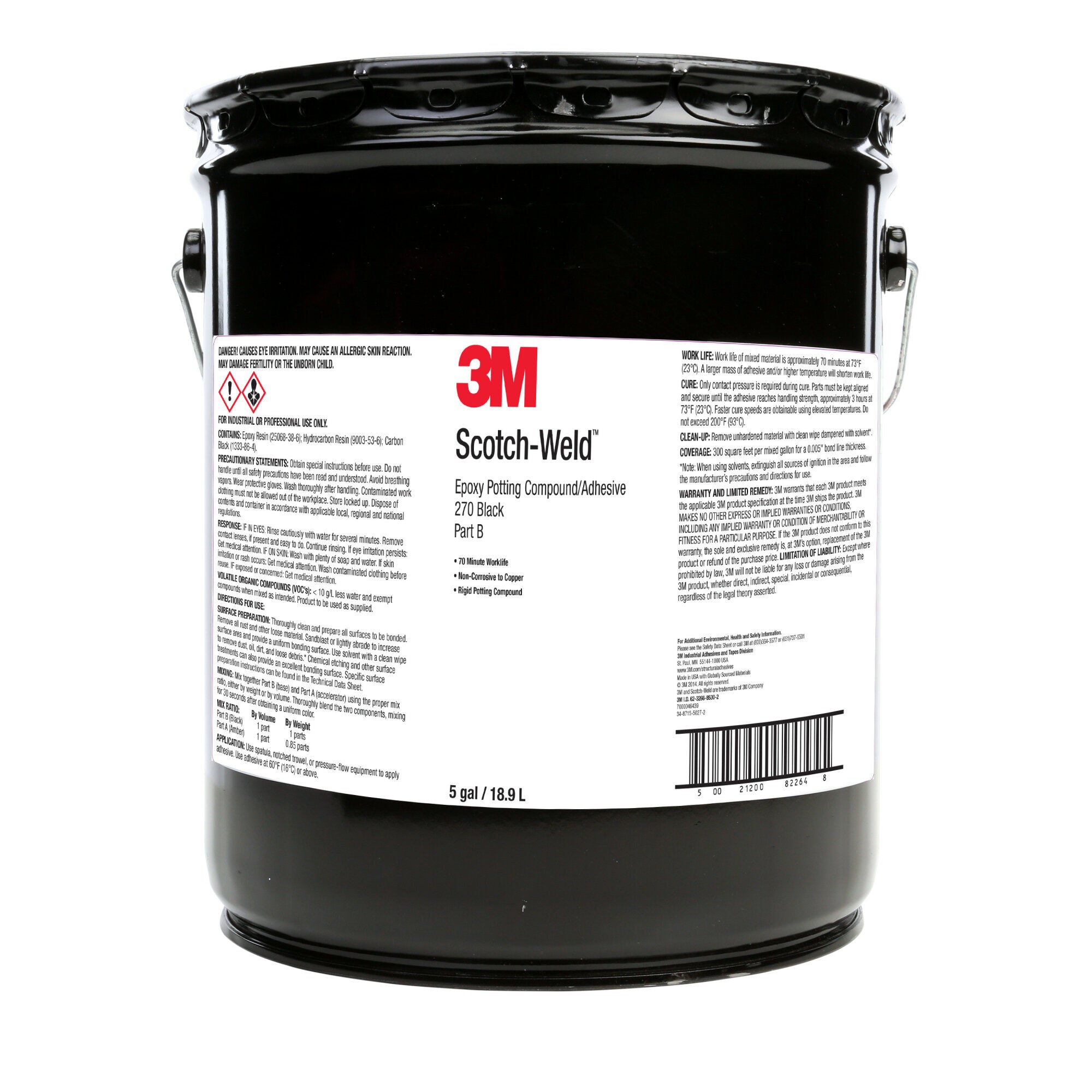

3M Scotch-Weld Epoxy Potting Compound 270, Black, Part B, 5 Gallon(Pail)
- 7000046439
- 3M
- Structural Adhesives
Downloads
Datasheet
Key points
- Features a 70 minute work life
- Rigid potting compound is non-corrosive to copper
- Minimal exotherm and very low shrinkage
- Flammability testing per UL94 HB
- This product is an opaque black
Description
3M Scotch-Weld Epoxy Potting Compound DP270 Black is low viscosity for easy dispensing and potting. It is non-corrosive to copper, minimal exotherm and very low shrinkage making it well-suited for potting and bonding electronic and electrical components.Low viscosity for easy dispensing and potting
Our 3M™ Scotch-Weld™ Epoxy Potting Compound DP270 Clear is a rigid, two-part epoxy adhesive with a 1:1 mix ratio and 70 minute work life. It provides initial strength in about 3 hours with approximately 2,500 PSI at 72°F (22°C). Additionally, our 3M™ ™ Epoxy Potting Compound DP270 is low viscosity for easy dispensing and potting; and is non-corrosive to copper. It offers good resistance to medical sterilization and is available in black opaque and transparent amber.
Recommended Applications

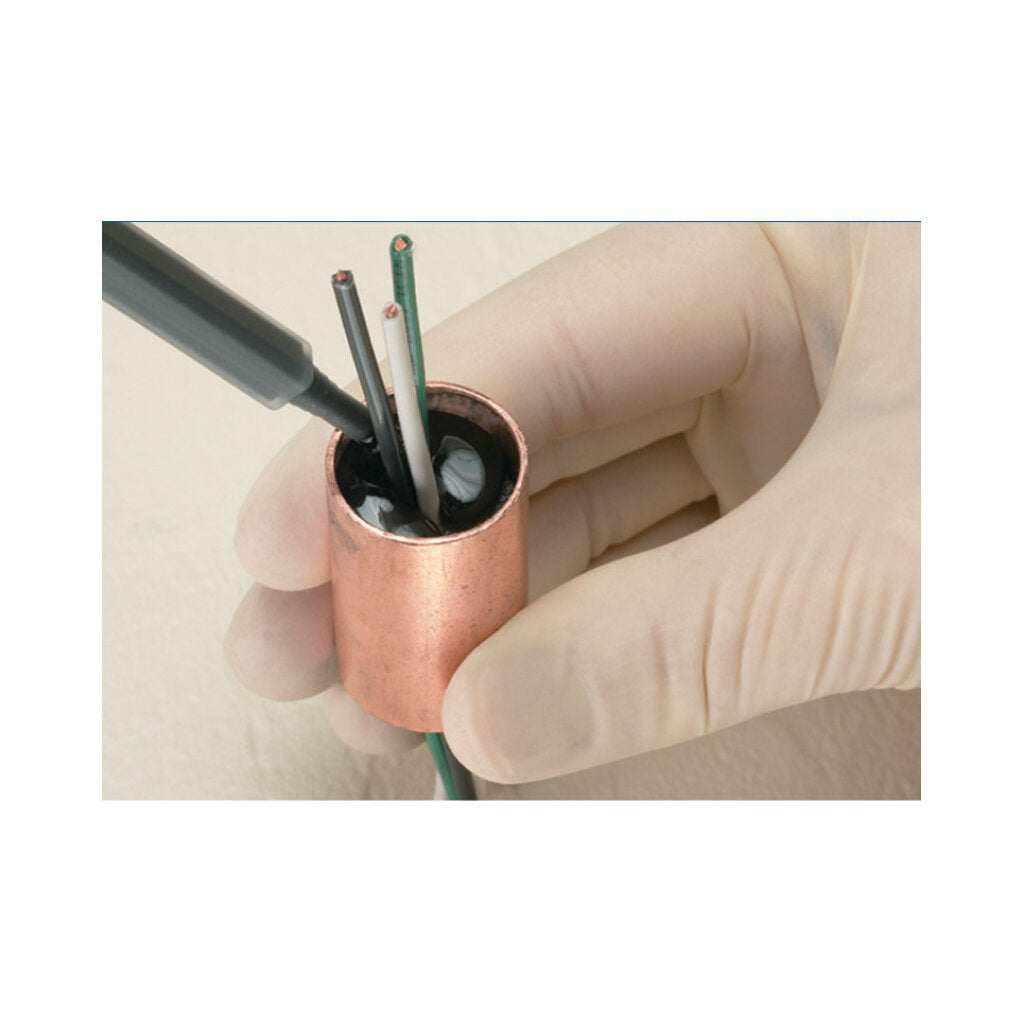

- Potting and bonding electrical components
are part of the class of adhesives called "structural adhesives," which include polyurethane, acrylic, cyanoacrylate and others. Epoxies are formulated as liquid reactive polymers that undergo a chemical reaction when mixed and then cure to form a solid plastic material. Once the two parts are mixed in their specified ratio, they begin the curing process and offer a limited working time where the adhesive can be applied and the two surfaces positioned as needed. This work life lasts anywhere from a few minutes to several hours. These structural adhesives provide high shear and peel strengths, depending on the formula, and better heat and chemical resistance than other common adhesives. In general, epoxy adhesives have the highest overall strength and offer the best performance and most resistance to high temperatures, solvents and outdoor weathering.
Epoxy adhesive (often referred to as epoxy glue) is widely used in building and home construction; aircraft and automobile manufacturing; bicycle, boat, golf clubs, ski and snowboard assembly as well as a host of home use and other applications. It is used virtually anywhere high-strength bonds are needed along with resistance to environmental conditions. These adhesives are popular for their ease of use, mechanical strength and chemical resistance. Formulations can be created to make epoxy for plastic flexible or epoxy for metal rigid, epoxy resin transparent or opaque, quick setting or slow setting. The versatility with which these adhesives can be formulated helps meet almost any requirement for bonding wood, metal, glass, stone and various plastics.
(PDF, 16 Mb).
