3M Scotchcast Multi-Mold Resin Splice kit 85-14CPN, 0 - 600 V, Non-Shielded

Features

10 per order, made to order

Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges

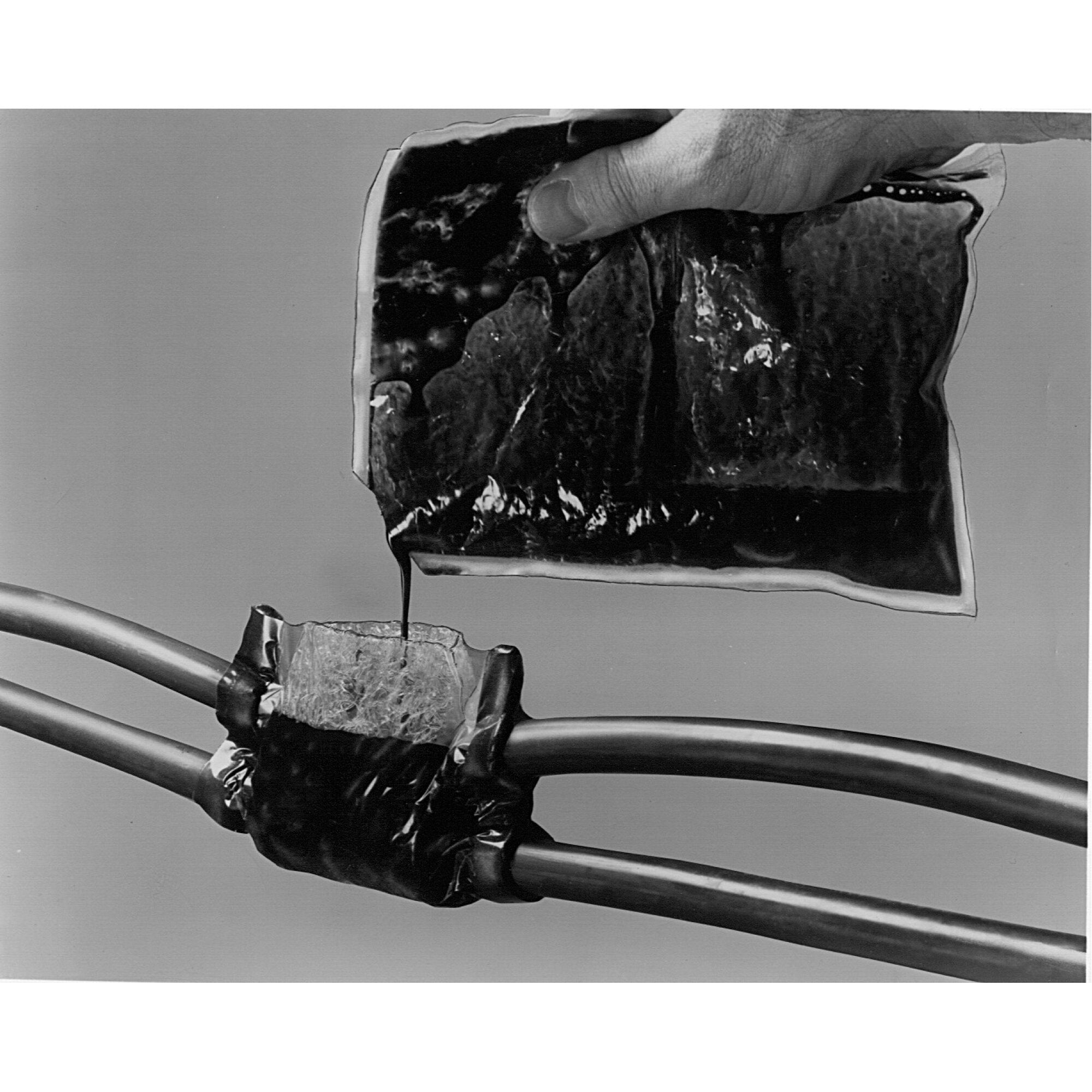

3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch

Includes comprehensive instruction booklet showing installation techniques for typical splice configurations, in both the horizontal and vertical positions.

Includes pressure-sensitive adhesive film sealing strip

RoHS 2011/65/EU Compliant‎

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end splice configurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.

3M™ Scotchcast™ Multi Mold Resin Splice Kit 85 Series includes a flexible film plastic mold, electrical insulating resin 2104, pressure sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H tap or C tap compression connectors, it provides inline, wye, X, butt and dead end splice configurations. It has a flexible film plastic mold with a built in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig ins. RoHS 2011/65/EU Compliant‎.
