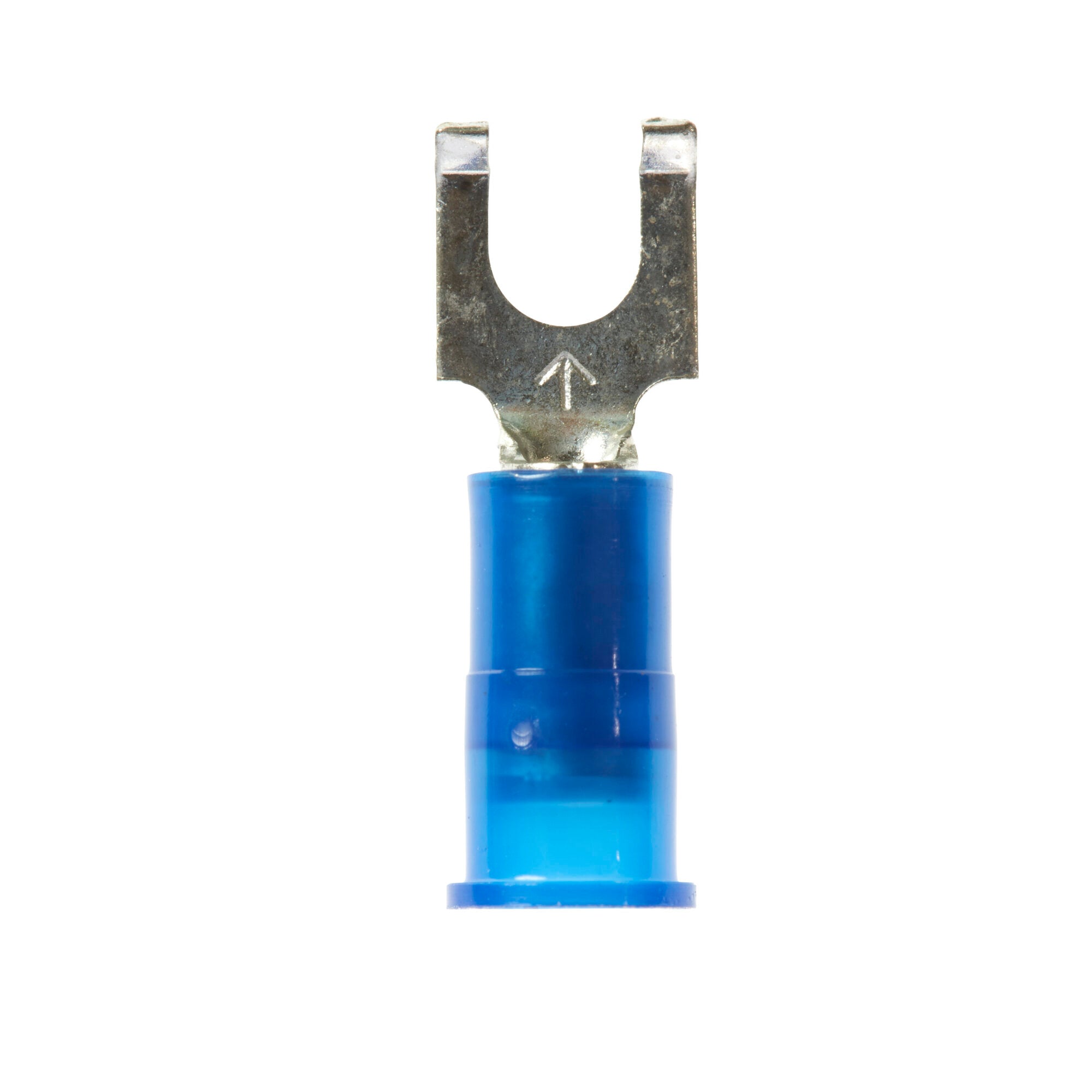

3M Scotchlok Block Flanged Fork, Nylon Insulated w/Insulation GripMNG14-8FFBK

by 3M
No reviews
Original price $545.99 - Original price $545.99
Original price
$545.99
$545.99 - $545.99
Current price $545.99
Free shipping
3M Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees... Read more
This product is made to order. Please allow 8 days for production.

Overview

3M

3M Scotchlok Block Flanged Fork, Nylon Insulated w/Insulation GripMNG14-8FFBK

3M Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Flanged Block Fork Terminal is color-coded for quick and easy identification of the wire size required. The butted-seam barrel is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Butted
Fork Type
Flanged Block
Terminal Style
Flanged Block
Terminal Type
Fork
Country Of Origin
United States
Lead Time
8 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.09 Inch
Barrel Length (Imperial)
0.25 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
0.86 in
Overall Width (Imperial)
0.3 in
Stud Size
#8
Barrel Length Imperial
0.25 Inch
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.08 mm²
Minimum Conductor Size Imperial
16 AWG
Minimum Conductor Size Metric
1.31 mm²
Overall Length Imperial
0.86
Other Details
CSA File Number
LR22190
Clearance (C)
0.25 Inch
Dimension E
0.71 Inch
UL File Number
E23438
Units Per Case
1000.0
Material and Composition
Insulation Material
Nylon with Insulation Grip
Packaging and Shipping
Packaging
1000 per bulk box
