1000 per order, made to order
Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
Suitable for use in a terminal block
Stud size #6
Accommodates wire sizes 16 to 14 AWG
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

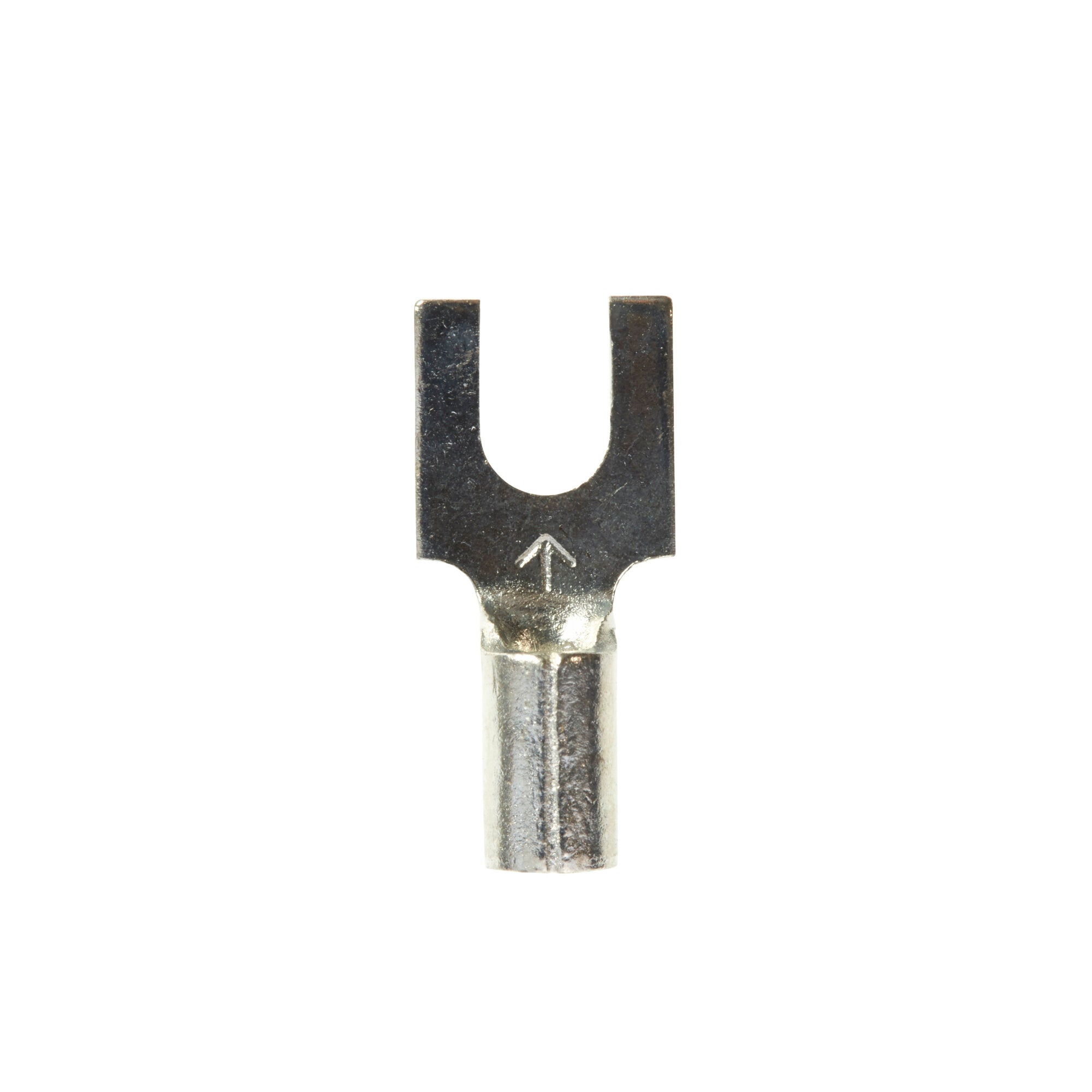

3M™ Scotchlok™ Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Block Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
