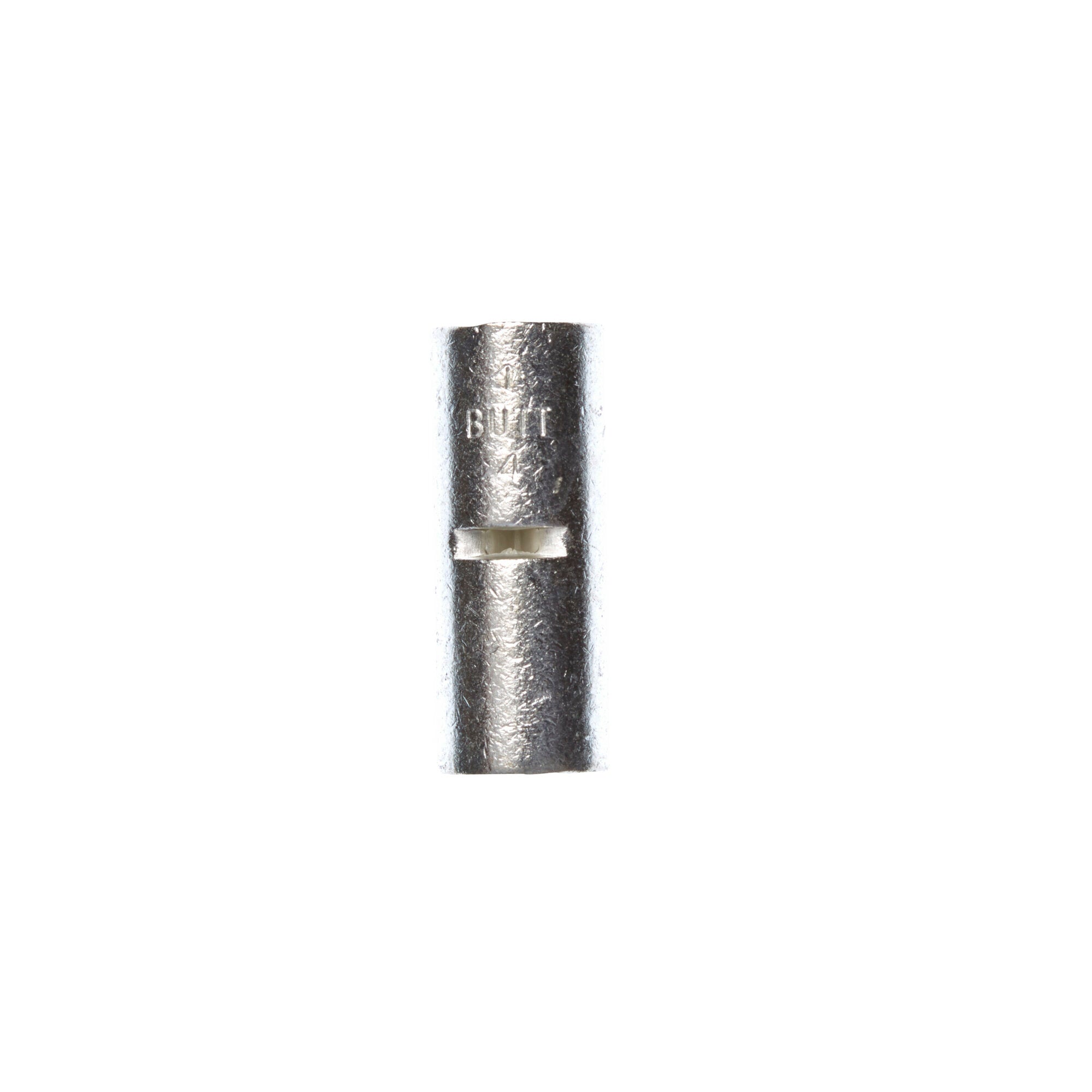

3M Scotchlok Butt Connector Non-Insulated, M4BCX

by 3M
$310.99
100 per order, made to orderNon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performanceBeveled mouth offers easy insertion of wiresBuilt-in wire stop for correct positioningAccommodates wire size 4 AWGMade of electrolytic copper for... Read more

Overview

Brand img

3M Scotchlok Butt Connector Non-Insulated, M4BCX

100 per order, made to order

Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Beveled mouth offers easy insertion of wires

Built-in wire stop for correct positioning

Accommodates wire size 4 AWG

Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Butt Connector has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.


Product Details

General Information
Manufacturer
3M
Part Number
7100135217
Product Type
Crimp Terminals Lugs & Wire Nuts
