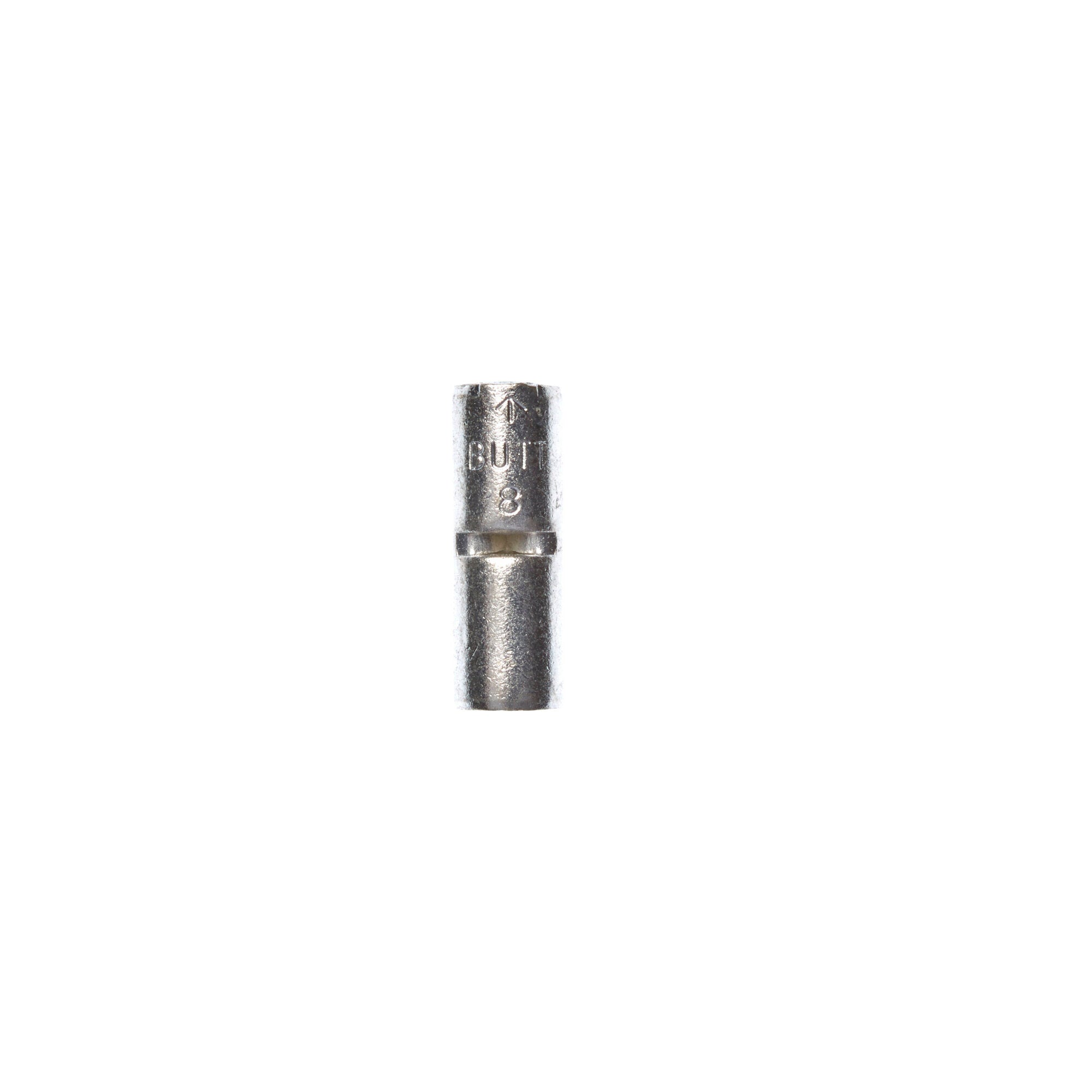

3M Scotchlok Butt Connector Non-Insulated, M8BCX

by 3M
No reviews
Original price $18.99 - Original price $18.99
Original price
$18.99
$18.99 - $18.99
Current price $18.99
Free shipping
3M Scotchlok Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum... Read more
Please allow 2 days for production.

Overview

3M

3M Scotchlok Butt Connector Non-Insulated, M8BCX

3M Scotchlok Non-Insulated Brazed Seam Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M™ Scotchlok™ Non-Insulated Brazed Seam Butt Connector has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Brazed
Connector Type
Butt
Terminal Style
Standard
Terminal Type
Butt Connectors
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.175 Inch
Barrel Length (Imperial)
0.38 Inch
Conductor Sizes (Imperial)
8 AWG
Maximum Conductor Size (Imperial)
8 AWG
Maximum Conductor Size (Metric)
10 mm²
Minimum Conductor Size (Imperial)
8 AWG
Minimum Conductor Size (Metric)
10 mm²
Overall Length (Imperial)
0.81 in
Overall Length (Metric)
20.574 mm
Barrel Length Imperial
0.38 Inch
Conductor Sizes Imperial
8 AWG
Overall Length Imperial
0.81
Other Details
CSA File Number
LR22190
UL File Number
E23438
Units Per Case
100.0
Material and Composition
Body Material
Copper Alloy
Insulation Material
Non-insulated
Material
ETP Copper
Color and Appearance
Product Color
Metal
Packaging and Shipping
Packaging
10 per bottle
