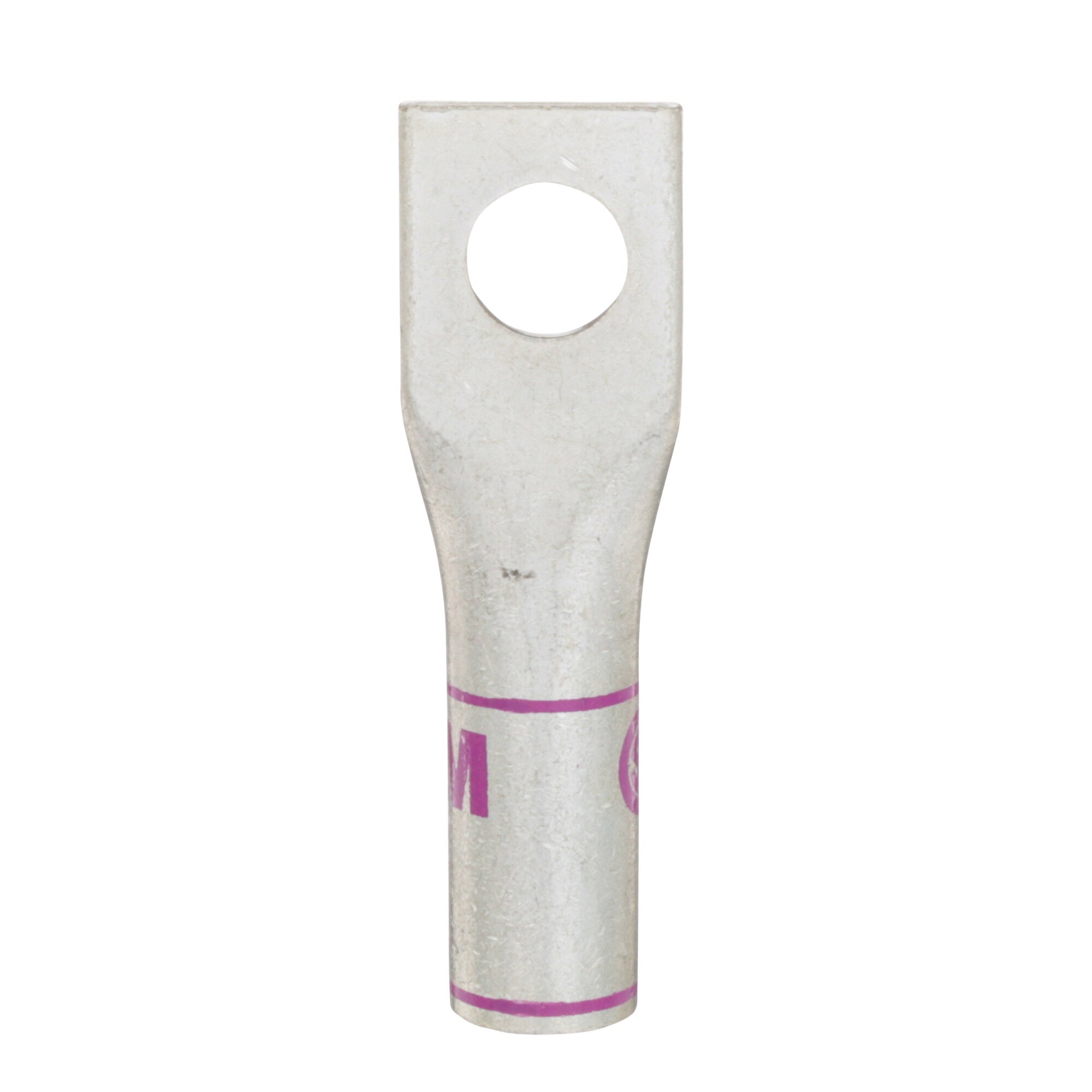

3M Scotchlok Copper One Hole Long Barrel Lug 31045, up to 35 kV, 4/0AWG, Purple

by 3M
No reviews
Original price $125.99 - Original price $125.99
Original price
$125.99
$125.99 - $125.99
Current price $125.99
Free shipping
3M Scotchlok 31000 1 Hole Compression Lug is for use with copper conductors only. The long barrel ensures a secure fit. Seamless copper construction offers high conductivity and an electro tin plated finish resists corrosion.... Read more
This product is made to order. Please allow 10 days for production.

Overview

3M

3M Scotchlok Copper One Hole Long Barrel Lug 31045, up to 35 kV, 4/0AWG, Purple

3M Scotchlok 31000 1 Hole Compression Lug is for use with copper conductors only. The long barrel ensures a secure fit. Seamless copper construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
  • Long barrel ensures a secure fit and offers reliable performance
  • Barrel has colored stripes that help to indicate the wire range
  • Suitable for indoor and outdoor applications
  • Made of copper for good conductivity and tin plating for corrosion resistance
  • Rated for 35 kV applications
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotchlok™
Barrel Style
Long Barrel
Lug Type
Compression Lugs
Product Series
31000
Country Of Origin
Chile
Lead Time
10 days
California Residents
Dimensions and Specifications
Barrel Length (Imperial)
1.56 in
Barrel Length (Metric)
39.7 mm
Center Of Hole To End Of Pad (Metric)
13.4 mm
Compatible Conductor Size (Imperial)
4/0 AWG
Compatible Conductor Size (Metric)
120 mm²
Inside Diameter (Imperial)
0.54 in
Inside Diameter (Metric)
13.9 mm
Maximum Conductor Size (Imperial)
4/0 AWG
Maximum Operating Voltage
35 Kilovolt
Outer Diameter (Imperial)
0.68 in
Overall Length (Imperial)
3.32 in
Overall Length (Metric)
84.4 mm
Pad Length (Imperial)
1.11 in
Pad Length (Metric)
28.2 mm
Pad Width
1 in
Pad Width (Metric)
25.4 mm
Stud Sizes
1/2 Inch
Barrel Length Imperial
1.56 in
Barrel Length Metric
39.7 mm
Compatible Conductor Size Imperial
4/0 AWG
Compatible Conductor Size Metric
120 mm²
Inside Diameter Metric
13.9 mm
Maximum Conductor Size Imperial
4/0 AWG
Overall Length Imperial
3.32
Pad Length Metric
28.2 mm
Other Details
Center Of Hole To Center Of Hole
0.531 Inch
Center Of Hole To End Of Pad
0.53 Inch
Connector Description
One Hole
For Use With
Copper Conductor Only
Number Of Stud Holes
1
Units Per Case
10.0
Material and Composition
Material
Copper
Color and Appearance
Product Color
Purple
Packaging and Shipping
Case Quantity
10
