3M Scotchlok Fork, Non-Insulated Brazed Seam M14-10FK, 16-14 AWG

by 3M
Original price $140.99 - Original price $140.99
Original price
$140.99
$140.99 - $140.99
Current price $140.99
Free shipping
1000 per order, made to orderNon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performanceBeveled mouth offers easy insertion of wiresWider-tongue design for use on free-standing studsStud size #10Accommodates wire sizes 16 to 14... Read more

Overview

Brand img

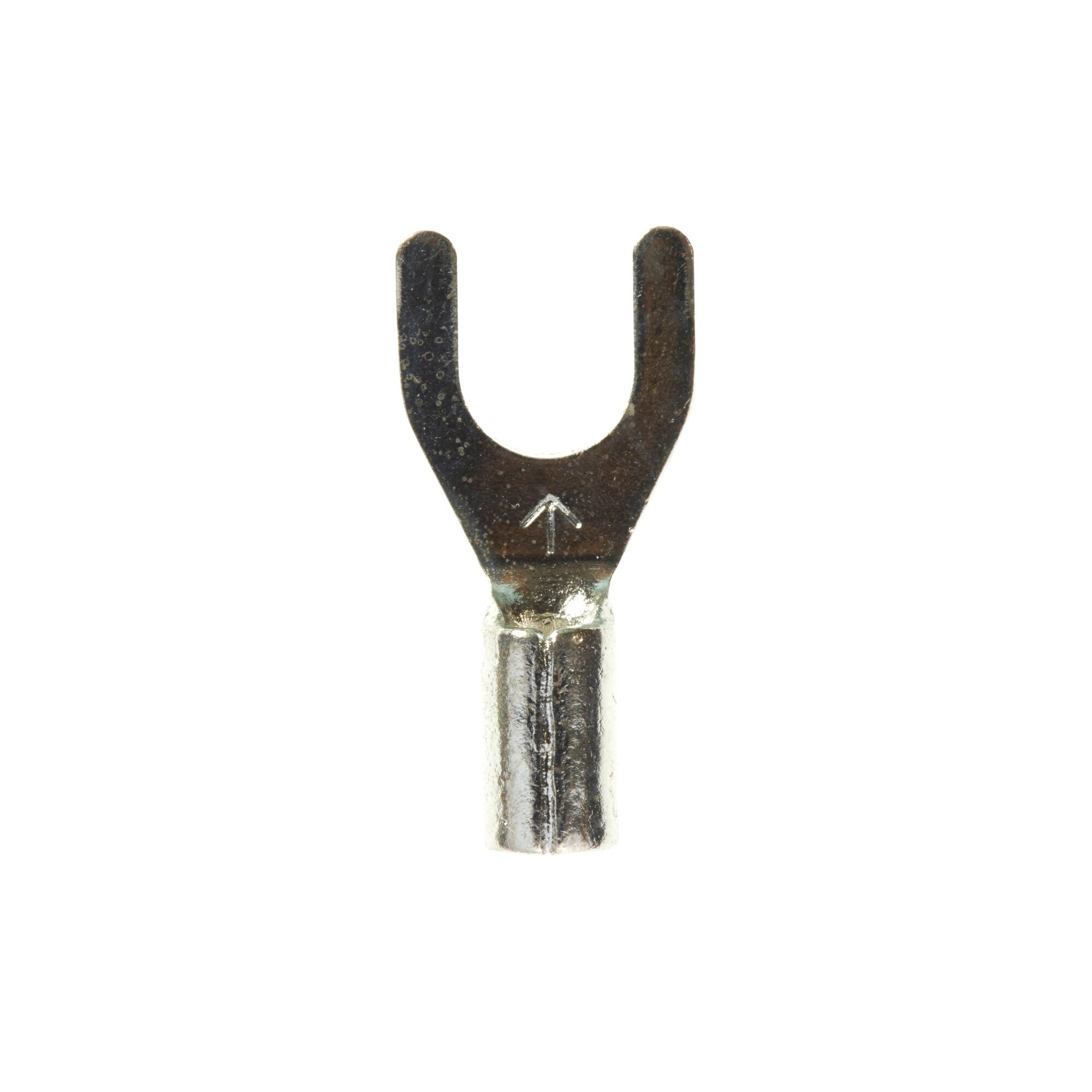

3M Scotchlok Fork, Non-Insulated Brazed Seam M14-10FK, 16-14 AWG

1000 per order, made to order

Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Beveled mouth offers easy insertion of wires

Wider-tongue design for use on free-standing studs

Stud size #10

Accommodates wire sizes 16 to 14 AWG

Electrolytic copper construction offers good conductivity

Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

600V-rated for building wire and 1000V for signs, fixtures or luminaires

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Standard Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.


Product Details

General Information
Manufacturer
3M
Part Number
3M-7100164016
Product Type
Crimp Terminals Lugs & Wire Nuts
