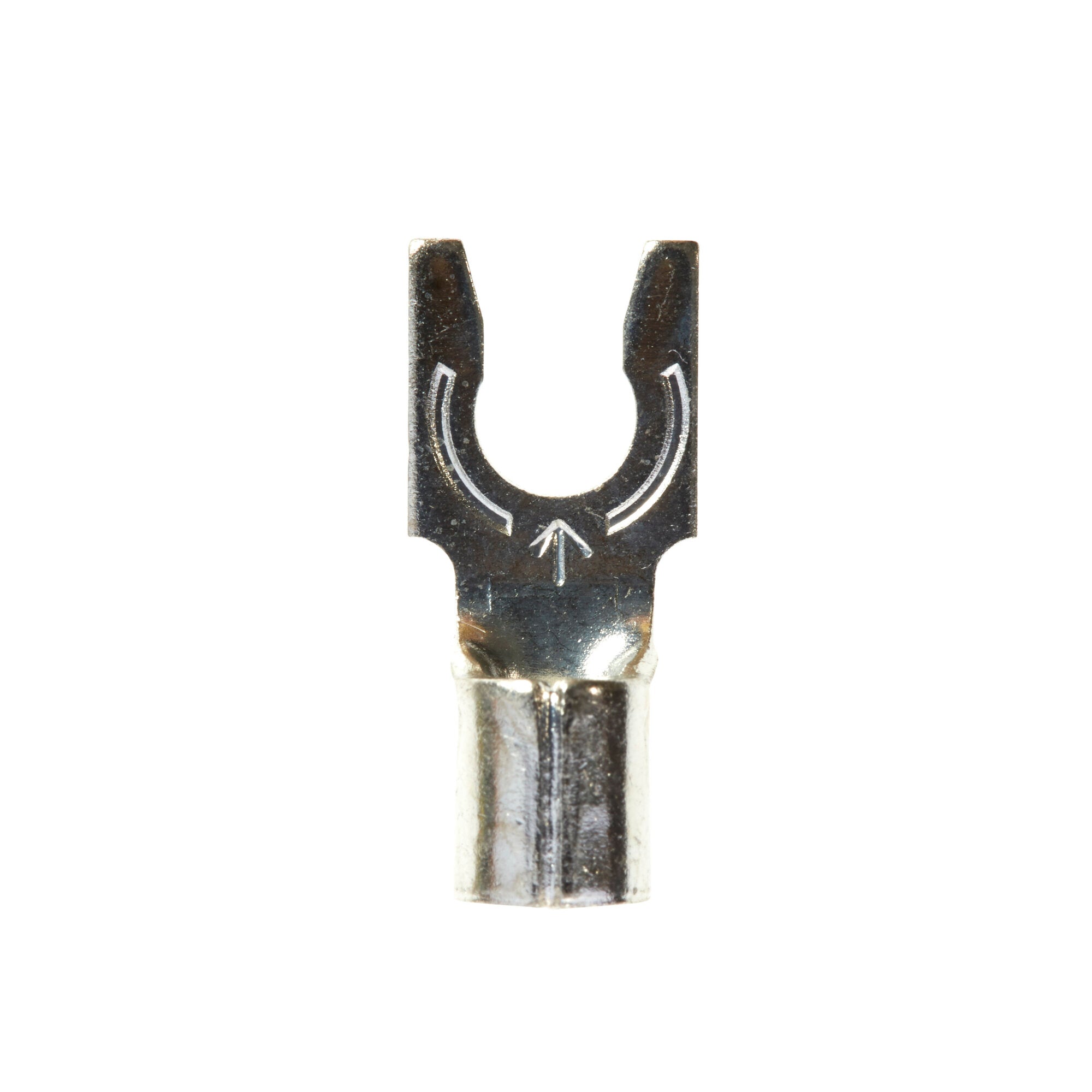

3M Scotchlok Locking Fork Non-Insulated, M10-8FLX

Features

500 per order, made to order

Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Beveled mouth offers easy insertion of wires

Spring-like tongue firmly fits around the stud

Stud size #8

Accommodates wire sizes 12 to 10 AWG

Electrolytic copper construction offers good conductivity

Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

600V-rated for building wire and 1000V for signs, fixtures or luminaires

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Locking Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
