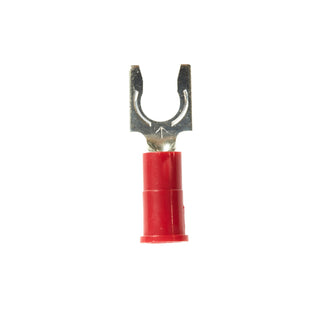

3M Scotchlok Locking Fork, Vinyl Insulated Brazed Seam MV18-10FLK, Stud Size 10

Features

1000 per order, made to order

Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance

Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Spring-like tongue firmly fits around the stud

Stud size #10

Accommodates wire sizes 22 to 18 AWG

Electrolytic copper construction offers good conductivity

Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

600V-rated for building wire and 1000V for signs, fixtures or luminaires

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
