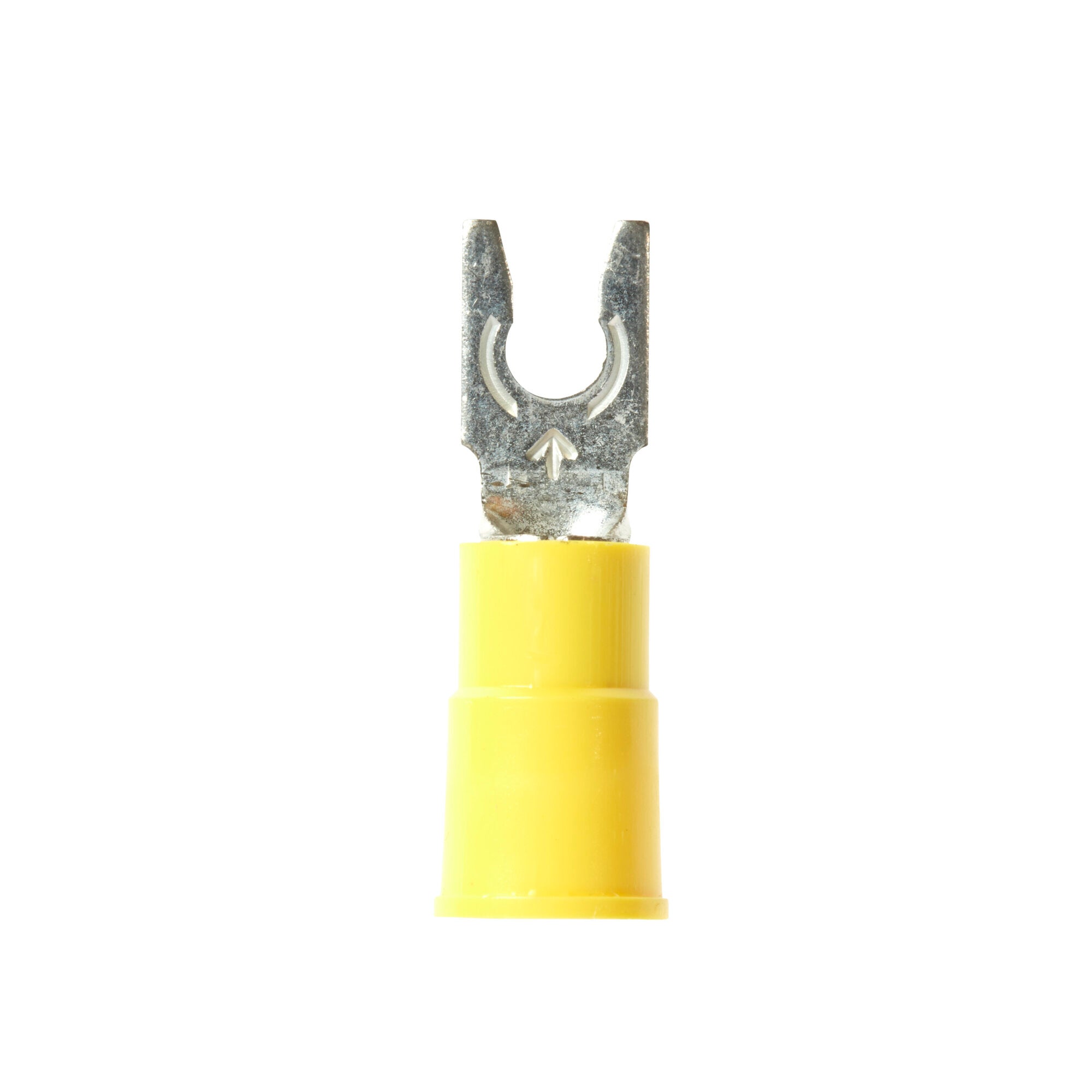

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU10-6FLK, Stud Size 6

Features

500 per order, made to order

Yellow vinyl-insulated, butted-seam barrel ensures secure fit and offers reliable performance

Funnel-designed, PVC sleeve offers easy insertion of wires

Spring-like tongue firmly fits around the stud

Stud size #6

Accommodates wire size of 12 to 10 AWG

Electrolytic copper construction offers good conductivity

Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires

UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, PVC sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
