About this item

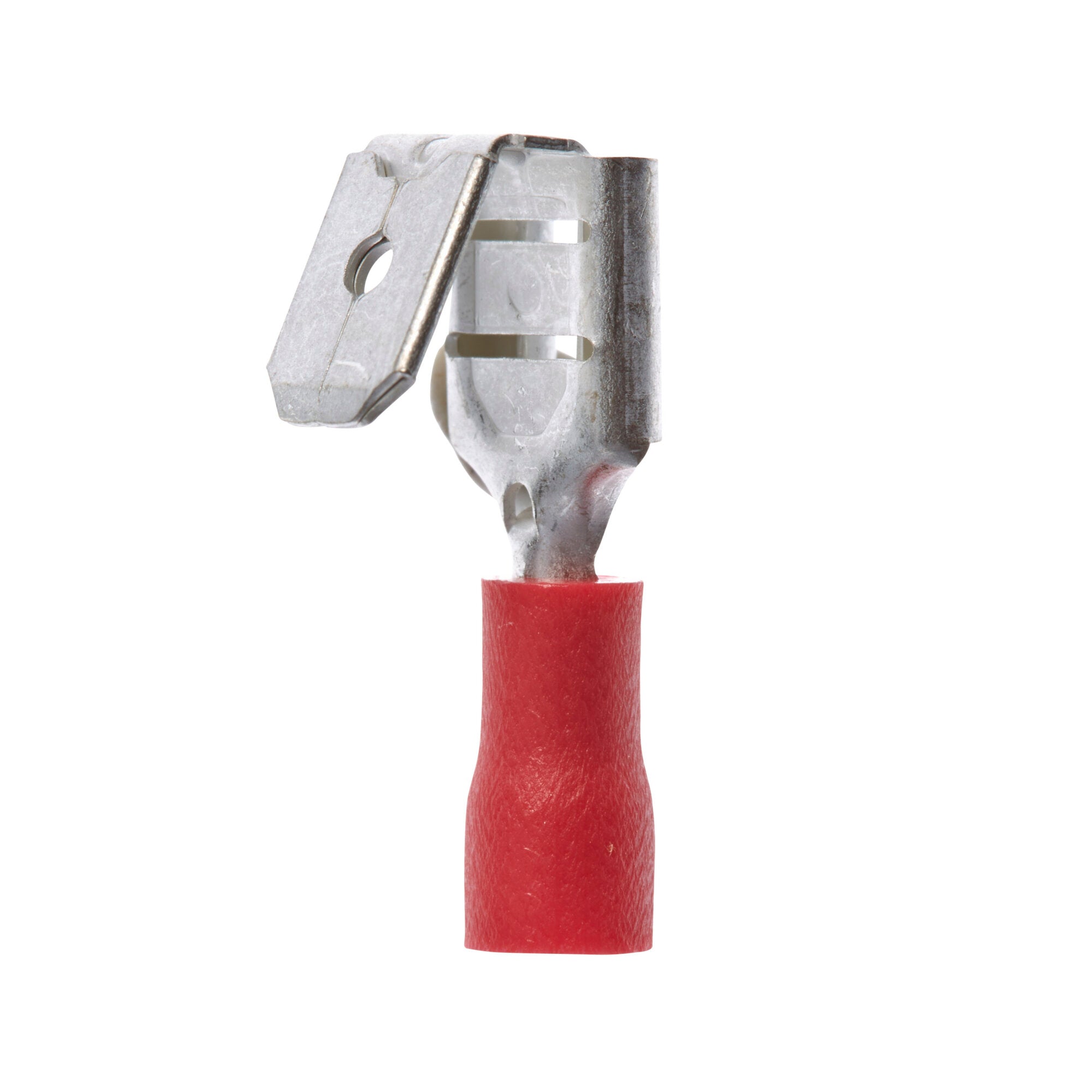

3M Scotchlok Piggy-back Disconnect Male Female Vinyl Insulated, MVU18-250DMFX-A
- 7100165280
- 3M
- Crimp Terminals Lugs & Wire Nuts
Features
Downloads
No files available.
Key points
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide male and female tab
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 1000/case
