Athena Power AP-MP4ATX20/B APOLLO Micro SFX-G ATX 200W replacement for E-machine, HP, Compaq, Gateway

No reviews
Original price $49.99 - Original price $49.99
Original price
$49.99
$49.99 - $49.99
Current price $49.99
Free shipping
Athena Computer Power is proud to introduce the first of its Micro SFX Power Supplies, the APOLLO 200 Watt PSU. With its compact design and compatibility with most E-machine units, this replacement or micro platform... Read more

Overview

Athena Power

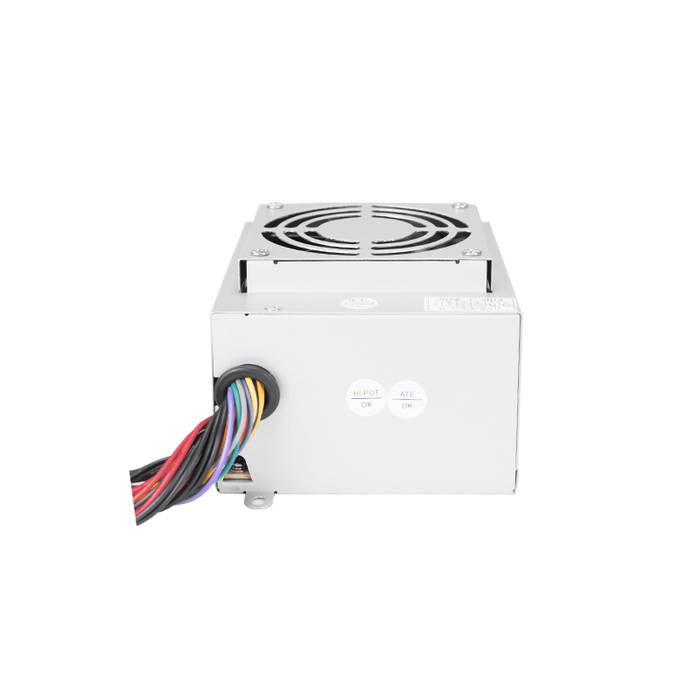

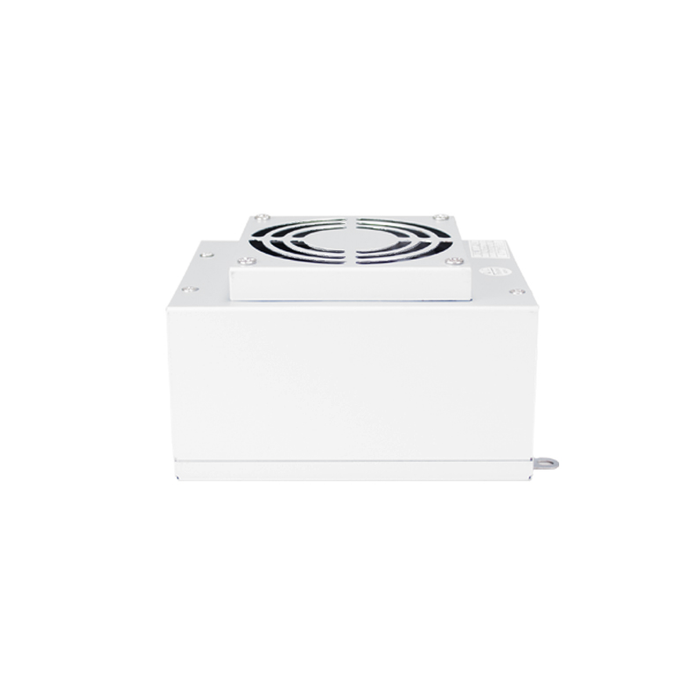

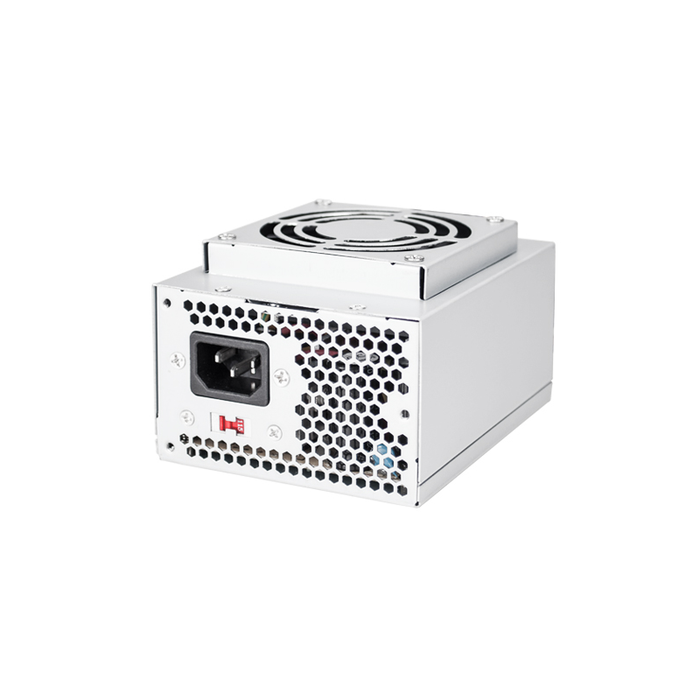

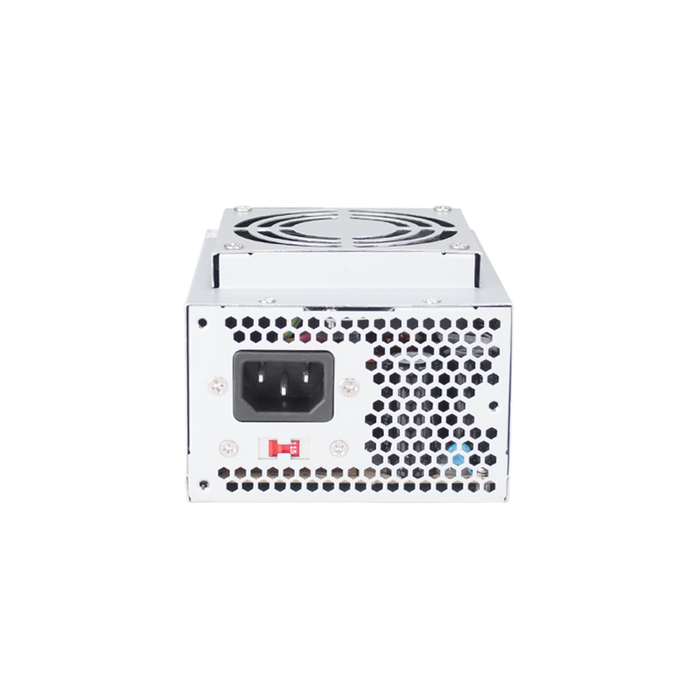

Athena Power AP-MP4ATX20/B APOLLO Micro SFX-G ATX 200W replacement for E-machine, HP, Compaq, Gateway

Athena Computer Power is proud to introduce the first of its Micro SFX Power Supplies, the APOLLO 200 Watt PSU. With its compact design and compatibility with most E-machine units, this replacement or micro platform PSU is focused on providing a silent and efficient PSU. The Micro SFX Design Micro SFX power supplies are known mostly as a replacement power supply, but it has now evolved and can be used for mini-ATX cases, custom built computers, mini-servers, and more. With the increase of wattage and efficiency, the micro SFX is a conventional PSU that can be used for multiple purposes. Designed for custom built PCs, mini-servers, and HTPCs. The APOLLO 200 Watt power supply will support the most current ATX motherboards V2.2 and lower. Its PCI-E 6-pin connector supports an additional VGA card. This PSU is ideal for custom-built PCs, mini-servers, and HTPCs. Smart Auto Fan Speed Controller Thermal fan speed control it will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels, of a PSU, becomes almost non-existent.

Product Details

General Information
Manufacturer
Athena Power
Part Number
AP-MP4ATX20/B
Product Type
Power Supply
California Residents
Power Description
Input Voltage Type
AC
Input Voltage
115/230 Volts AC
Output Voltage
+5V@12A, -5V@0.5A, +12V1@12A, +12V2@12A, +3.3V@12A, -12V@0.5A, +5V_SB@2.5A
Output Power
200 Watts
Physical Characteristics
Height
3"
Width
3.93"
Weight (Approximate)
2 lbs
Interfaces Ports
Connectors
ATX Connector 24 (20+4) Pin x1
P4-12V 4 Pin x 1
Molex 4 Pin x 4
Floppy 4 Pin x 1
HP Video 4 Pin x 1
