Athena Power AP-MTFX30 TFX 300W power supply

No reviews
Original price $58.99 - Original price $58.99
Original price
$58.99
$58.99 - $58.99
Current price $58.99
Free shipping
Athena Computer Power is proud to introduce the first in its Manual TFX Power Supply series, adding the Manual TFX 300W to its family. Designed for the TFX form factor to provide compact flexibility for... Read more

Overview

Athena Power

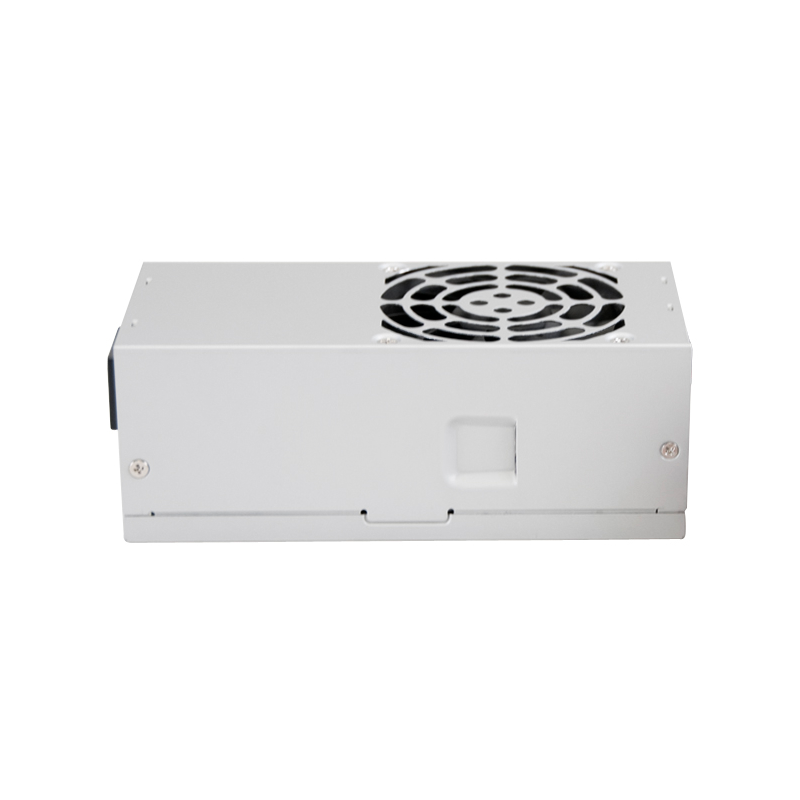

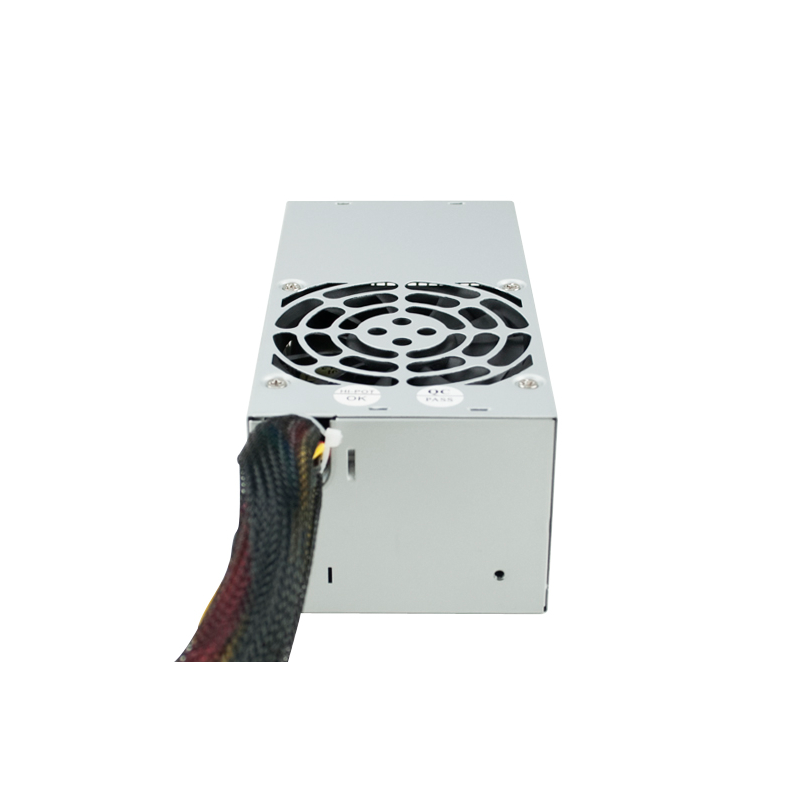

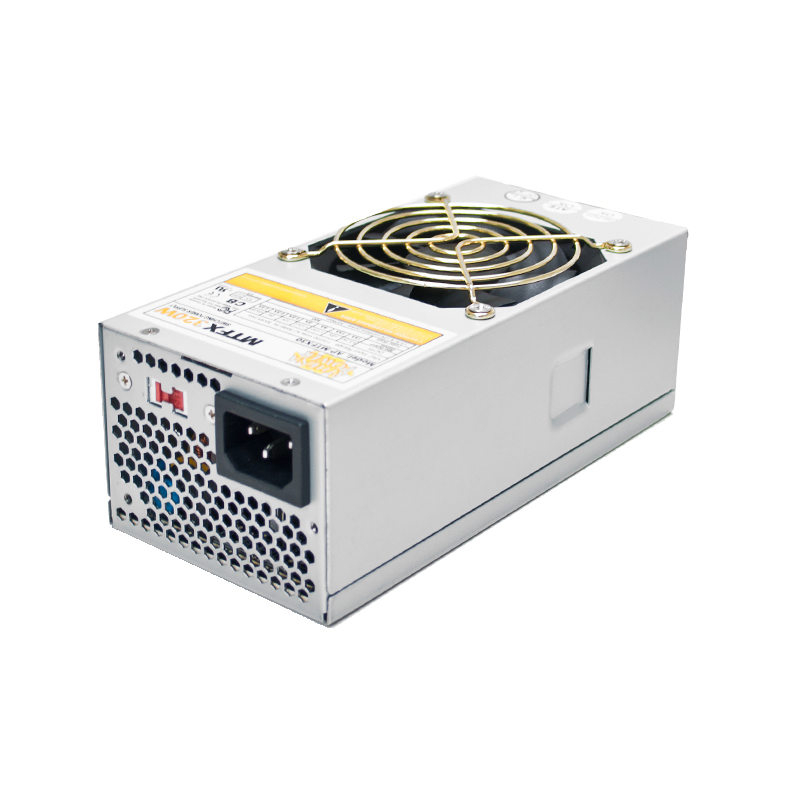

Athena Power AP-MTFX30 TFX 300W power supply

Athena Computer Power is proud to introduce the first in its Manual TFX Power Supply series, adding the Manual TFX 300W to its family. Designed for the TFX form factor to provide compact flexibility for small computer cases, also compatible with many main brand systems. The Manual TFX 300 Watt PSU output connector includes a 24(20+4) pin, P4-12V 4pin, SATA II 15pin, Molex 4pin, and FDD 4pin. This PSU also includes an internal 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation. Smart Auto Fan Speed Controller Thermal fan speed control will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels, of a PSU, becomes almost non-existent. Silence is Golden Athena Computer Power’s designers have designed a low ripple and noise feature that is included within the PSU, taking customer’s needs into consideration for whatever they may be using this TFX PSU for, the electrical ripple and noise has been significantly reduced for a more quiet system.

Product Details

General Information
Manufacturer
Athena Power
Part Number
AP-MTFX30
Product Type
Power Supply
California Residents
Power Description
Input Voltage Type
AC
Input Voltage
115/230 Volts AC
Output Voltage
+3.3V@16A, +5V@18A, +12V1@15A, +12V2@15A,-12V@0.5A,+5V_SB@3.0A
Output Power
300 Watts
Physical Characteristics
Height
2.5"
Width
3.3"
Weight (Approximate)
2.5 lbs
Interfaces Ports
Connectors
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
SATA 15 Pin x 3
Molex 4 Pin x 3
Floppy 4 Pin x 1
