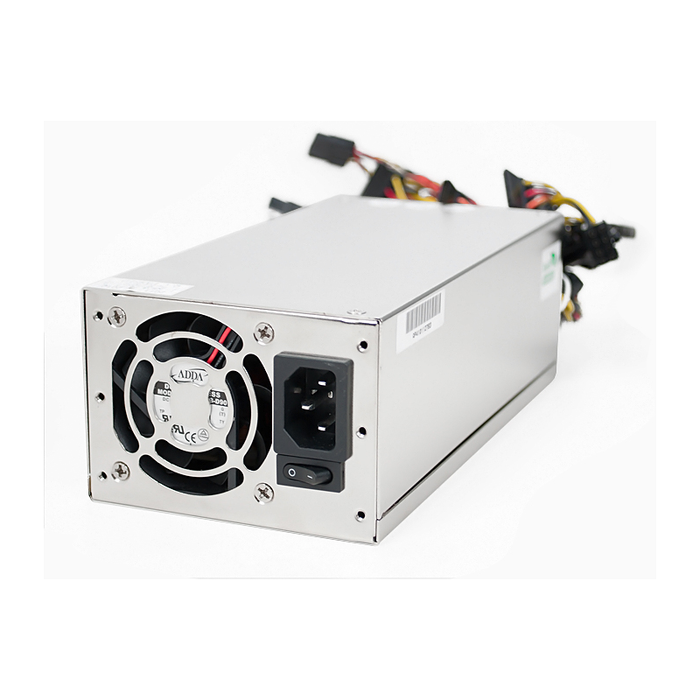

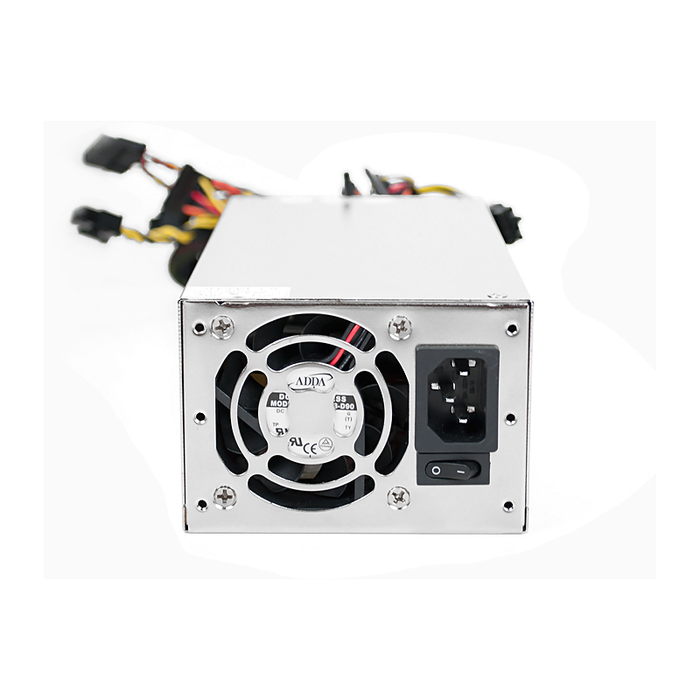

Introducing Athena Power's 800W 2U (AP-U2ATX80FEP8) power supply. Designed for the 2U form factor it provides a compact PSU and delivers flexibility for small industrial computer rackmounts. The EPS-12V 8 Pin and the additional P4-12V 4 Pin connector gives full support for core 2 dual processors. This PSU features an Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability. Also included, is its internal front and rear 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.
Multiple Support Function
Supporting ATX V2.3, EPS-12V Xeon, and i7 motherboards it also includes 2x PCI-E 6-pin connectors for advanced graphics cards running in quad SLI or Crossfire configuration. This PSU can be used for mini-servers, server assemblies, rackmount servers, and desktops.

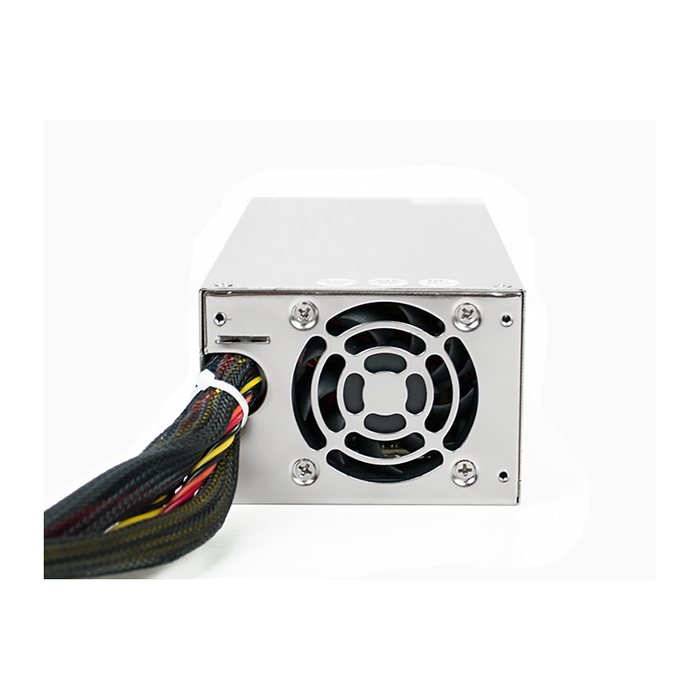

With its dual fan features located at the front and back of the power supply, the rear fan intakes the heat that is produced inside the server or system and pushes it through the front fan. This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system. While some other PSU fans work differently this dual fan design is targeted to maintain a reliable source of power and keeping the system cool. Some may second guess this dual fan feature because it will increase noise volumes, but with its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.
Smart Auto Fan Speed Controller
Thermal fan speed control it will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels, of a PSU, becomes almost non-existent.
Saving energy has become an important factor when choosing the correct power supply. 2U 800 Watt is one of the latest 2U PSU’s that brandishe 80PLUS Bronze certification. Providing efficiency during max and low loads this PSU lives up to the standards of today’s world.
**This product supports GPU/Gaming Server applications**
P4-12V 4 Pin x 1
EPS-12V 8 Pin x 2
PCIE 6 Pin x 2
PCIE 6 + 2 Pin x 2
SATA 15 Pin x 8
Molex x 4 Pin x 2
Floppy 4 Pin x 1
