Athena Power RM-1U1043HE12 Rack Mount
- RM-1U1043HE12
- Athena Power
- Server Chassis
Downloads
No files available.
Description

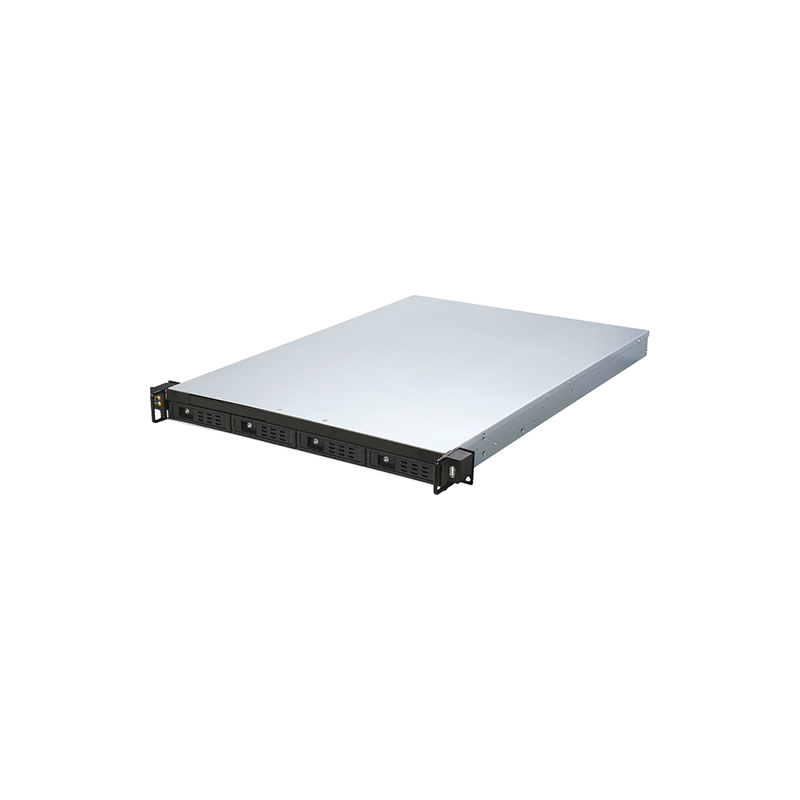

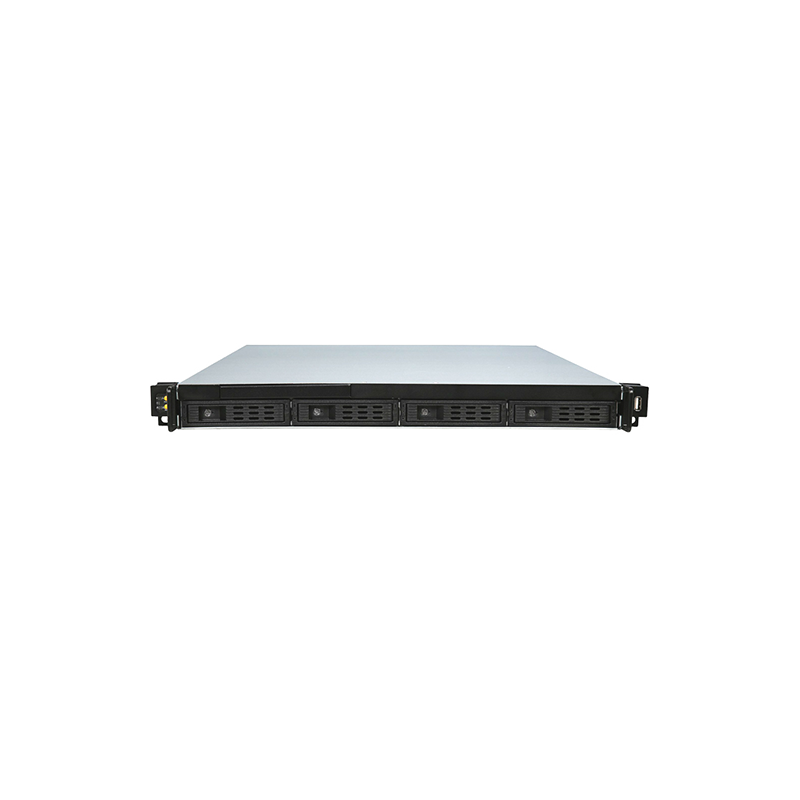

Athena Power RM-1U1043HE12 is a 1U rack mount server/storage chassis features a 12Gb/s mini-SAS backplane integrated 1 x mini-SAS HD SFF-8643 (4-Port) connector which supports up to 4 SAS(III,II,I)/SATA(III,II,I) Internface 3.5" or 2.5" SSD/HDD hot-swappable. This server/storage rackmount chassis is compitable with motherboard size from mini-ITX(6.7"x6.7") up to E-ATX(12"x13")
Product Key Features:
- Support a Standard ATX Form Factor Motherboard: Mini-ITX(6.7"x6.7"), MicroATX(9.6"x9.6"), ATX(12"x9.6") up to E-ATX(12"x13");
- Feature a 4-Port 12Gb/s backplane* supports up to 4 SSD/HDD hot-swappable;
- Support 1U Redundant, 1U Single or FlexATX power supply form factor;
- Feature 1 x External Slim ODD bay; 2 x Internal 2.5" HDD bay
- Feature 1 x USB2.0; Power On/HDD Activity/LAN1/LAN2/Warning LED Indicators;

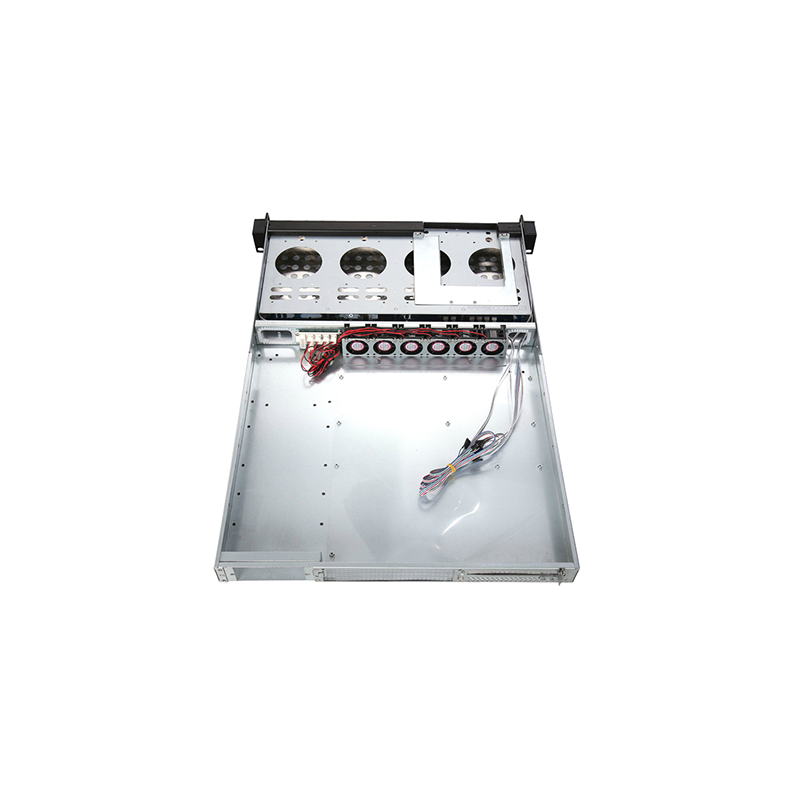

- Feature 6 x 40mm central fans;
*12Gb/s Backplane Key Features:
- Support up to 4 hot-swap SAS(III, II, I)/SATA(III, II, I) interface 3.5" or 2.5" SSD/HDD;
- Feature 1 x Mini-SAS HD SFF-8643 (4-Port);
- Feature 4 hot-swap 3.5"or 2.5" HDD caddy**;
- Backplane was designed installed in horizontal position in order to have max airflow;
**3.5" or 2.5" HDD Caddy Key Features
- Compatible with a 3.5" or 2.5" SSD/HDD;
- Feature anti-vibration and EMI grounding spring fingers;
- Feature 2-segment metal lock;
- Feature optical lightpipe LED indicator;
