Convenient and sophisticated, Aven’s Mighty Scope 5M USB Digital Microscope features a plug-and-play USB interface for an easy computer link, as well as adjustable magnification, image and video capture, a large working distance, and a broad magnification range of 10x to 200x.
Operators will experience reduced fatigue and increased productivity by viewing clear magnifications on a monitor rather than hunching over traditional microscope eyepieces.
The powerful scope also includes dimmable illumination an adjustable stand, as well as advanced software for image capture, annotation, and measurement, freeze frame, and compare mode - making it an essential tool for engineers, scientists, doctors, lab techs, forensic examiners, educators, and more.
- 10x to 200x~ magnification
- USB cable plugs into any computer to save, process and share images
- Compatible with Mac and Windows
- Fine focus stand - adjust the screen focus in small incriments
- Brightness wheel controls 8 LEDs
- Ergonomic design allows comfortable use in either hand

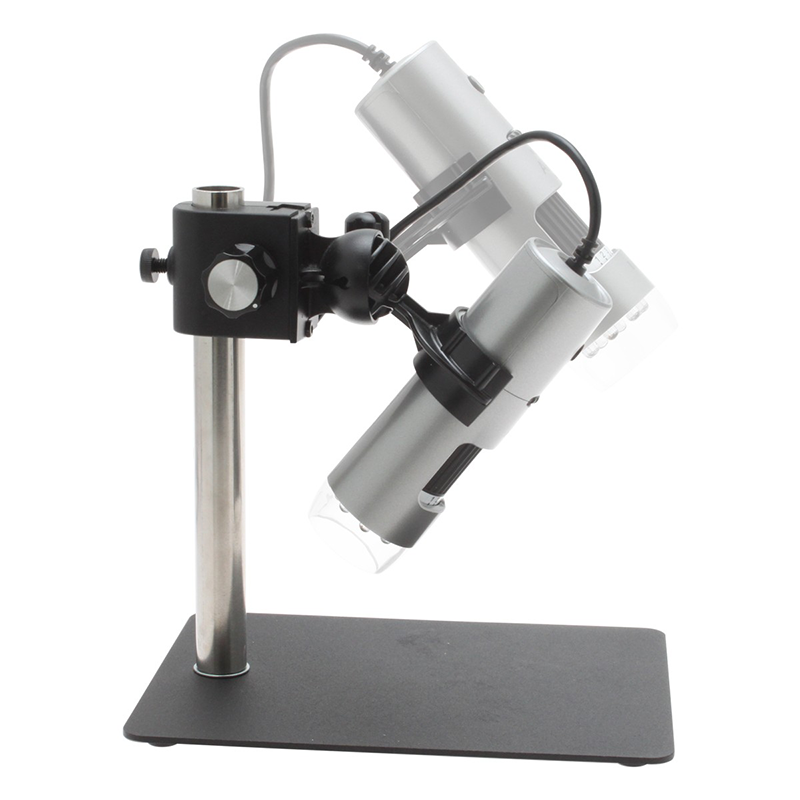

Fine Focus Stand
Effective Pixels: 2592 (H) x 1933 (V) Pixels (5MP)
Signal Output: Serial Data for USB Standard Compliant 2.0
Optical Magnification Based on a 24" Monitor:
Resolution - 640x480 | Max~ 190 | 30FPS
Resolution - 1024x768 | Max~ 190 | 30FPS
Resolution - 1920x1080 | Max~ 190 | 30FPS
Resolution - 2048x1536 | Max~ 190 | 30FPS
Resolution - 2592x1944 | Max~ 190 | 30FPS
Digital Magnification: 6* Optical Magnification
Gain Control: Auto
Snapshot Mode: Hardware & Software Controllable
White Balance: Auto
Power Source: 5VDC Through USB Port
O/S: Windows 10 / Max OSX 10.11 or Above
Power Consumption: 260mA (AVG)
LED Light Type: 8 White LEDs
At 10 x 190 mm I At 20 x 82 mm
At 30 x 43 mm I At 40 x 26 mm
Featuring advanced image sensor technology, the Mighty Scope v2 offers the best image quality of any Mighty Scope yet.
