Bytecc DPSP102 1X2 DisplayPort 1.2a 4K2K Powered Splitter, Support MST, HBR2, 3D Formats and GTC Assist (DP++)
-----> product

Bytecc DPSP102 1X2 DisplayPort 1.2a 4K2K Powered Splitter, Support MST, HBR2, 3D Formats and GTC Assist (DP++)

by Bytecc
$60.00 - $60.00
$60.00
$60.00 - $60.00
$60.00
Free shipping

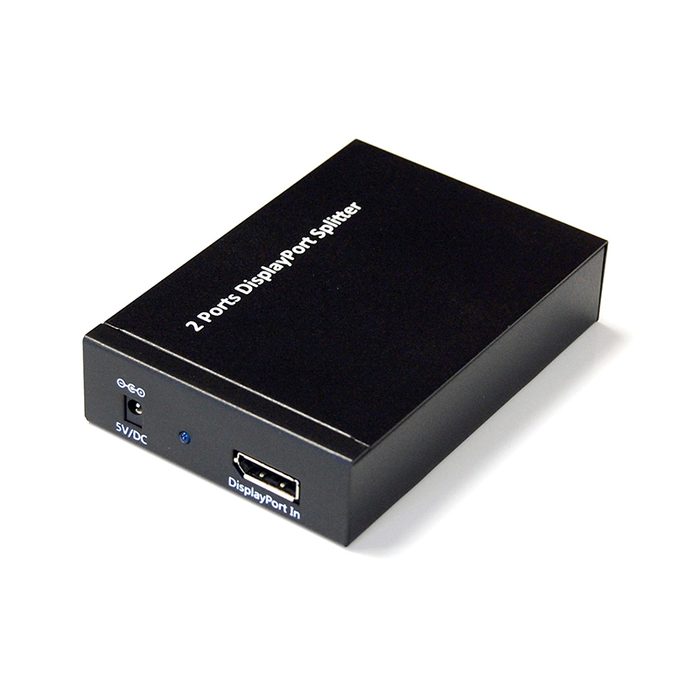

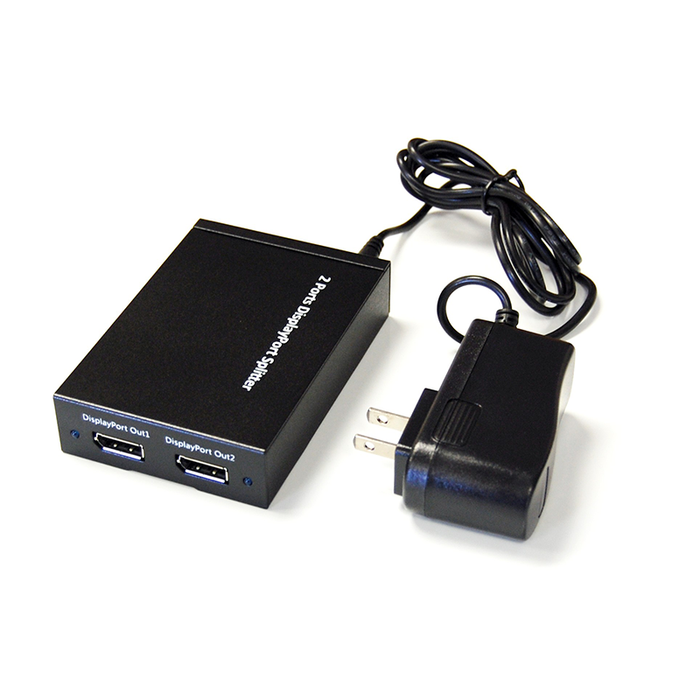

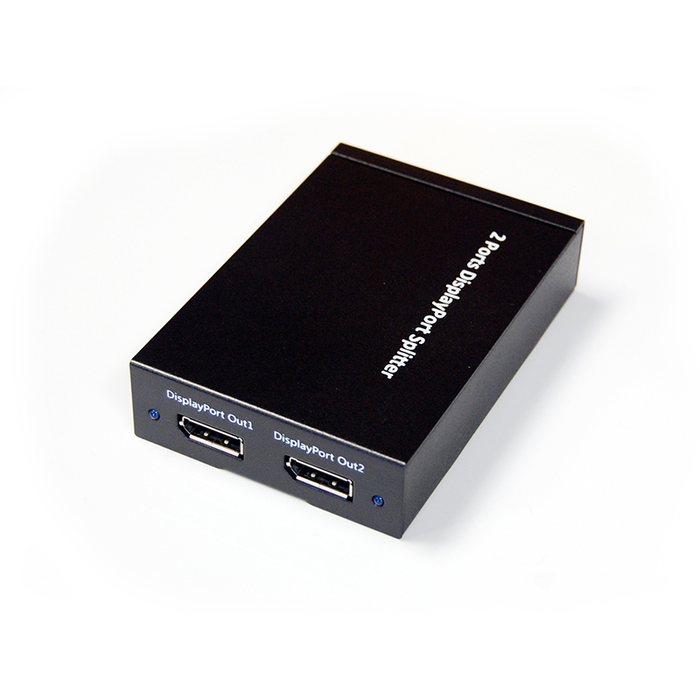

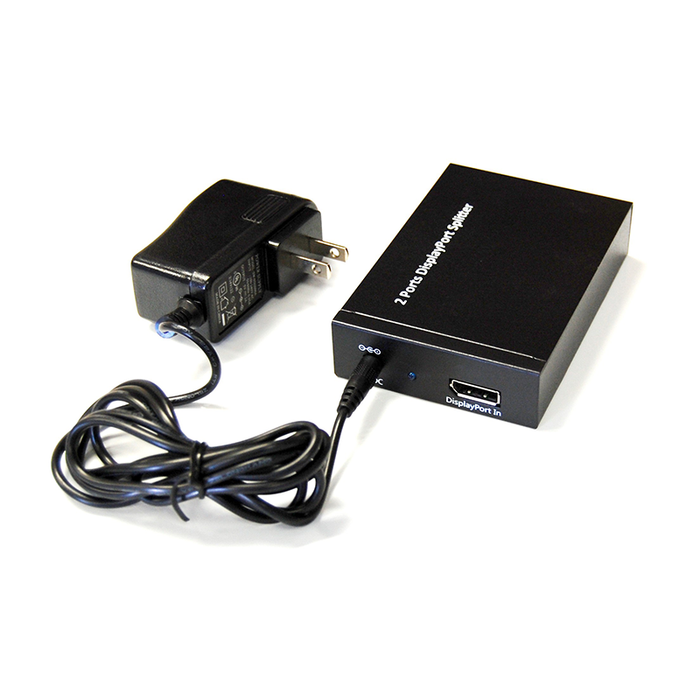

The DisplayPort 1x2 Splitter is a 1 input to 2 outputs DisplayPort dual mode splitter designed to allow any single DisplayPort enabled computer the ability to be displayed on two DisplayPort monitors simultaneously.

Overview

Brand img

Bytecc DPSP102 1X2 DisplayPort 1.2a 4K2K Powered Splitter, Support MST, HBR2, 3D Formats and GTC Assist (DP++)

The DisplayPort 1x2 Splitter is a 1 input to 2 outputs DisplayPort dual mode splitter designed to allow any single DisplayPort enabled computer the ability to be displayed on two DisplayPort monitors simultaneously.

Product Details

General Information
Manufacturer
Bytecc
Part Number
DPSP102
Product Type
Switch
California Residents
Proposition 65 Warning
Specifications
Color
Black
Miscellaneous
Features
Supports DisplayPort specification V1.2a, one dual mode input port and two dual mode output ports.

Resolution supoort up to 4K2K@60Hz, HBR2/HBR/RBR link rate.

Supports 5.4Gbps per lane (4 lanes at 21.6Gbps) bandwidth, HDMI® link rate:3.2Gbps data pair max, Supports audio up to PCM 7.1 (32-192kHz Fs sample rate).

Video Timing: 4K2K 60 Hz: 24 bits/pixel in DP 1.2a configuration. 1920 x 1080 (FHD) 240 Hz, 24 bits/pixel. All 3D formats defined in DP 1.2a and HDMI® 1.4 standards. All standard CEA861 timing formats. Audio Timing: All audio formats as specified in DP 1.2a and HDMI® 1.4 standards, SPDIF; 2-Ch LPCM, AC3, DTS, bit depth up to 24 bits, sample rate up to 192 kHz.

Support SST or MST
