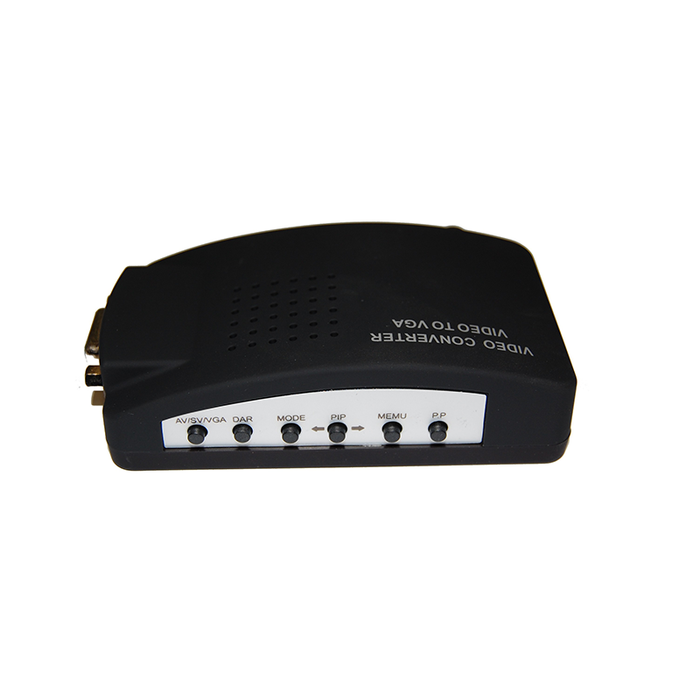

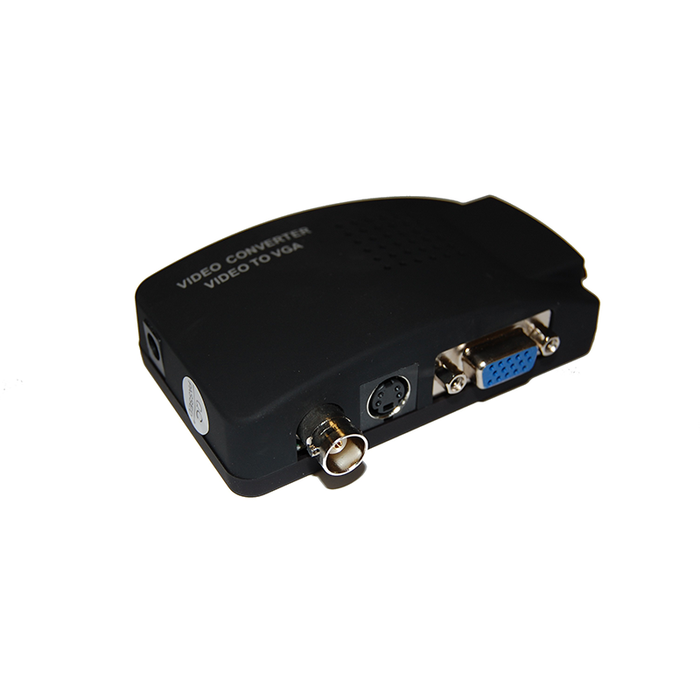

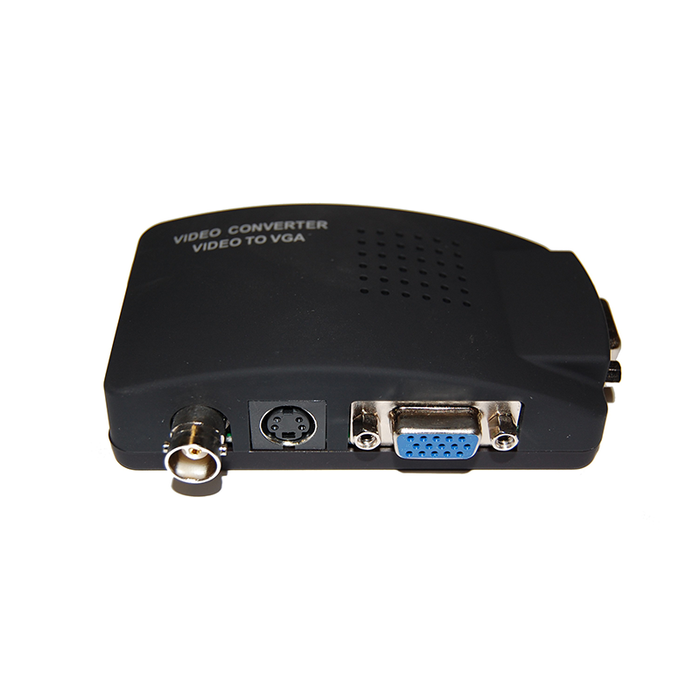

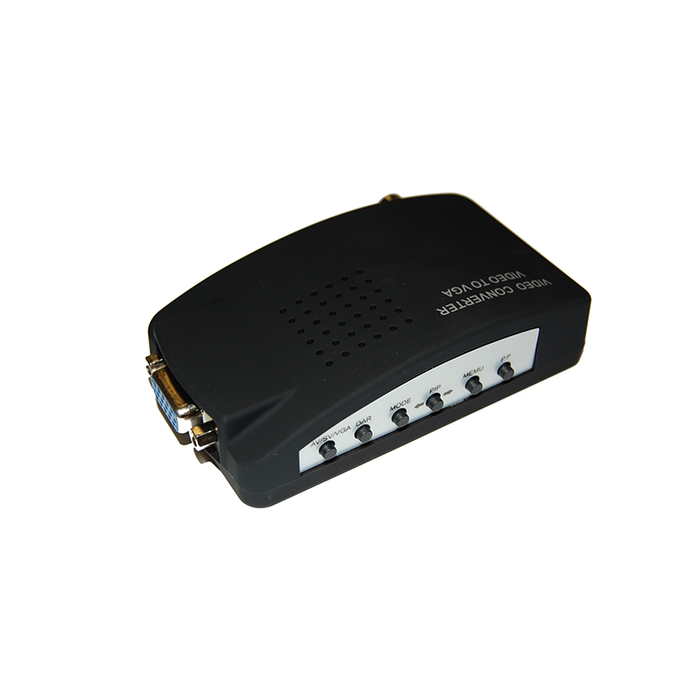

Bytecc HM104 BNC Composite and S-Video to VGA Converter (Wide screen)

Bytecc HM104 BNC Composite and S-Video to VGA Converter (Wide screen)

by Bytecc
No reviews
$40.00 - $40.00
$40.00
$40.00 - $40.00
$40.00
Free shipping
This Converter allows you to convert a composite BNC video signal to a VGA signal, thus allowing you to use a standard VGA/SVGA monitor with devices that have BNC video outputs. For example, surveillance DVRs,... Read more

Overview

Brand img

Bytecc HM104 BNC Composite and S-Video to VGA Converter (Wide screen)

This Converter allows you to convert a composite BNC video signal to a VGA signal, thus allowing you to use a standard VGA/SVGA monitor with devices that have BNC video outputs. For example, surveillance DVRs, security cameras and quad video processors can be displayed on your VGA/SVGA monitor. It is compact in size with easy plug and play installation.

Product Details

General Information
Manufacturer
Bytecc
Part Number
HM104
Product Type
Converter
California Residents
Proposition 65 Warning
Specifications
Color
Black
Miscellaneous
Features
Composite Video Input : BNC
Video Inputs: 1 X Composite BNC Video, 1 X S-Video And 1 X VGA
Video Output: 1 X VGA
Switch in between 3 Inputs andamp; output 1 to VGA
VGA Input pass through to VGA Output directly
Support PAL / NTSC
Supports Wide-Screen 16:9 And 16:10 LCDs
Optional Resolution: 800 X 600/60HZ, 800 X 600/75HZ, 1024 X 768/60HZ, 1280 X 720/60HZ, 1440 X 900/60HZ, 1600 X 900/60HZ, and 1680 X 1050/60HZ;
Lightness, Hue, Contrast, Saturation, Color are adjustable
Settings will Auto-saved when switched off
Composite Video andamp; S-Video resolution up to 1680 x 1050
3D Video-Processing used to provide display in rich colors
Dimension: 3.9'' X 2.4 X 1''
