Bytecc SDI-SP102 SDI 1X2 Splitter
-----> product

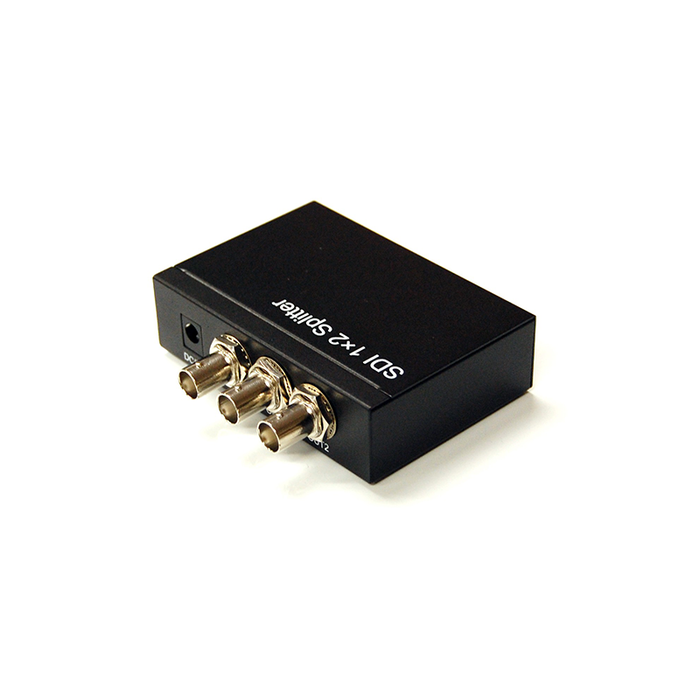

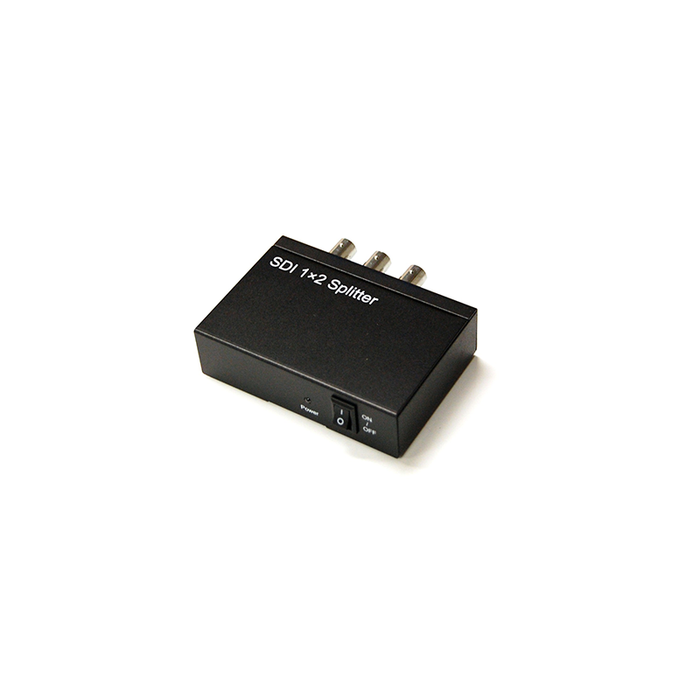

Bytecc SDI-SP102 SDI 1X2 Splitter

by Bytecc
$59.99 - $59.99
$59.99
$59.99 - $59.99
$59.99
Free shipping
This is a 1X2 SDI splitter, which make it possible to transfer 1 SDI signal to 2 monitors simultaneously. Up to two outputs could save you lots trouble of setting other signals when you want... Read more

Overview

Brand img

Bytecc SDI-SP102 SDI 1X2 Splitter

This is a 1X2 SDI splitter, which make it possible to transfer 1 SDI signal to 2 monitors simultaneously. Up to two outputs could save you lots trouble of setting other signals when you want to enjoy other SDI programs

Product Details

General Information
Manufacturer
Bytecc
Part Number
SDI-SP102
Product Type
Splitter
California Residents
Proposition 65 Warning
Specifications
Color
Black
Miscellaneous
Features
This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable.

Support multiple video resolutions: SD 525i and 625i

HD 720p 24, 25, 30, 50 and 60
HD 1080i 50, 60
HD 1080p 24, 25, 30, 50 and 60

Support multiple color space:

RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 sampled

Support data rates: 270M～2.97Gbps.
Support 8 bit, 10 bit, 12 bit of deep color.
