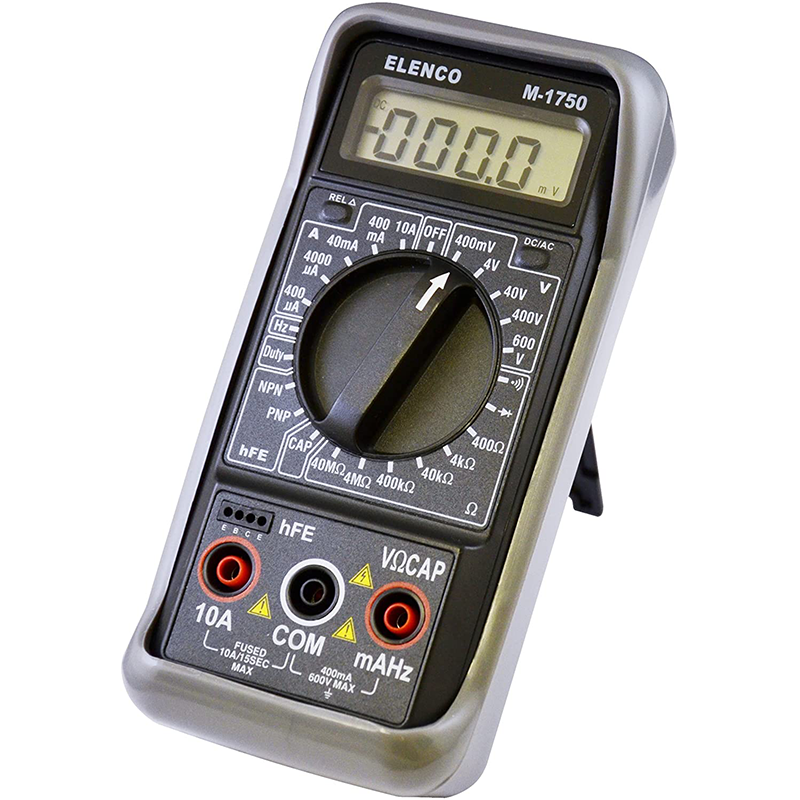

Elenco M-1750 Multimeters 3 1/2 Digit Cap./ Freq./ Trans. w/ Grey Boot

by Elenco
$38.99
Elenco Digital Mulitmeter. Features include: 3 3/4 Digit, 4000 Count Display, Frequency to 10MHz, Capacitance to 200µF, Diode and Transistor Test, Audible Continuity, AC/DC Current to 10A, 3-Way Overload Protection, Holster Included, Relative Measurement. Specifications... Read more

Overview

Brand img

Elenco M-1750 Multimeters 3 1/2 Digit Cap./ Freq./ Trans. w/ Grey Boot

Elenco Digital Mulitmeter. Features include: 3 3/4 Digit, 4000 Count Display, Frequency to 10MHz, Capacitance to 200µF, Diode and Transistor Test, Audible Continuity, AC/DC Current to 10A, 3-Way Overload Protection, Holster Included, Relative Measurement. Specifications as follows: AC + DC Volts: 400mV, 24V, 40V, 400V, 600V, Accuracy: 0.5% DC, 0.8% AC - Resolution 100µV, AC + DC Current: 400µA, 4000µA, 40mA, 400mA, 10A, Accuracy: 1.5% - Resolution 0.1µA, Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ, Accuracy: 1Ω - Resolution 0.1Ω, Capacitance: 4nF, 40nF, 400nF, 4µF, 40µF, 400µF, Accuracy: ±2% - Resolution 1pF, Frequency: 10Hz - 10MHz Autoranging, Accuracy: 0.5% - Resolution 1Hz.

Product Details

General Information
Manufacturer
Elenco
Part Number
M-1750
Product Type
Handheld Multimeter
Specifications
Voltage Range
600 V
Capacitance Range
200µF
Resistance Range
4000MΩ
Display
4000 Count, LCD Display
Display Type
Digital
Current Rating
10A
Miscellaneous
What's Included

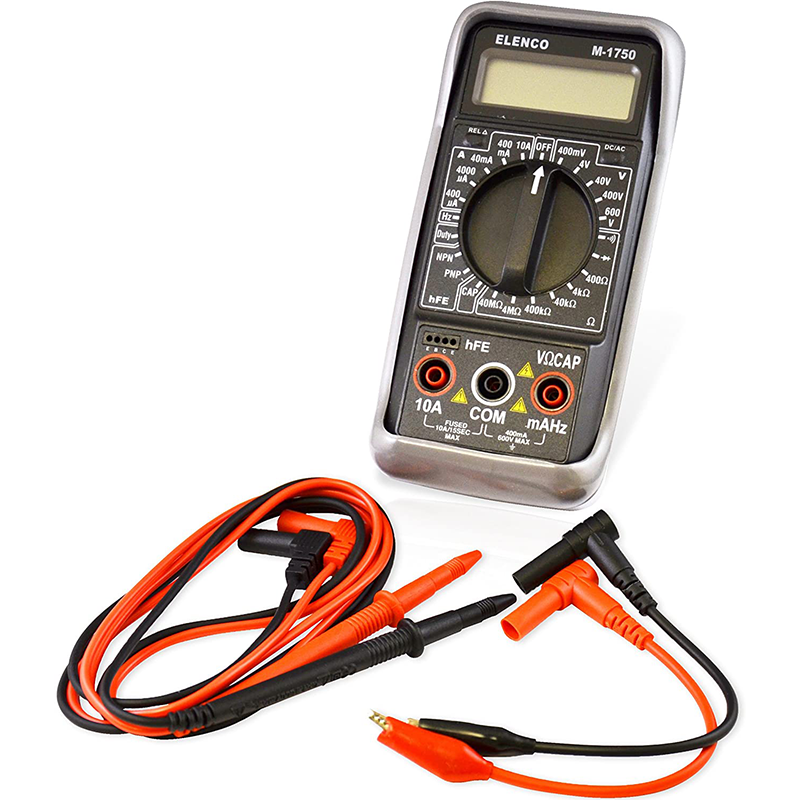

Test Leads, Holster, Manual, 9V battery included
Batteries
9V Battery Required. Included
Item Weight
12 ounces
