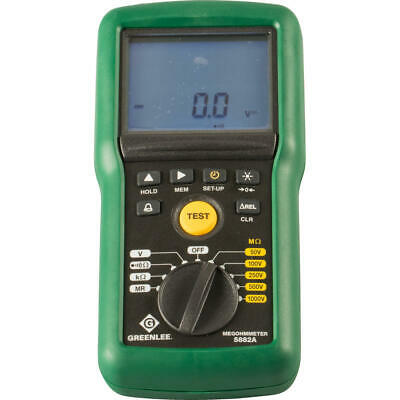

Greenlee 5882A 1kV Megohmmeter/Insulation Tester

Features

Calculations (automatic)

Potential Index and Dielectric Absorption Ratios

Tests Continuity, Resistance and Frequency Measurements

Programmable Alarms

Insulation Test, Resistance, Continuity

Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec

Delta Reading "ΔREL"

Data hold with 300 Entry Memor

Standby Mode (automatic) saves battery power

Hand Held, Compact Light Weight Form

Intuitive Layout with Rotary Function Selector and Large Test Button

Molded in Magnetic Mount for convenient hands-free measurements

Specifications

Accessories Included Test Lead Kit: Aligator Clips and Test Probes Carrying Case with Shoulder Strap Manual Batteries

Application Insulation Testing Cable and Rotary Equipment

Automatic Discharge Yes [on completion of insulation test]

Continuity Range <100Ω

Display LCD: Large/ Bright, easy to read Analog Bar Graph and Digital

Measurement Category 1kV

Range 10kΩ to 200GΩ

Replacement Part 5882A Test Lead Kit, 1kV Megohmmeter 5882A Carrying Case, 1kV Megohmmeter

Resistance Range 0Ω to 1000kΩ

Test Voltage 50V, 100V, 250V, 500V, 1kV

Type Hand Held

Voltage Rating CAT IV, 600V
