About this item
Greenlee DVM-25T DigiVolt® Single Stick Digital Voltmeter TP, 25kV
- 52074164
- Greenlee
- Specialty Testers
Downloads
No files available.
Key points
- Measures voltage from 50V to 25kV
- Auto-ranging – no settings required
- Capacitive Test Point mode
- Auto-shutoff and low battery indicator features
- Versatile for overhead and underground applications
Description

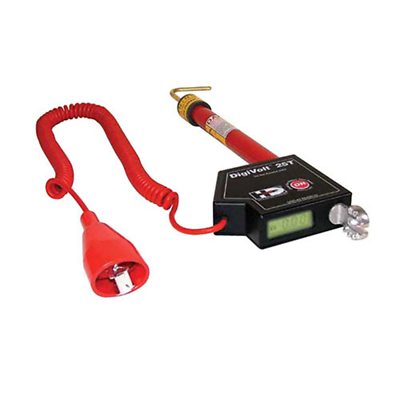

The DVM-25T is a compact, single stick version of the DigiVolt® voltmeters. It requires one 9V lithium or alkaline battery, which powers the unit and activates the backlight. The meter will shut off automatically a few minutes after the display reads zero, but not while voltage measurements are being made. The DVM-25T includes an elbow test point reading feature, which is displayed by a blinking decimal point ( ). The backlight is always on when the unit is powered on. The low battery feature will simply shut off or will not turn on the meter when the battery is low. The unit has a 0.4” LCD display that indicates 3-1/2 digits. The DVM-25T measures RMS AC and DC.
Measures voltage from 50V to 25kV
Auto-ranging – no settings required
Capacitive Test Point mode
Auto-shutoff and low battery indicator features
Versatile for overhead and underground applications
