About this item
Downloads
No files available.
Key points

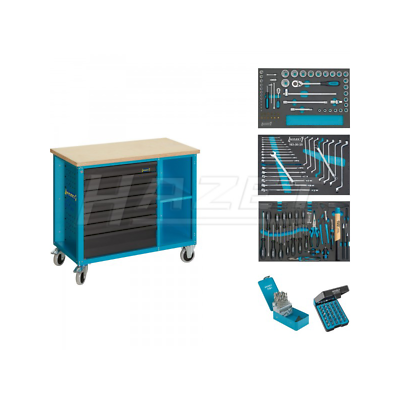

- 6 x flat drawers and 1 x high drawer as well as 2 compartments in the side section
- Complete with 169-piece tool assortment in Safety-Insert-System soft foam insert
- Large ball-bearing wheels (∅ 125 mm), easy maneuverability, even with high dynamic load
- 2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley, fixed swivel bearing prevents the castors from swiveling, e.g. on inclined surfaces
- Grey non-marking elastic tires enable smooth movement
Description
Product information
With 7 drawers (6 x flat and 1 x high drawer as well as 2 compartments in the side section)
Large ball-bearing wheels (∅ 125 mm),
easy manoeuvrability, even with high dynamic load
2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley,
fixed swivel bearing prevents the castors from swivelling,
e.g. on inclined surfaces
Protective ring prevents dirt and threads from getting in
Grey non-marking elastic tyres enable smooth movement
Two-stage locking concept:
- Central locking, lockable with cylinder lock and 2 keys
-Individual drawer locking prevents unwanted drawer opening
- 100% sliding-out with ball-bearing drawer slides
Two compartments in the side section:
Loading capacity top: 15 kg / bottom 35 kg
Boards adjustable
Optional: 177 W-21: Door for right storage compartment, lockable, incl. 2 keys
Loading capacity (static): 750 kg
Worktop: Wood multiplex birch, replaceable
Loading capacity per drawer: 20 kg
Colour: HAZET-BLUE
Total length: 1040 mm
Height: 934 mm
Width: 520 mm
Net weight: 85 kg
Drawers shallow: 6 x 80 x 527 x 348 mm
Drawers tall: 1 x 165 x 527 x 348 mm
Drawer size for order system: 3/3
Number of separation sheets: 7
Height of worktop: 934
Number of fixed castors: 2 (∅ 125 mm)
Number of swivel castors: 2 (∅ 125 mm)
The drawers are equipped with one separation sheet each as standard
Drawer-Division-System – suitable for HAZET "Safety-Insert-System" and plastic drawer inserts
Side with fastening panel, e.g. for HAZET tool hooks of the article group 112, can holder, etc.
Number of tools: 169
