About this item

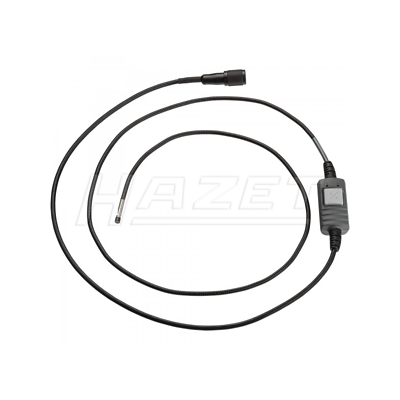

Hazet 4812-16 Probe for video borescope
- 4812-16
- Hazet
- Borescopes
Downloads
No files available.
Key points
- 4.9 mm ⌀
- Visual angle switching function 90° + 0°
- Dimmable LED
- Metal connector
- Probe protection rating IP 67
Description
Product information
4.9 mm ∅
Visual angle switching function 90° + 0°
Dimmable LED
Metal connector
For probes with new, improved connection (4812 N) to be used in conjunction with the operating panels of the sets 4812-10/4 S ∙ 4812-1/7 ∙ 4812-1/6 ∙ 4812-1/8
For connection with older operating panels, please use the adapter 4812-30
Camera resolution: 325 (H) x 250 (v) = 76800 pixels
Aperture angle of the camera: horizontal 46°, vertical: 34°, diagonal: 56°
Depth of field: 10 to 60 mm
Probe length: 1000 mm
Weight: 220 g
Total length: 1000 mm
Diameter: 4.9 mm
Temperature range: 0°C – 55°C
