Hazet 4903/2 Clamping disc 4903-2 and universal tensioning jaw

by Hazet
$5,452.50
Product information     Increased safety – thanks to load-free installation!     By using the clamping disc and the universal tensioning jaw, the basic support 4903-1 or the set 4903/2 A becomes a completely... Read more

Overview

Brand img

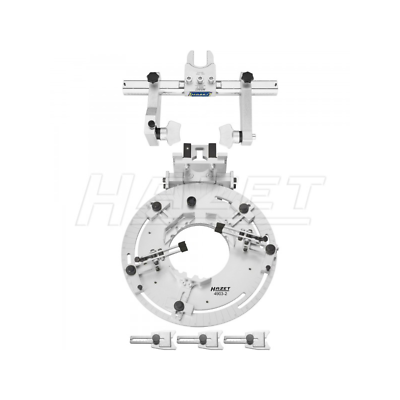

Hazet 4903/2 Clamping disc 4903-2 and universal tensioning jaw

Product information

    Increased safety – thanks to load-free installation!

    By using the clamping disc and the universal tensioning jaw, the basic support 4903-1 or the set 4903/2 A becomes a completely stationary universal spring vice

    2 pieces, contents:

    4903-2 universal clamping disc, adjustable

    4903-3 universal tensioning jaw (adjustable), safety adapter included

    Can be used for almost any spring strut / shock absorber

    Load-free disassembly / assembly with completely relieved shock absorber

New seating and assembly concept

    Swivelling in horizontal or vertical working position,

    HAZET recommends ergonomic working height: adjust vertically, operate horizontally

    Damage to shock absorbers and head plates impossible

    (no overload risk)

    Simple, lockable strut mount

High safety

    Consistently reliable mounting of head plates

    Thread damage to piston rod impossible

    Permanent fixation of spring throughout operation

Secured investment – by using existing components of SYSTEM 4900

    Existing basic units 4900-2A and all tensioning jaws of System 4900 may be used

    Use of future applications is assured

Allows record keeping by scaling

    If recurring, significant time savings by scaling

    Firm fixation eliminates readjustment at the same spring strut (left / right)

4 steps to success:

1. Mount spring strut on clamping disc above gripper and brakes

2. Grip spring with universal tensioning jaw

3. Actuate clamps with reversible ratchet, cordless screwdriver or pneumatic ratchet

4. Remove shock absorber load-free and install new one

(then reverse order)

    Made in Germany

    Net weight: 43.7 kg

    Number of tools: 2



Product Details

General Information
Manufacturer
Hazet
Part Number
4903/2
Product Type
Miscellaneous Tools
