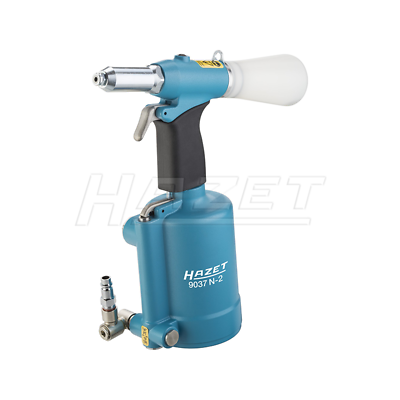

Hazet 9037N-2 Blind Rivet Gun

Features

Product information

    Pneumatic / hydraulic

    Suitable for stainless steel rivets up to 6.4 mm

    Professional riveting, suitable for continuous operation with rivets of up to 6.4 mm made of steel, stainless steel, aluminium and copper

    Possible rivet sizes: 3.0 -  3.2 -  4.0 - 4.8 - 5.0 - 6.0 and 6.4 mm

    5 nose pieces (one pre-installed)

    Thread size of nose pieces: M10 x 1.25

    Total stroke: 15.8 mm

    High tractive power: 14700 N

    Particularly low noise level

    With rotary joint for flexible operation

    With rivet and nose piece template on the underside of the rivet gun

    Storage of the different nose pieces on the underside of the rivet gun

    Top up simple oil using special design of the rivet gun

    Includes maintenance set for oil control (oil-supported pressure build-up)

    Air requirement: 2.64 l/stroke

    Air connection inlet: Inside thread (IG) 12.91 mm (1/4″)

    Coupler plug: nominal size 7.2 (included)

    Hose diameter (recommended): 10 mm

    Working pressure (bar): 6.3

    Cold insulated handle

    Total length: 296.6 mm

    Net weight: 2.11 kg
