Description

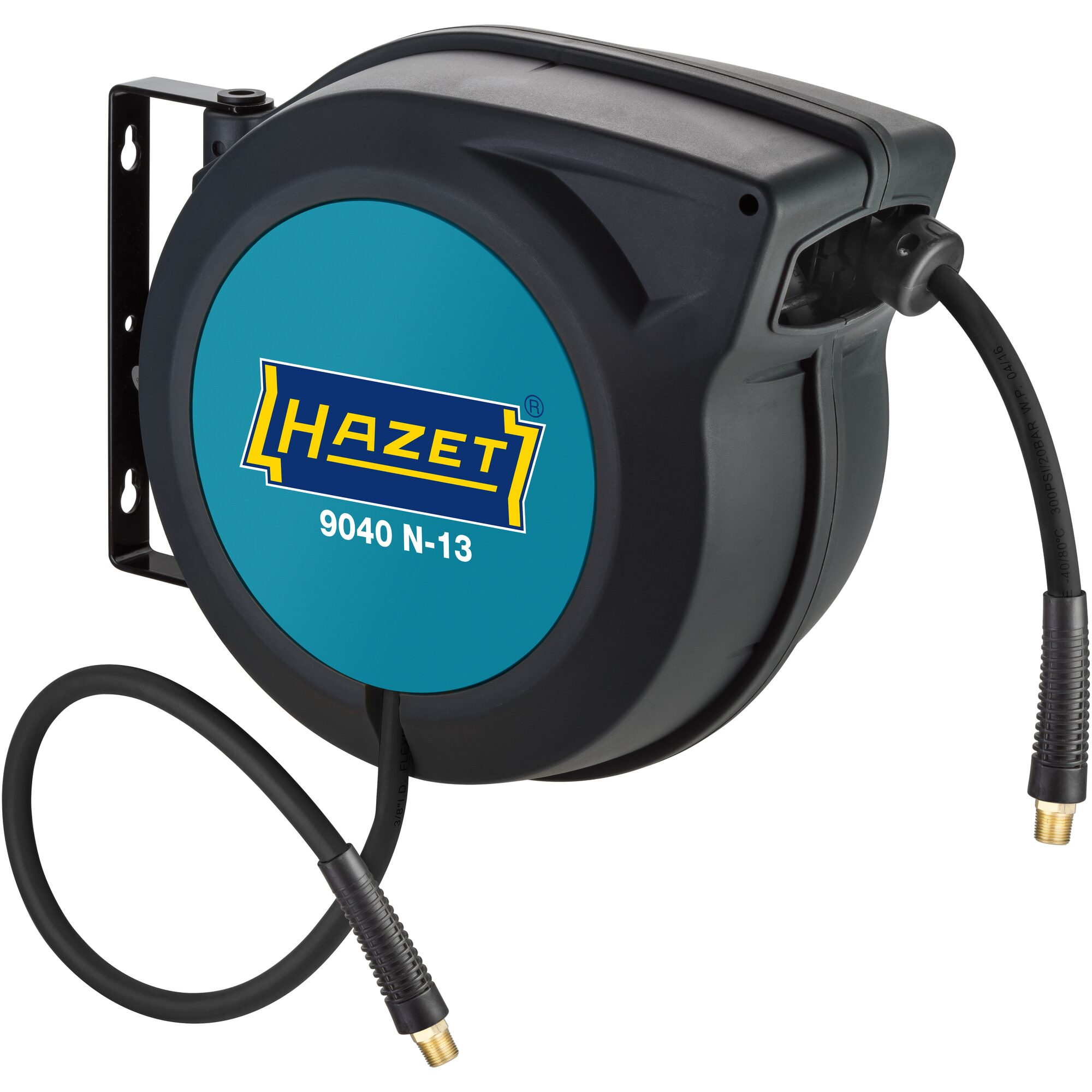

Hose stop at any point with “Stop at any point” function. Automatic guidance winds the hose neatly. Braked winding to prevent risk of accidents. Suitable for compressed air or water. Dimensions: 500 x 418 x 210 mm. Hybrid polymer hose, black. Inside diameter of the hose: 13 mm (1⁄2″). Hose length: 15 m. Length of connection hose: 1 m. Integrated drill template for mounting on cardboard packaging. Meets all relevant requirements defined in the European Directives for Machinery 2006/42/EC. Closed special plastic case, supplied with rotating metal mounting bracket made for separate installation at the workplace Borehole spacing of the mounting bracket: 186 mm. Air connection inlet: Outside thread 20.96 mm (1/2″). Air connection outlet: Outside thread 20.96 mm (1/2″). Max. working pressure [bar]: 20 bar. Dimensions / length: 15000 mm. Net weight: 9.5 kg. Temperature range: -40°C – 80°C.
