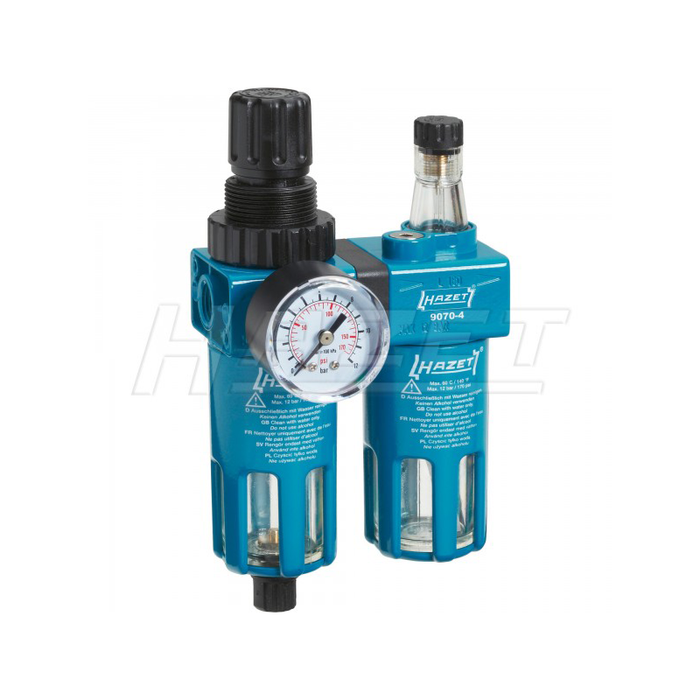

Hazet 9070-4 Maintenance Unit

Features

Product information

    Dual, consisting of filter-pressure reducer, oil-mist lubricator and manometer

    Air inlet thread 12.91 mm (1⁄4")

    Air flow at 6.3 bar: 1800 Nl/min

    Capacity of filter-pressure reducer: 30 ml

    Capacity of oil-mist lubricator: 40 ml

    Connection manometer: 3.2 mm (1/8")

    Max. pressure: 16 bar (1/2" and 3/8") 12 bar (1/4"),

    max. working pressure: 12 bar (1/2" and 3/8") 10 bar (1/4")

    Pressure indication: 0.5 – 12 bar

    Filter grade: 10 µm

    Recommended lubricant: class F (Sprinter ADVP 22)

    Air connection inlet: Inside thread (IG) 12.91 mm (1/4″)

    Air connection outlet: Inside thread (IG) 12.91 mm (1/4″)

    Net weight: 0.58 kg

    Temperature range: -10°C – 55°C
