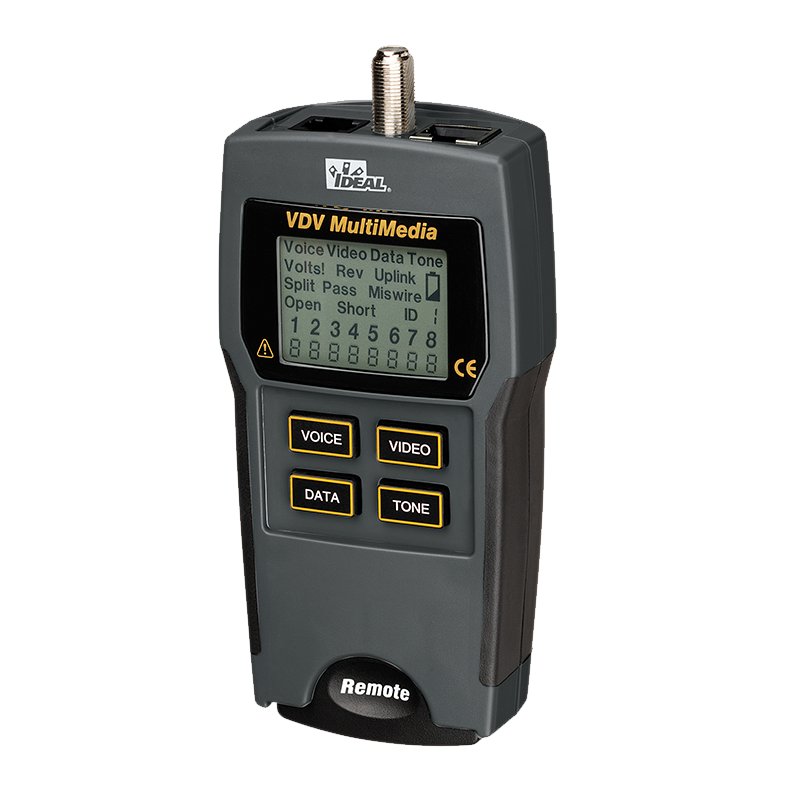

Ideal 33-856 VDV Multimedia Voice/Data/Video Wiremapper and Tester

by IDEAL
No reviews
Original price $94.49 - Original price $94.49
Original price
$94.49
$94.49 - $94.49
Current price $94.49
Free shipping
The 33-856 VDV Tester is an LCD based all-in-one basic Voice-Data-Video tester for verifying proper wiring of low-voltage and data communications cables. The primary function of the VDV is the wiremap test. The wiremap test... Read more

Overview

IDEAL

Ideal 33-856 VDV Multimedia Voice/Data/Video Wiremapper and Tester

The 33-856 VDV Tester is an LCD based all-in-one basic Voice-Data-Video tester for verifying proper wiring of low-voltage and data communications cables. The primary function of the VDV is the wiremap test. The wiremap test visually shows, pin by pin, whether a cable is terminated properly at both ends and if there is continuity from end to end. The VDV can test Data/Ethernet RJ-45 (8P8C), Voice/Phone RJ-11/12(6P6C/6P4C), and Video/coax cables. The LCD visually displays “PASS” or “ERROR” after each test to verify if the cable is terminated correctly.

In Data mode, the RJ-45 port tests RJ-45 connector cables terminated to Cat 3/5/5e/6/6a twisted pair cables. When the test is activated, VDV checks each conductor of the cable for any opens terminated or cut conductors), shorts (cut or nicked conductors that come into contact), miswires (wires out of order – not consistent at both ends), reversals, or split pairs (wired correctly but using wrong conductor order and grouping). VDV can accurately identify and alert the user to uplink/crossover cables.

Test results are displayed on the LCD in a pin-to-pin format. Error types are also displayed on the LCD.

Shield continuity can also be tested on shielded RJ-45 connectors and cables.

In Voice mode, the RJ-11/12 port is active. Testing is similar to the Data test, but tests up to 6 conductors instead of 8.

In Video mode, the F port is active. Coax cables are tested for opens and shorts on the pin and shield.

For all tests, the included main remote (Remote #1) is used to terminate the far end of the cable run. The main remote is stored in the base of the tester when not in use.

A built in analog tone generator is also included and can be used in all testing modes. The tone generator has 4 user selectable tones. Toning helps to locate and identify a single cable that is within a bundle of cables. The tone generator has the ability to tone by pin, by pair, or the all conductors at once. This allows the user to more precisely locate errors within the cable, such as finding opens.

The 62-164 Amplifier probe (sold separately) is recommended for use in amplifying the tone signal.

The VDV is also available in the popular 33-866 TTT Test-Tone-Trace Kit. This all-in-one kit includes the 62-164 Probe, carrying case, several patch cables, and BNC/RCA coax adapters.



Voice/Data/Video LCD based wiremapper verifies cable continuity

Identifies errors by pin: shorts, opens, miswires, reversals, and split pairs

For twisted pair, coax, and phone type cables

Designed for Cat 3/5/5e/6/6a cables. RG59/6/ 6 Quad

RJ-45; RJ-11/12; and Female F port interfaces

Tone generator with 4 selectable tones

Main remote included

VDV tester uses a 9V battery – included


Product Details

General Information
Manufacturer
IDEAL
Part Number
33-856
Product Type
Voice/Data/Video Tester
California Residents
Specifications
Color
Black
Material
Plastic
Miscellaneous
What's Included
LCD based all-in-one basic Voice-Data-Video Tester
Features
Multiple options for verifying proper wiring of low-voltage and data communications table
