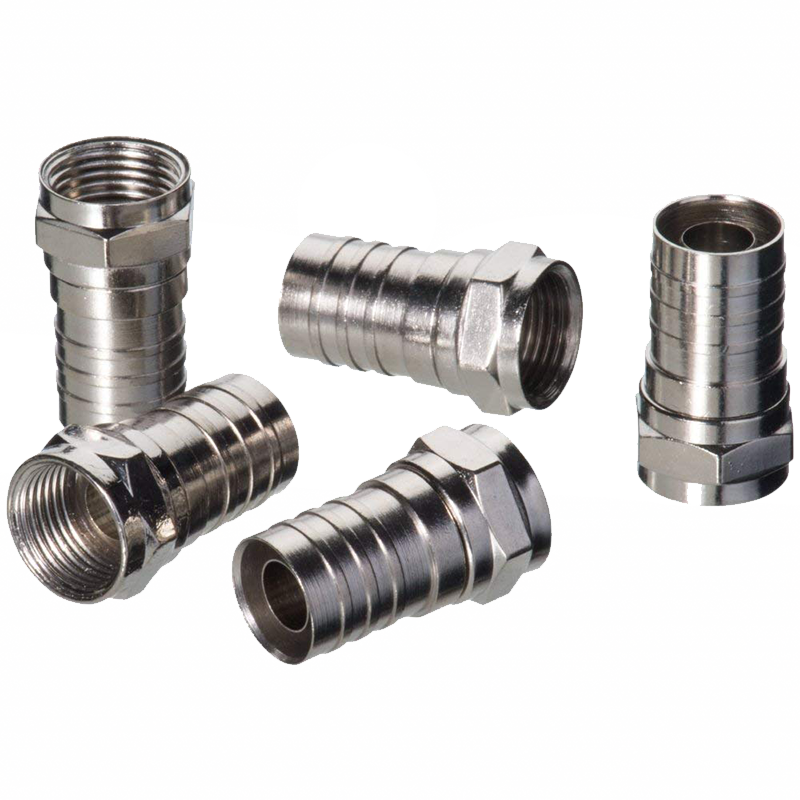

Ideal 85-037 RG-6 F Hex Crimp Connector - 10 Piece
Nickel plated brass crimp sleeve connectors are designed for indoor coax terminations for standard video and other RF applications. Connectors require crimping with a hex crimp tool to secure the connector to the cable. For outdoor or high performance F connectors see the RTQ™ series of compression connectors.
Connector Model: 6FCR
Accepts RG-6 coax cables
Designed for use in indoor video applications
Hex crimp cable retention, requires .320” hex crimp
Industry standard ¼” x ¼” cable preparation
Center conductor range: All
Dielectric diameter range: .175” - .183”
Outer jacket diameter range: .254” - .278”
Recommended cable prep/stripping tools: 45-605 PrepPRO™; 45-321
Recommended crimp tools: 30-503 Crimpmaster™ (30-582 dieset); 30-433
Nickel plated brass bodies
Designed for 75Ω coaxial cables
7/16” nut diameter with 3/8-32 thread
To use the connector:
1) Prepare RG-6 coax with a ¼” x ¼” strip, and fold back the braiding.
2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
3) Place connector in IDEAL crimp tool with .320” hex and terminate. Crimp only the back sleeve portion of the connector – not the nut or shoulder area of connector.
4) Attach connector to device.
