Klein Tools 3005CR Ratcheting Crimper, 10-22 AWG

$32.99
Free shipping
The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort... Read more

Overview

Brand img

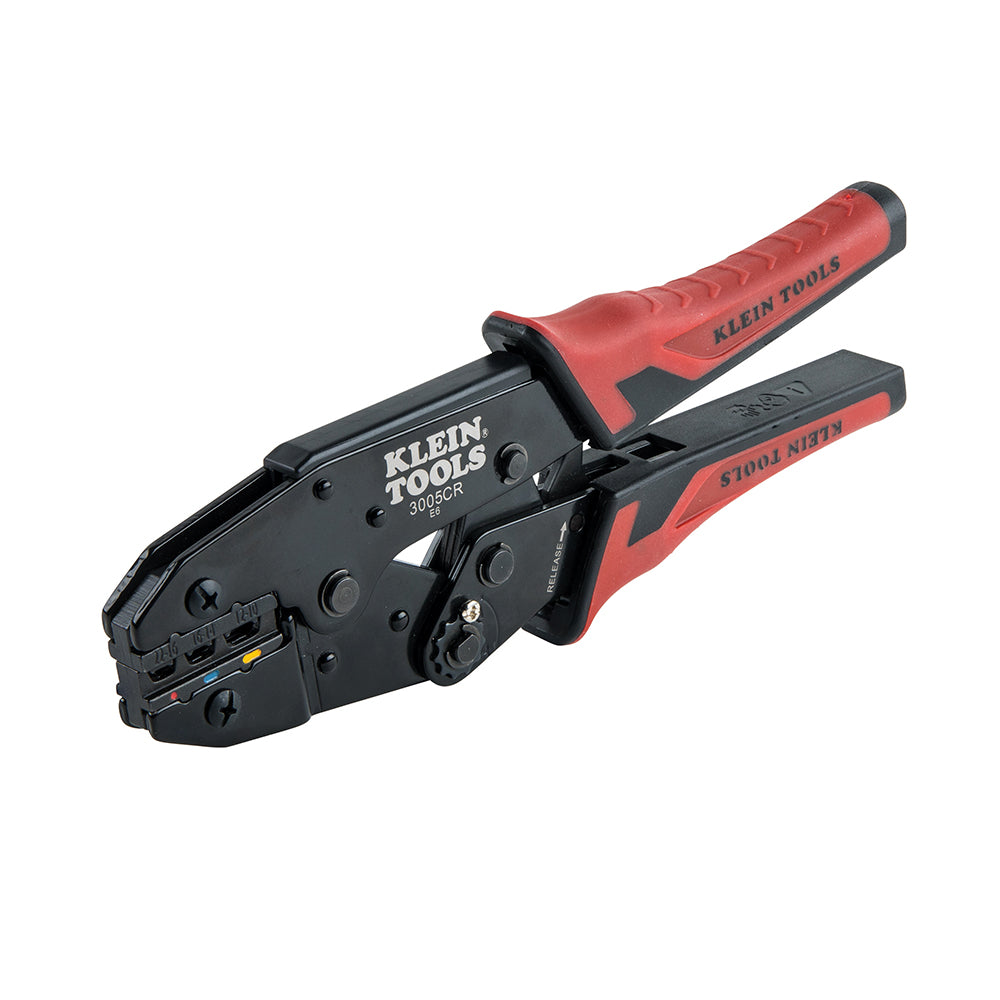

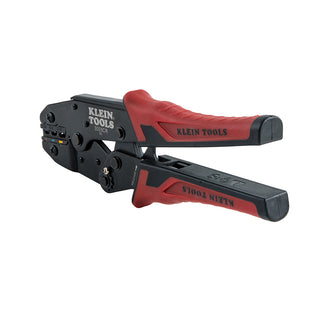

Klein Tools 3005CR Ratcheting Crimper, 10-22 AWG

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.



Crimp three different sizes with a single tool. Klein’s 3005CR crimps 22-16AWG, 16-14AWG and 12-10AWG and color coding helps keep it straight.

Perfect for right or left hand with no adjustment.

Integrated ratchet guarantees a solid crimp via full crimp cycle and adjustable compound action.


Product Details

General Information
Manufacturer
Klein Tools
Part Number
3005CR
Product Type
Crimper
Specifications
Color
Red and Black
Material
Steel
Size
Cable Size: 10-22 AWG Stranded
Length
9" (2.3 cm)
Width
3" (7.6 cm)
Height
0.09" (0.2 cm)
Weight
1.3 lb (0.6 kg)
Miscellaneous
Features
Crimps insulated terminals onto 10-22 AWG stranded copper wire
Adjustable compound action design puts more crimping power into each squeeze

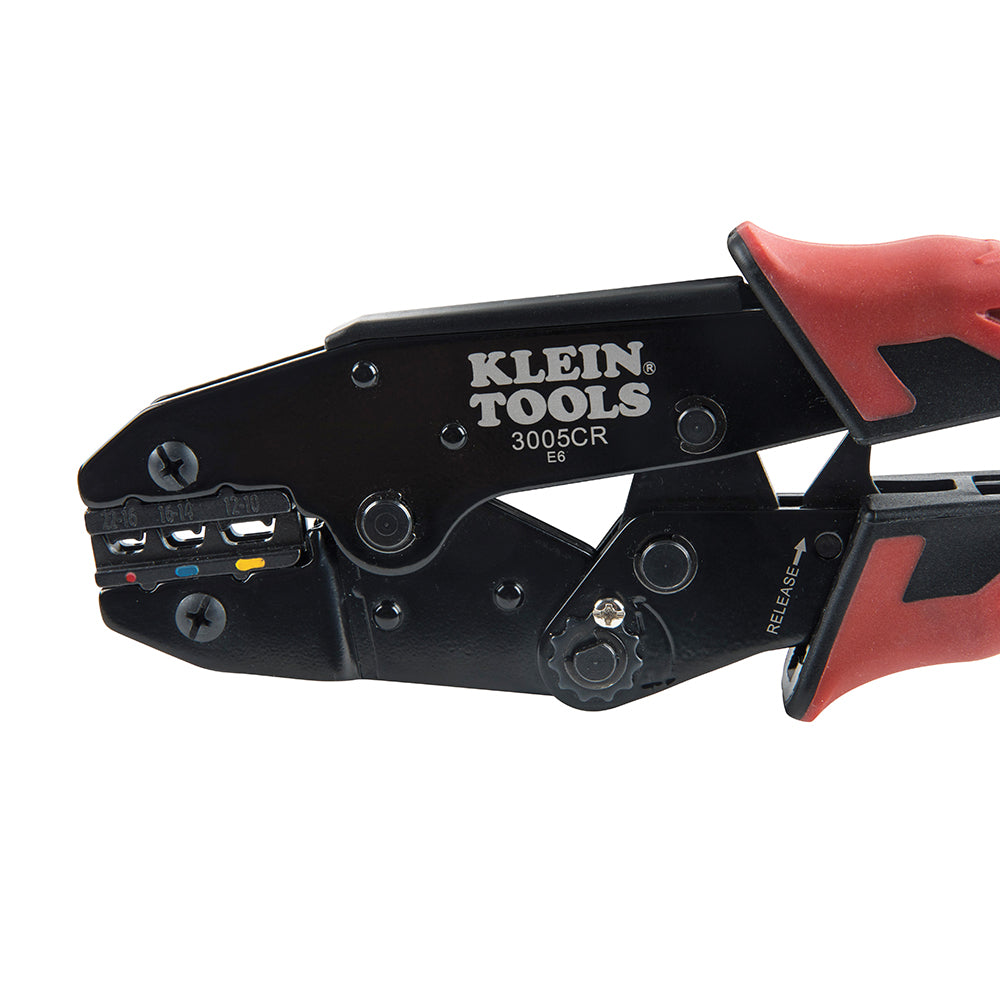

Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
Unique cavity design provides consistent crimp from either side of the tool
Dial adjusts the amount of force applied to the crimp
Dual-material molded grips provide added comfort

Resources


Product Video

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. Features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Learn more at http://www.kleintools.com/product/3005CR
