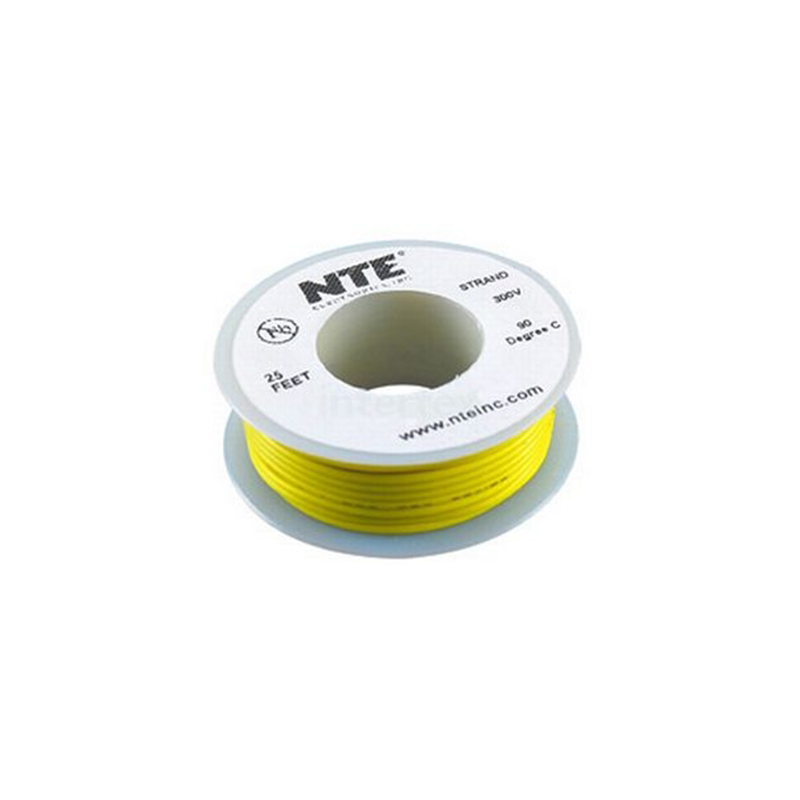

NTE Electronics WH16-04-25 Hook Up Wire 300V 16 Gauge Stranded 25' Yellow
-----> product

NTE Electronics WH16-04-25 Hook Up Wire 300V 16 Gauge Stranded 25' Yellow

by NTE Electronics
$10.43 - $10.43
$10.43
$10.43 - $10.43
$10.43
The WH16-04-25 from NTE Electronics is a stranded Hook-up Wire with 16AWG tin-plated copper conductor and a yellow PVC insulation. The WH series hook-up wire is ideal for internal wiring of electrical and electronic equipment,... Read more

Overview

Brand img

NTE Electronics WH16-04-25 Hook Up Wire 300V 16 Gauge Stranded 25' Yellow

The WH16-04-25 from NTE Electronics is a stranded Hook-up Wire with 16AWG tin-plated copper conductor and a yellow PVC insulation. The WH series hook-up wire is ideal for internal wiring of electrical and electronic equipment, panels, meters, computers, business machines, appliances, & control panels. Point-to-point wiring where 300V is required. 6 Amp Max.

Product Details

General Information
Manufacturer
NTE Electronics
Part Number
WH16-04-25
Cable Type
Hook-Up Wire
Physical Characteristics
Wire Gauge
16 AWG
Length
25' (7.62m)
Jacket Color
Yellow
Conductor Material
Tinned Copper
Insulation Material
Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness
1/64"
Conductor Strand
7 x 32
Specifications
Voltage Rating
300 V
Maximum Temperature
90° C
RoHS
Compliant
Ratings
UL Style 1007, UL VW-1, CSA TR-64-1569, OSHA Acceptable
Packaging
Spool
Weight (Approximate)
5 ounces
