NTE Electronics WH20-00-1000 Hook Up Wire 300V 20 Gauge Stranded 1000' Black
-----> product

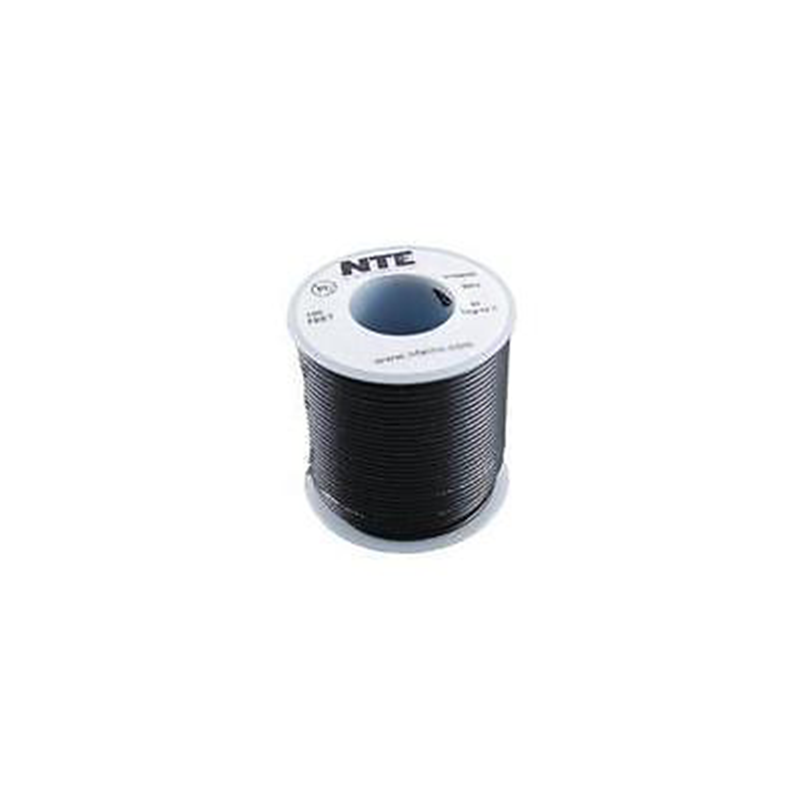

NTE Electronics WH20-00-1000 Hook Up Wire 300V 20 Gauge Stranded 1000' Black

by NTE Electronics
$89.99 - $89.99
$89.99
$89.99 - $89.99
$89.99
Free shipping
The WH20-00-1000 from NTE Electronics is a stranded Hook-up Wire with 20AWG tin-plated copper conductor and a black PVC insulation. The WH series hook-up wire is ideal for internal wiring of electrical and electronic equipment,... Read more

Overview

Brand img

NTE Electronics WH20-00-1000 Hook Up Wire 300V 20 Gauge Stranded 1000' Black

The WH20-00-1000 from NTE Electronics is a stranded Hook-up Wire with 20AWG tin-plated copper conductor and a black PVC insulation. The WH series hook-up wire is ideal for internal wiring of electrical and electronic equipment, panels, meters, computers, business machines, appliances, & control panels. Point-to-point wiring where 300V is required. 6 Amp Max.

Product Details

General Information
Manufacturer
NTE Electronics
Part Number
WH20-00-1000
Cable Type
Hook-Up Wire
California Residents
Proposition 65 Warning
Physical Characteristics
Wire Gauge
20 AWG
Length
1000' (304.8m)
Jacket Color
Black
Conductor Material
Tinned Copper
Insulation Material
Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness
1/64"
Conductor Strand
7 x 32
Specifications
Voltage Rating
300 V
Maximum Temperature
90° C
RoHS
Compliant
Ratings
UL Style 1007, UL VW-1, CSA TR-64-1569, OSHA Acceptable
Packaging
Spool
Weight (Approximate)
4.6 pounds
