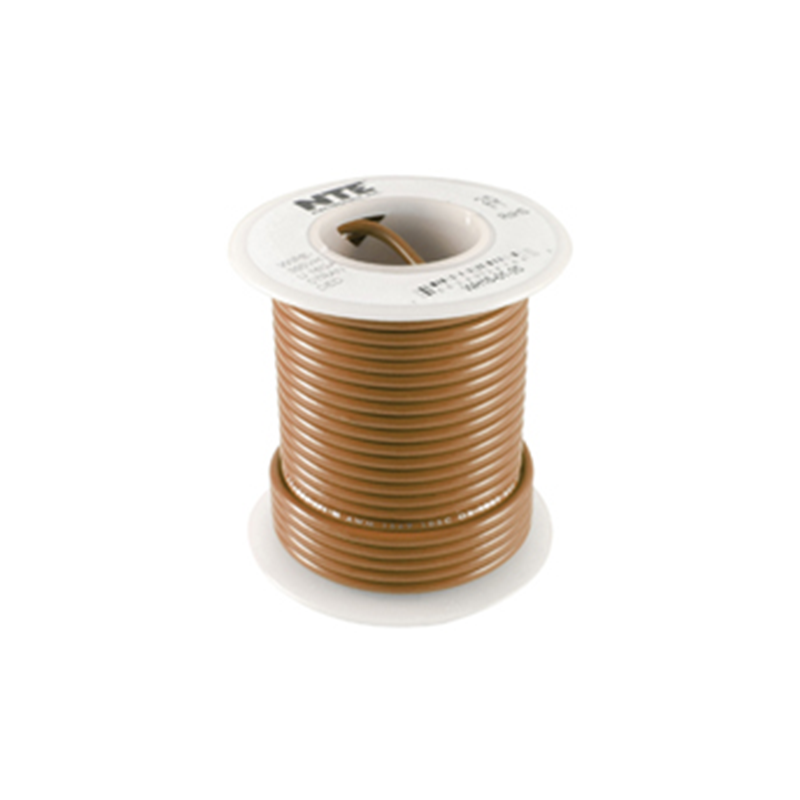

NTE Electronics WH24-01-100 Hook Up Wire Stranded Type 24 Gauge 100' Brown

No reviews
Original price $11.80 - Original price $11.80
Original price
$11.80
$11.80 - $11.80
Current price $11.80
Free shipping
The WH24-01-100 from NTE Electronics is a stranded Hook-up Wire with 24AWG tin-plated copper conductor and a Brown PVC insulation. The WH series hook-up wire is ideal for internal wiring of electrical and electronic equipment,... Read more

Overview

NTE Electronics

NTE Electronics WH24-01-100 Hook Up Wire Stranded Type 24 Gauge 100' Brown

The WH24-01-100 from NTE Electronics is a stranded Hook-up Wire with 24AWG tin-plated copper conductor and a Brown PVC insulation. The WH series hook-up wire is ideal for internal wiring of electrical and electronic equipment, panels, meters, computers, business machines, appliances, & control panels. Point-to-point wiring where 300V is required. 6 Amp Max.

Product Details

General Information
Manufacturer
NTE Electronics
Part Number
WH24-01-100
Cable Type
Hook-Up Wire
California Residents
Physical Characteristics
Wire Gauge
24 AWG
Length
100' (30.5m)
Jacket Color
Brown
Conductor Material
Tinned Copper
Insulation Material
Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness
1/64"
Conductor Strand
7 x 32
Specifications
Voltage Rating
300 V
Maximum Temperature
90° C
RoHS
Compliant
Ratings
UL Style 1007, UL VW-1, CSA TR-64-1569, OSHA Acceptable
Packaging
Spool
Weight (Approximate)
5.6 ounces
