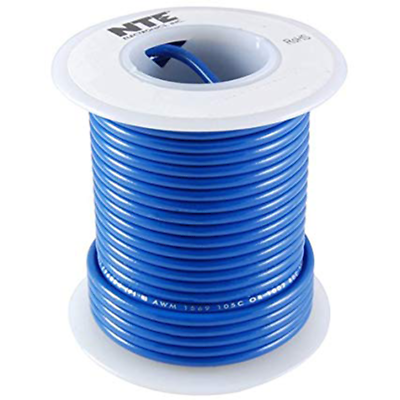

NTE WH614-06-25 Hook Up Wire 600V Stranded Type 14 Gauge 25 FT BLUE

Original price $12.43 - Original price $12.43
Original price
$12.43
$12.43 - $12.43
Current price $12.43
Free shipping
APPLICATIONS:    Internal wiring of electrical, electronic equipment and machinery    Internal wiring of panels and meters    Point-to-point wiring where 600V is required    15 Amp max.FEATURES:    Available in 18, 16, 14, 12, & 10 AWG    Tin plated... Read more

Overview

Brand img

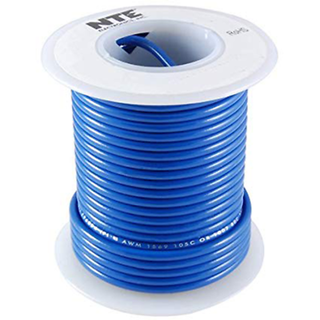

NTE WH614-06-25 Hook Up Wire 600V Stranded Type 14 Gauge 25 FT BLUE


APPLICATIONS:

    Internal wiring of electrical, electronic equipment and machinery
    Internal wiring of panels and meters
    Point-to-point wiring where 600V is required
    15 Amp max.

FEATURES:

    Available in 18, 16, 14, 12, & 10 AWG
    Tin plated copper conductor
    18 AWG is 16 strand, 16 AWG is 26 strand,
    14 AWG is 41 strand, 12 AWG is 65 strand,
    10 AWG is 105 strand
    Insulation thickness = 1/32"
    UL Style 1015
    CSA type TEW
    Passes UL VW-1.S vertical flame test
    OSHA acceptable

SPECIFICATIONS:

    Voltage Rating:  600 Volts
    Insulation:  P.V.C.
    Max. Temperature:  105°C
    Colors:  Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
    Spools:  25 and 100 feet

Product Details

General Information
Manufacturer
NTE Electronics
Part Number
WH614-06-25
Product Type
Hook-up Wire
