About this item

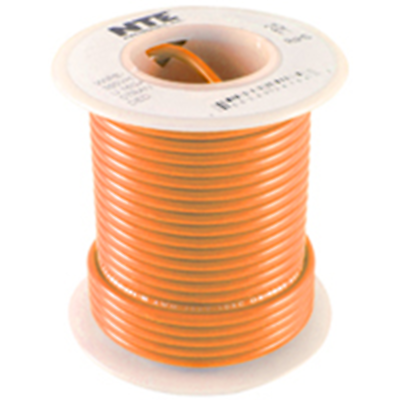

NTE WHS24-03-100 Hook Up Wire 300V Solid Type 24 Gauge 100 FT ORANGE
- WHS24-03-100
- NTE Electronics
- Hook-up Wire
Downloads
No files available.
Description
APPLICATIONS:
Internal wiring of electrical and electronic equipment
Internal wiring of panels, meters, computers, business machines, appliances, & control panels
Point-to-point wiring where 300V is required
FEATURES:
Available in 26, 24, 22, 20, 18, & 16 AWG
Tin plated solid copper conductor
Insulation thickness = 1/64"
UL Style 1007
CSA TR-64-1569
Passes UL VW-1.S vertical flame test
OSHA acceptable
SPECIFICATIONS:
Voltage Rating: 300 Volts
Insulation: P.V.C.
Max. Temperature: 90°C
Colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White
Spools: 25 and 100 feet
