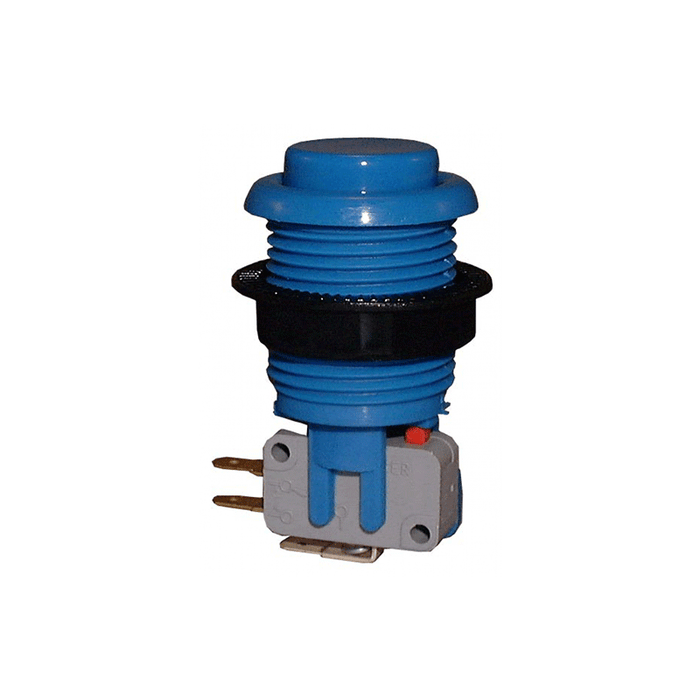

Philmore 30-783 Video Game Push Button Assembly w/Switch, Blue

Features

This is a big, rugged switch assembly that was originally designed for video games and computer games, where the action is hard and frequent. The plastic button assembly is designed to accommodate any number of snap action switches; refer to the drawing of Philmore 30-2000 (in catalog) for dimensions. Switches simply snap into place in the separate assembly, or purchase a unit complete with switch.The complete assembly, including switch, is supplied with a miniature snap action MOMENTARY 10A 250VAC switch with a very light action; only 75 grams of pressure is required to activate vs, an average of more than 125 grams for most switches of this design. The switch is protected from over - pressure by the push button assembly. Available in six colors, with or without 10 amp switch.
